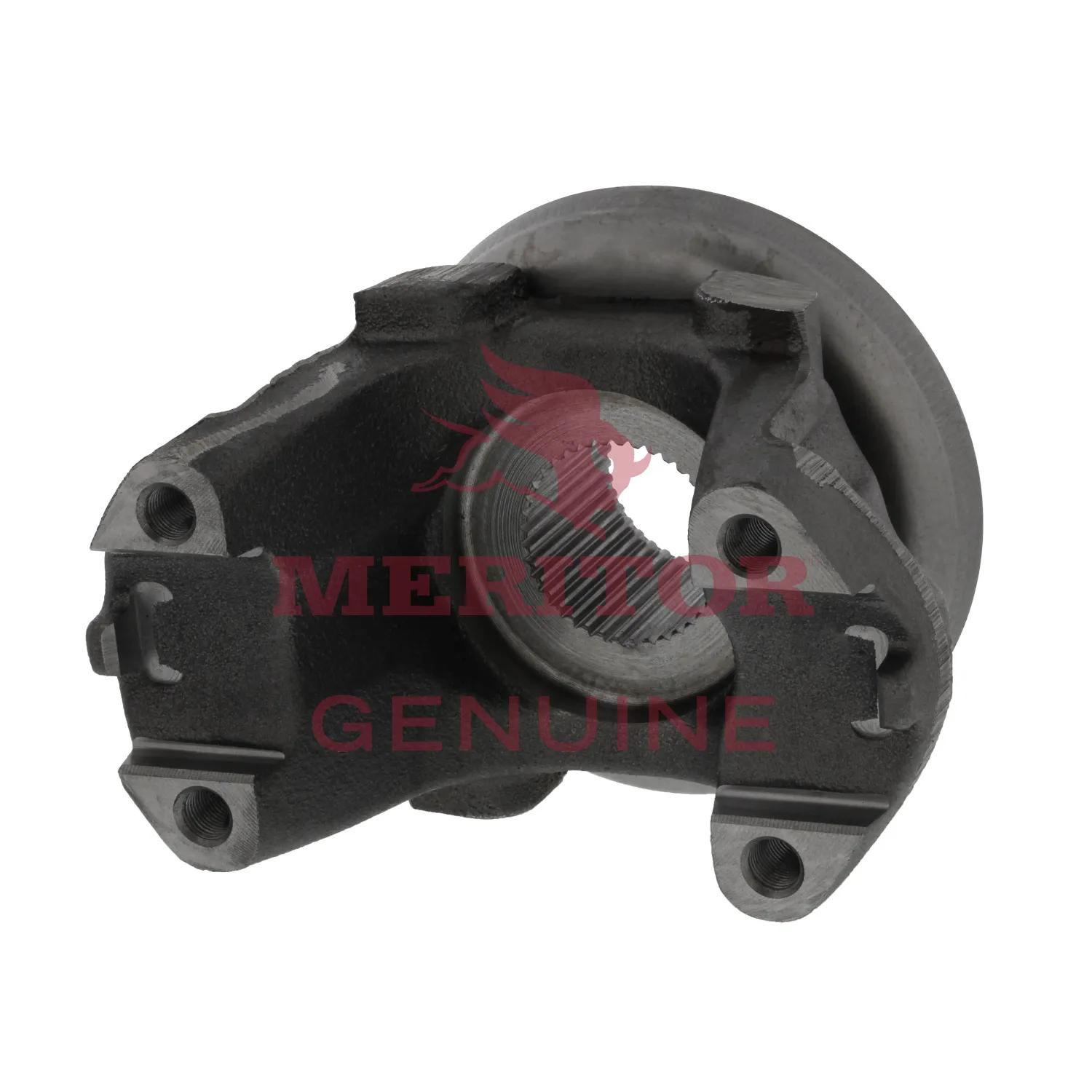

END YOKE
#ROC20WYS322A
Features & Benefits
- Enhances vehicle's drivetrain efficiency for optimal performance
- Provides reliable power transmission from the engine to the wheels
- Ensures secure connection between the driveshaft and universal joint
Specifications
| Bearing Cap Diameter | 2-1/16 in (5.23 cm) |
| Face To End (in.) | 5-61/64 in (15,13 cm) |
| Hub Diameter | 3 in (7,62 cm) |
| Joint Angle | 45 deg |
| Number of Splines | 39 |
| Series | RPL20 |
| Spline Diameter | 2-1/32 in (5.16 cm) |
| Spline Diameter-Spline Count | 2-1/32 in - 39 |
| Spline Length (in.) (L) | 2.31 |
| Type | Splined Hole Yoke |
| UPC | 737238797579 |
| VMRS Code | 024-001-003 |
| Yoke Dim Across Ears | 7-1/16 in (17,95 cm) |
| Yoke Type | Winged |
Interchanges & Equivalent parts:
| 20504478 |
| 20WYS32-2A |
| 20WYS322A-RI |
| 8235-20WYS322A |
| ATI20WYS322A |
| S-19116 |
| TDA 20WYS32 2A |
| TDA20WYS322A |
| 20WYS322A |
