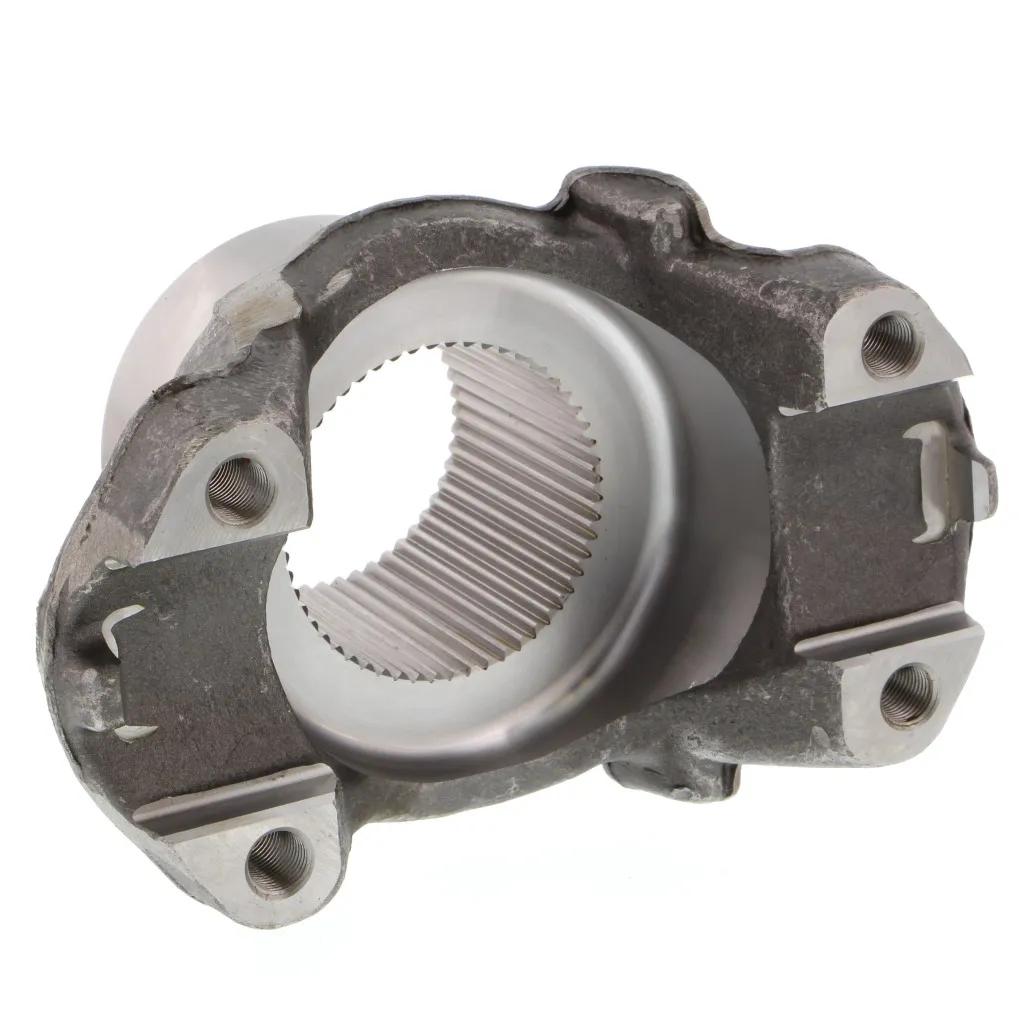

END YOKE
#ROC20WYS45
Specifications
| Bearing Cap Diameter | 2-1/16 in |
| Center Line to End of Hub | 12-23/32 in |
| Face To End (in.) | 5-1/4 in (13,34 cm) |
| Hub Diameter | 3-3/4 in |
| Insert Diameter (in.) | 2-19/32 in |
| Joint Angle | 24 deg |
| Length of Hole (in.) | 9-5/8 in (24,45 cm) |
| Number of Splines | 54 |
| Series | RPL20 |
| Spline Diameter | 2-51/64 in |
| Spline Diameter-Spline Count | 2-51/64 in - 54 |
| Type | Splined Hole Yoke |
| Unit Pack | 1 |
| Use W/ Tubing OD And Wall | 4-1/2 in (11,43 cm) x 9/64 in (0,36 cm), (10 GA) |
| VMRS Code | 024-001-003 |
| Yoke Dim Across Ears | 7-1/16 in (17,95 cm) |
| Yoke Type | Winged |
| Height | 7-45/64 in |
Interchanges & Equivalent parts:
| 20504472 |
| 20WYS45-RI |
| 25171630 |
| 5505581 |
| 8235-20WYS45 |
| ATI20WYS45 |
| S-17724 |
| TDA 20WYS45 |
| TDA20WYS45 |
