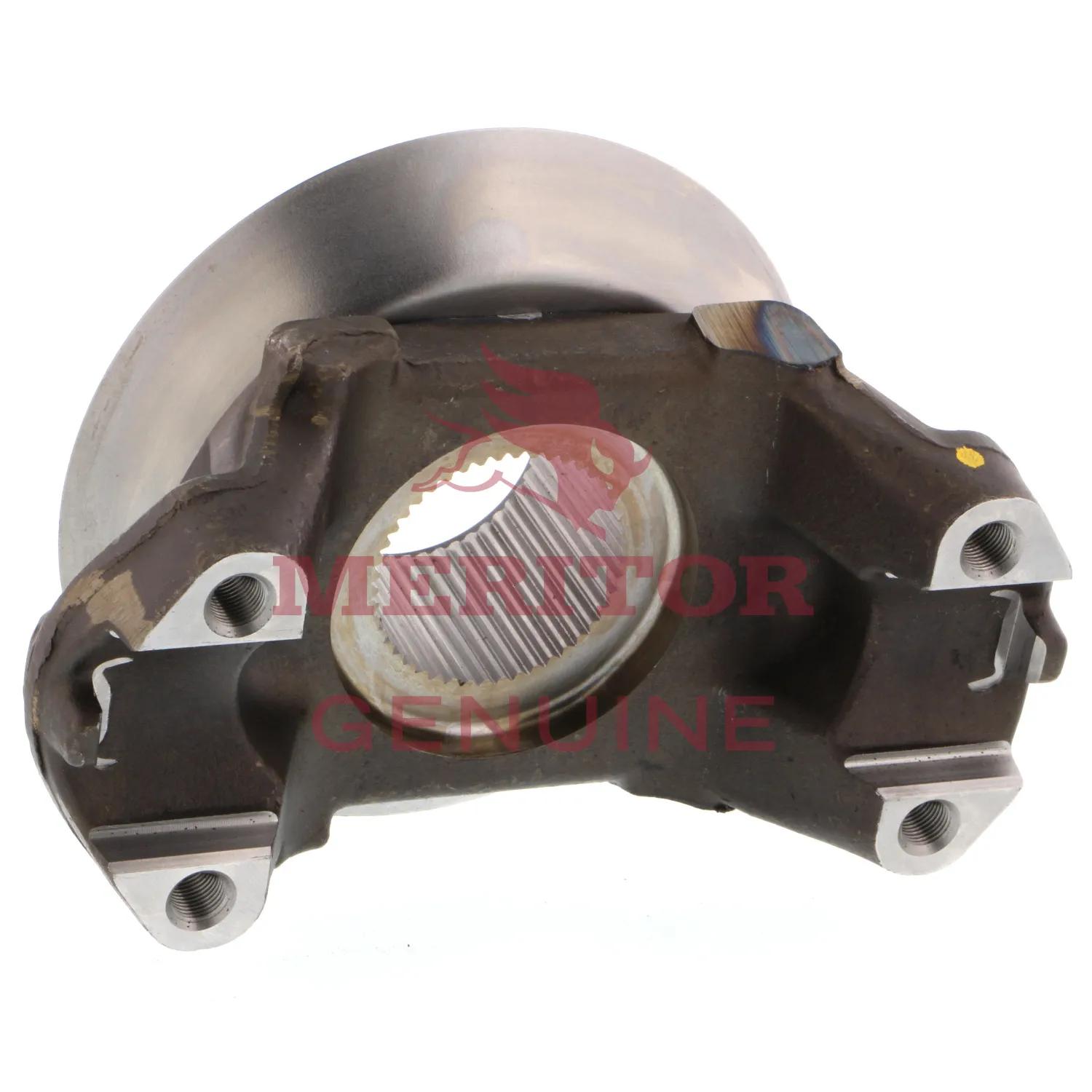

END YOKE
#ROC25WYS3813A
Features & Benefits
- Enhances vehicle's drivetrain efficiency for optimal performance
- Provides reliable power transmission from the engine to the wheels
- Ensures secure connection between the driveshaft and universal joint
Specifications
| Bearing Cap Diameter | 2-1/16 in |
| Face To End (in.) | 4-47/64 in (12,03 cm) |
| Hub Diameter | 3-1/4 in |
| Joint Angle | 30 deg |
| Number of Splines | 46 |
| Series | RPL25 |
| Spline Diameter | 2-25/64 in |
| Spline Diameter-Spline Count | 2-25/64 in - 46 |
| Spline Length (in.) (L) | 2.32 |
| Type | Splined Hole Yoke |
| UPC | 680502142783 |
| VMRS Code | 024-001-003 |
| Yoke Dim Across Ears | 8-3/8 in (21,28 cm) |
| Height | 7-5/32 in |
Interchanges & Equivalent parts:
| 20504508 |
| 2501145C91 |
| 25WYS38-13A |
| 25WYS38-3A |
| 25WYS3813A-RI |
| 25WYS381A |
| 8235-25WYS3813A |
| ATI25WYS3813A |
| S-18364 |
| TDA 25WYS38 13A |
| TDA25WYS3813A |
| 25WYS3813A |
| 25WYS38 |
| MBA6813500544 |
| 6813500544 |
