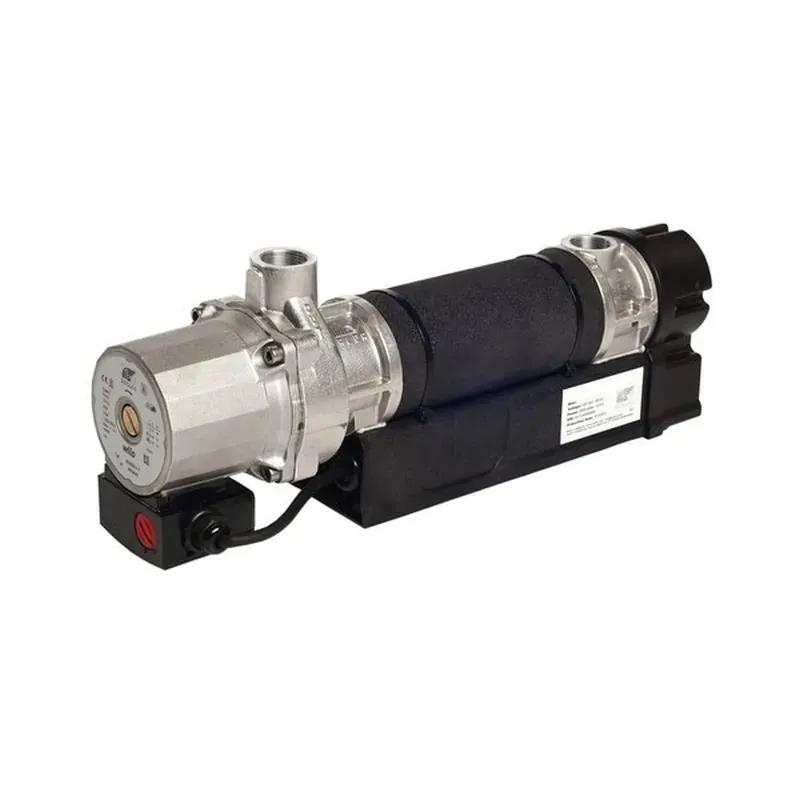

Engine Heater, Electric Coolant, BSP/NPT Inlet, BSP/NPT Outlet, D - NEMA 6-20 Plug, Die-Cast Aluminum
#TEMTSG208130MCTS22
Product Overview
The TopStart is an electric coolant engine heater with an integrated pump for midsize engines.Engine Heater, Electric Coolant, BSP/NPT Inlet, BSP/NPT Outlet, D - NEMA 6-20 Plug, Die-Cast Aluminum, 7 to 8.8 gpm at 4.7 psi Flow Rate, 60 Hz, 3/4 in Inlet, 3/4 in Outlet, 1 Phase, 3000 W, UL/CE, 32 to 176 °F Regulating, 230 °F Safety, 208 V, For Gensets, Large Equipment, 415 mm Length, 100 mm Width, 163 mm Height
Features & Benefits
- Die cast aluminum body
- PA66 electrical cover and supports base
- Glandless circulation pump
- Flow rate: 1.6 to 2 cu-m/h to 3 m height manometer (7 to 8.8 gpm at 4.7 psi)
- Available power 0.5 to 4 kw 120, 208, 230 and 240 V 50 or 60 hz
- 1 and 3 phase
- Adjustable, regulating thermostat 32 to 176 °F (0 to 80 °C)
- Safety thermostat 230 °F (110 °C), manual reset rated at 25 A
- 4.9 ft (150 cm) power cable
- Mounting and connection (3/4 in NPT or BSP) kit included
Specifications
| Length | 415 mm |
| Phase | 1 |
| Temperature Range | 32 to 176 °F Regulating, 230 °F Safety |
| Type | Electric Coolant |
| Application | Gensets, Large Equipment |
| Flow Rate | 7 to 8.8 gpm at 4.7 psi |
| Frequency | 60 Hz |
| Height | 163 mm |
| Inlet Size | 3/4 in |
| Inlet Type | BSP/NPT |
| Material | Die-Cast Aluminum |
| Outlet Type | BSP/NPT |
| Outlet Size | 3/4 in |
| Plug Type | D - NEMA 6-20 |
| Power Rating | 3000 W |
| Standards | UL/CE |
| Voltage Rating | 208 V |
| Width | 100 mm |
| Manufacturer Part Number | TSG208130MCTS22 |
| Product Category | Engine Heater |
