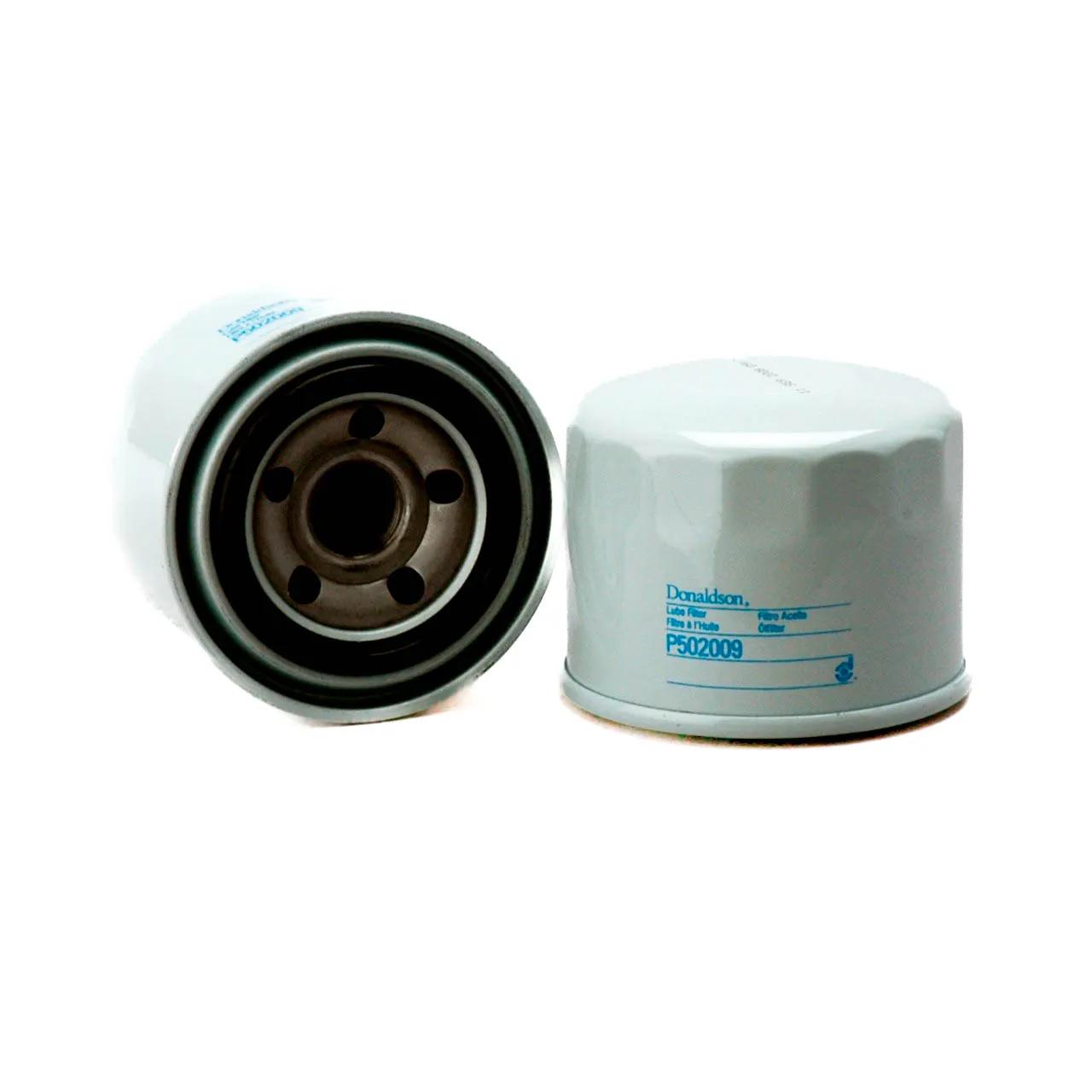

Engine Oil Filter, Spin-On L: 2,52 in, Thread : M20 x 1,5 , OD: 3,15 in
#DONP502009
Product Overview
LUBE FILTER, SPIN-ON FULL FLOW
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
Specifications
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 1.2 bar |
| Bypass Valve Setting LR | 0.8 bar |
| Diameter Range | 3 to 3.99 in |
| Efficiency 50% | 20 Micron |
| Efficiency Test Std | JIS D 1611 |
| Gasket ID | 2.03 in (51.6 mm) |
| Gasket OD | 2.48 in (63 mm) |
| Length | 2.52 in (64.1 mm) |
| Outer Diameter | 3.15 in (80.01 mm) |
| Length Range | 2 to 2.99 in |
| Style | Spin-On |
| Thread Size | M20 x 1.5 |
| Type | Full-Flow |
| Vehicle Make | Mitsubishi |
Interchanges & Equivalent parts:
| H13W01 |
| 1334 |
| A4056 |
| C1013 |
| SP5260 |
| SFO6466 |
| MA30A4000100 |
| A218226 |
| 15607005 |
| 15607411 |
| FMS2120 |
| 2630035503 |
| OC230 |
| 30A4000101 |
| 30A4000105 |
| 3414070100 |
| MD133737 |
| MD136466 |
| 73184193 |
| 2906684 |
| 60206774 |
| 330560537 |
| C331 |
| LF502009 |
| 0451103316 |
| 1381 |
| 15241-3209-1 |
| 1524132092 |
| 1524132093 |
| 15372-87212 |
| 156072060 |
| 1584132430 |
| 1627132090 |
| 2191-P502009 |
| 30401-3758-1 |
| 3040137580 |
| 51381 |
| 91381 |
| B173-S |
| DONP502009 |
| FIL1381 |
| LF3644 |
| LF3644FLG |
| NFI91381 |
| PH3950 |
| S156072060 |
| W81180 |
| WL7171 |
| 7384298 |
| DN P502009 |
| DN P502009 |
| LF136 |
| SFO5150 |
| HP-1015 |
| C-6811 |
| 46549580 |
| PPL10193 |
| P10479 |
| 831-038C |
| WIX51334 |
| V5566 |
| 5001-549619 |
| HM-1010 |
| DOF4612 |
| M4612SP |
| KN-196 |
| 11521002 |
| OF16817 |
| P4612 |
| MOPH6607 |
| 1BP00937AA |
| MO4615 |
| PZ-25 |
| PH2876 |
| LF565F |
| PG193 |
| R85381 |
| QS2856 |
| SFO4460S |
| PH2856A |
| M1-108 |
| QS3950 |
| SFO3593 |
| SO-1008 |
| PF1237 |
| CL6607 |
| 356753 |
| PZ-106 |
| LF565 |
| PG193F |
| PZ-24 |
| B7243 |
| SFO4459 |
| SDF44 |
| QS3562 |
| TF2876 |
| 85381 |
| PO193 |
| M193 |
| S3950 |
| L3320 |
| COS3950 |
| 3320 |
| 10-2876 |
| CAS6607 |
| EA15K12 |
| 51334 |
| PO-106 |
| OF4622 |
| 451103316 |
