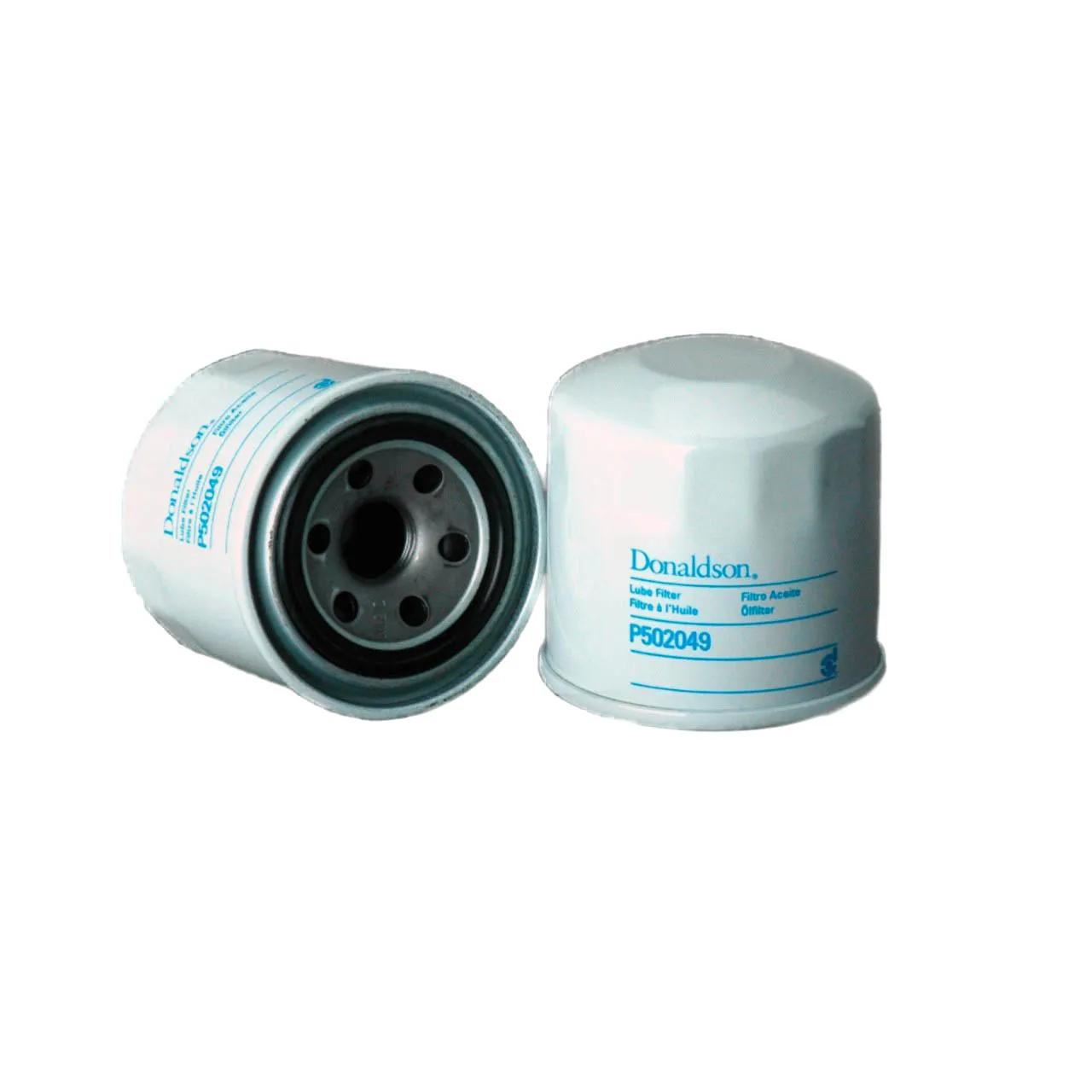

Engine Oil Filter, Spin-On L: 3,15 in, Thread : M20 x 1,5 , OD: 3,15 in
#DONP502049
Product Overview
LUBE FILTER, SPIN-ON FULL FLOW
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
Specifications
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 1.17 bar |
| Bypass Valve Setting LR | 0.76 bar |
| Diameter Range | 3 to 3.99 in |
| Efficiency 50% | 20 Micron |
| Efficiency Test Std | JIS D 1611 |
| Gasket ID | 2.01 in (51.1 mm) |
| Gasket OD | 2.48 in (63 mm) |
| Length | 3.15 in (80.1 mm) |
| Outer Diameter | 3.15 in (80.01 mm) |
| Length Range | 3 to 3.99 in |
| Style | Spin-On |
| Thread Size | M20 x 1.5 |
| Type | Full-Flow |
| Vehicle Make | Honda |
Interchanges & Equivalent parts:
| P502049 |
| 1347 |
| WL7107 |
| B227 |
| DOF3403 |
| LF236 |
| H90W25 |
| W81883 |
| W91414 |
| C16051 |
| C16052 |
| C1605 |
| SFO0459 |
| OC12040 |
| E520532091 |
| FMS2102 |
| FT5447 |
| 15400PH9004 |
| 15400PR3000 |
| 15400PR3003 |
| 15400PR3004 |
| 15400PR9004 |
| 8E20 |
| T55 |
| S3243R |
| 2324300 |
| C341 |
| C307 |
| 51334XP |
| 41334 |
| ABP N10G LF3462 |
| DN P502049 |
| DN P502049 |
| 364100-046 |
| 2191-P502049 |
| 51347 |
| 91334 |
| B1421 |
| DG3593A |
| DONP502049 |
| FIL1334 |
| LF3462 |
| LF3462FLG |
| LF402 |
| NFI91334 |
| FE00229 |
| C-6811 |
| 7006948 |
| BF321 |
| 1AML00026A |
| 2133MP |
| PZI-33 |
| M4612SP |
| YM11900535151 |
| LF-2903 |
| P10479 |
| WIX51334 |
| HP-1015 |
| 4181988 |
| KN-202 |
| MW810 |
| LS40006977 |
| HM-1004 |
| SL4459 |
| 15410-ZJA-99AH |
| P4612 |
| MOPH9688 |
| 15841-32439 |
| M4455SP |
| 1BP00937AA |
| YF1-52413-20-90 |
| MGL51344 |
| 11521002 |
| MOBM1104 |
| HF202 |
| OF4459BP |
| D |
| PO4459 |
| 10-2808 |
| R85334 |
| SFO4460S |
| M1-104 |
| PG4459 |
| TF2808 |
| PG4459F |
| 72228WS |
| 3312 |
| M10479 |
| LF402F |
| CAS3593 |
| PG4459BF |
| PO-37 |
| FS3593A |
| L3312 |
| PH2808 |
| R85334MP |
| 331916 |
| QS3593A |
| QS14612 |
| PH3593A |
| M1-104A |
| SDF20 |
| MPH3593A |
| PF1127 |
| SFO3593 |
| COS3593A |
| 85334MP |
| 61334X |
| SO-1004 |
| PO-33 |
| HPZ-37 |
| 85334 |
| PZ-37 |
| PZ-23 |
| 85381HD |
| 51334 |
| CL3593A |
| CPH3593A |
| 1AMFL00026 |
| OF4459 |
| S2808 |
| PPG4459 |
| EA15K20 |
| M1MC-134 |
| SFO4459 |
