Engine Oil Filter, Spin-On L: 4,73 in, Thread : 3/4-16 UN , OD: 2,99 in

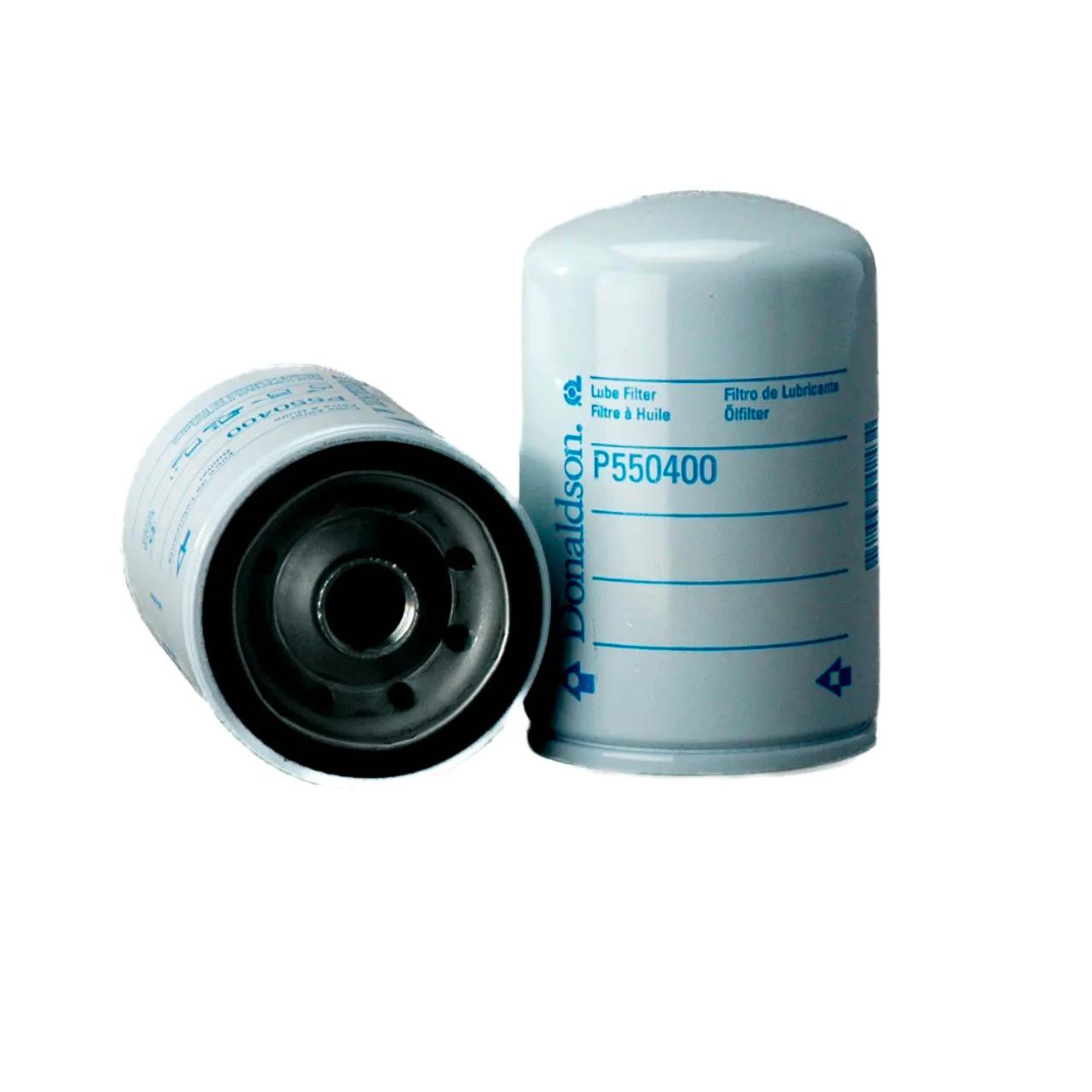

#DONP550400
Product Overview
Why Choose Donaldson Lube Filters?
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
Specifications
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 0.7 bar |
| Bypass Valve Setting LR | 0.5 bar |
| Diameter Range | 2 to 2.99 in |
| Efficiency 50% | 25 Micron |
| Efficiency 99% | 40 Micron |
| Efficiency Test Std | SAE J1858 |
| Gasket ID | 2.36 in (60 mm) |
| Gasket OD | 2.76 in (70.2 mm) |
| Length | 4.73 in (120.2 mm) |
| Outer Diameter | 2.99 in (75.95 mm) |
| Length Range | 4 to 4.99 in |
| Style | Spin-On |
| Thread Size | 3/4-16 UN |
| Type | Full-Flow |
Interchanges & Equivalent parts:
| ABPN10GLF3339 |
| B145 |
| B197 |
| B243 |
| B7020 |
| P406 |
| R85516MP |
| 84301 |
| 85214 |
| 85516 |
| 85516MP |
| 85762 |
| OF11 |
| PH28 |
| PH400 |
| PH561 |
| PH7024 |
| 1150104830 |

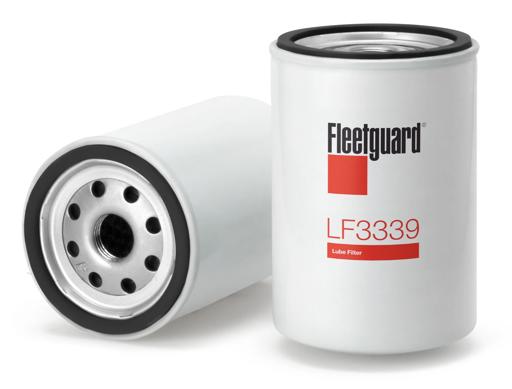

| LF3339 |
| LFR83339 |
| LFR8655 |
| CH6068 |
| DG3600 |
| PH28A |
| PH2926 |
| PH3600 |
| PH3600A |
| PH3600FP |
| TG3600 |
| XG3600 |
| GP3600 |
| 134 |
| LF134 |
| LF589 |
| H14W04 |
| H14W10 |
| H14W23 |
| SO3339 |
| L109 |
| L73 |
| W71927 |
| MGL3600 |
| MO3600 |
| FL276 |
| FL400 |
| FL400A |
| FL400S |
| FLE277 |
| 1214 |
| 1516 |
| 1516MP |
| 1762 |
| 21516 |
| 21516MP |
| 7301 |
| A372 |
| A516 |
| L20089 |
| L20195 |
| L35098 |
| ML36830 |
| P195 |
| PER195 |
| PER89 |
| PL20064 |
| PL20195 |
| C1909 |
| OF195 |
| SP4498 |
| S0400 |
| S3600 |
| SO400 |
| STP400 |
| 51214 |
| 51516 |
| 51516MP |
| 51762 |
| 57301 |
| PC318P |
| WL7077 |
| PFL400A |
| 2067272 |
| 2064 |
| 836 |
| 846 |
| 92516 |
| 92762 |
| 92764 |
| EAO34 |
| SDF34 |
| F18 |
| FE215 |
| FE142 |
| CF213AP |
| A16 |
| A17 |
| E6859 |
| 82214 |
| 92516MP |
| 6647672 |
| 277233 |
| 3422 |
| 451103052 |
| 451103074 |
| 451103110 |
| 72143 |
| OF143 |
| P3074 |
| P3110 |
| 451103259 |
| B195 |
| C195 |
| OF3600 |
| E1FZ6731A |
| CF213 |
| 3I1174 |
| 3I1264 |
| 3I1303 |
| 9Y4459 |
| 4781452AA |
| 4781452BB |
| 83200000 |
| 6512143 |
| 6512491 |
| PC302MIC25 |
| CN400 |
| PL13 |
| LSF5133 |
| 2093 |
| 342 |
| 414 |
| WD342 |
| FL400SB12 |
| F4FZ6731-AB |
