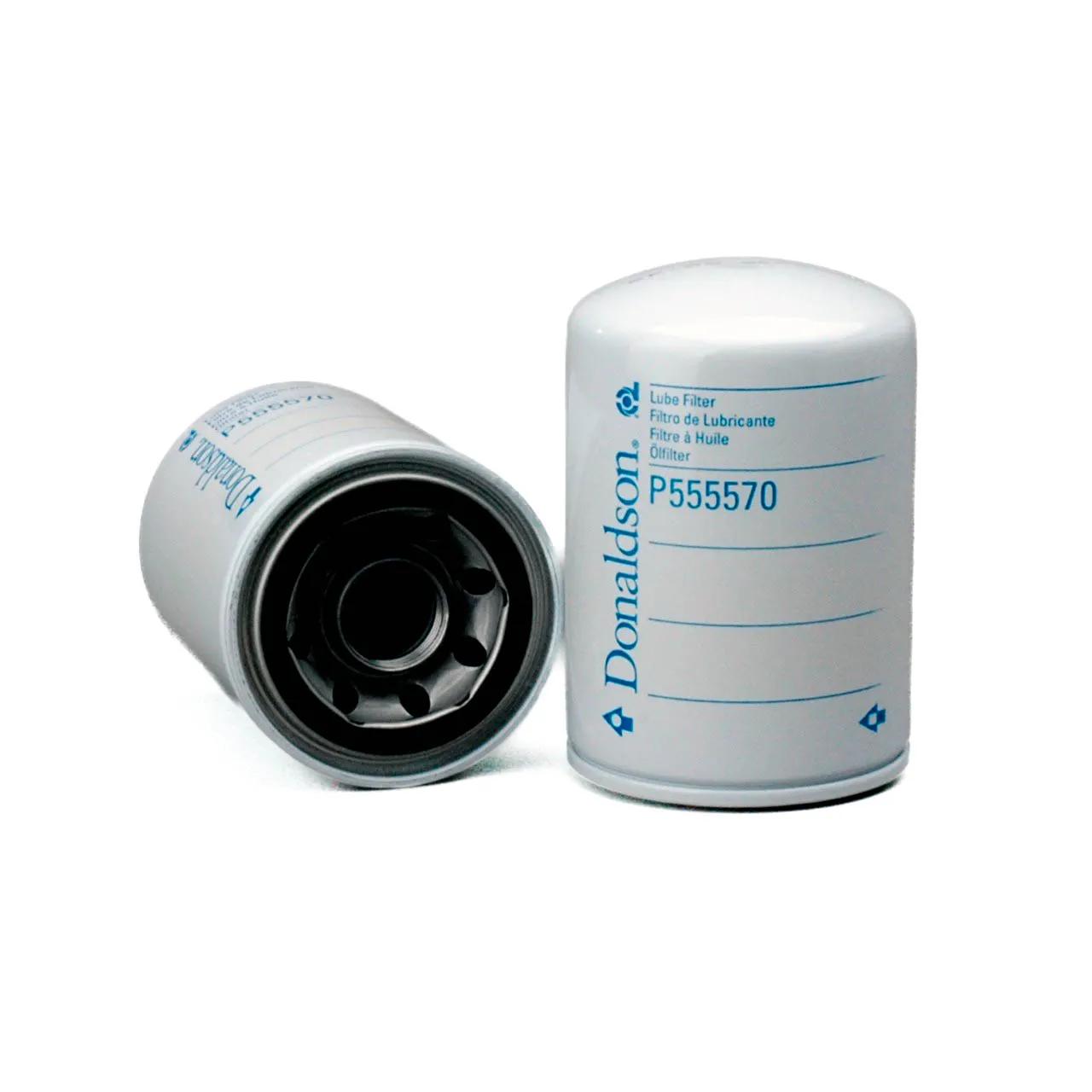

Engine Oil Filter, Spin-On L: 5,24 in, Thread : 1 1/8-16 UN , OD: 3,82 in
#DONP555570
Product Overview
Why Choose Donaldson Lube Filters?
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
Specifications
| Diameter Range | 3 to 3.99 in |
| Efficiency 99% | 40 Micron |
| Engine Manufacturer | Caterpillar |
| Gasket ID | 2.4 in (61 mm) |
| Gasket OD | 2.8 in (71.2 mm) |
| Length | 5.24 in (133.1 mm) |
| Outer Diameter | 3.82 in (97.03 mm) |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | 1 1/8-16 UN |
| Type | Full-Flow |
Interchanges & Equivalent parts:
| 122061 |
| ABPN10GLF3342 |
| BT230 |
| 85268 |
| 85268MP |
| HO512 |
| LFP5570 |
| J8610586 |

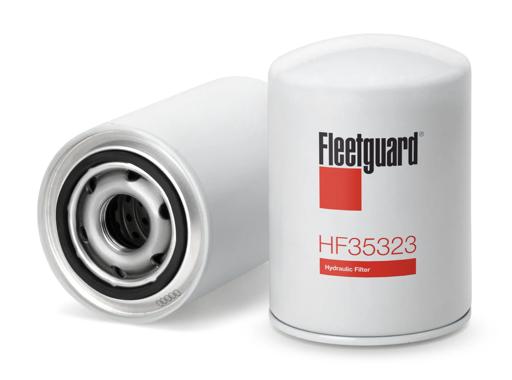

| HF35042 |
| HF35323 |
| LF3342 |
| LF766 |
| LFR83342 |
| LFR8766 |
| PH3519 |
| PH3519A |
| GP3986 |
| GP95 |
| GP9586 |
| GP9586L |
| FP364 |
| LF364 |
| P364 |
| A15010 |
| HDA15010 |
| H17W21 |
| SO3342 |
| KL61030 |
| L251 |
| LFH5323 |
| 1159088S01 |
| W9053 |
| W9293 |
| FL337 |
| FL337FP |
| FL802 |
| 1248 |
| 1268 |
| A9N5570 |
| L30215 |
| PER215 |
| HDZ209 |
| Z209 |
| C5503 |
| SP4492 |
| SFO9586 |
| OC87 |
| 51268 |
| 51268MP |
| 551268 |
| PF897 |
| PM1316 |
| 24897 |
| 1R0713 |
| 707419 |
| 303498409 |
| 701071 |
| 25011099 |
| 25011122 |
| OC21030 |
| 2068 |
| 92268 |
| 307605064 |
| 9N5570 |
| 92248 |
| 61325535 |
| AT79590 |
| D9HZ6731A |
| D9HZ6731B |
| P1850501 |
| 778190 |
| 1N3224 |
| 1W2638 |
| 3I0721 |
| 3I1327 |
| 6V5875 |
| 77190 |
| 8N9586 |
| 8N9856 |
| 8T7427 |
| 9N9586 |
| DO266 |
| LSF5015 |
| LSF5170 |
| Z85 |
| 2113 |
| 630 |
| WD630 |
| 752091 |
| 69016192 |
| D2NP555570 |
| FT4971 |
| 97520500234 |
| 9576P555570 |
| D9PJ6714AA |
| DNP555570 |
| 9030S |
| 9414100136 |
| G051268 |
| 349261040 |
| 349261041 |
| 349261041A |
| 52248895 |
| 57269433 |
| 8N9506 |
| 1551035110 |
| 3ED6641130 |
| 6636137950 |
| F |
| FL204US |
| HP-1018 |
| M1-304 |
| 10701023 |
