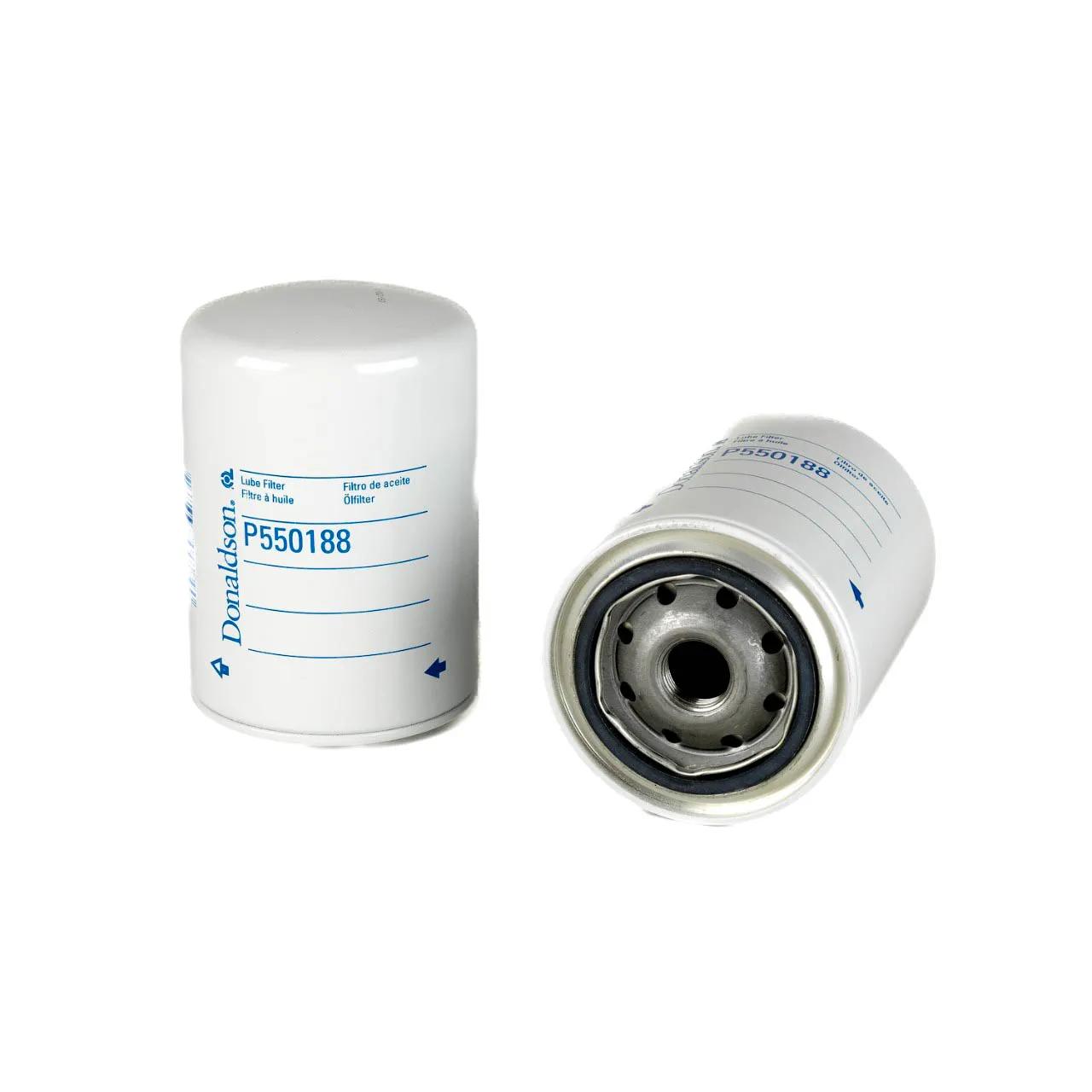

Engine Oil Filter, Spin-On L: 5,44 in, Thread : 13/16-16 UN , OD: 3,66 in
#DONP550188
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 0.7 bar |
| Bypass Valve Setting LR | 0.6 bar |
| Diameter Range | 3 to 3.99 in |
| Efficiency 99% | 40 Micron |
| Efficiency Test Std | SAE J1858 |
| Gasket ID | 2.44 in (62 mm) |
| Gasket OD | 2.8 in (71.2 mm) |
| Length | 5.44 in (138.2 mm) |
| Outer Diameter | 3.66 in (92.97 mm) |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | 13/16-16 UN |
| Type | Full-Flow |
Interchanges & Equivalent parts:
| P550188 |
| 1581 |
| 51581 |
| CW581MP |
| BT112 |
| 85581 |
| FP152499B |
| LF632B |
| LFR8632B |
| PH37 |
| LF129 |
| P129 |
| SO632 |
| LFP152499B |
| LFP15499B |
| FL234 |
| 6667028 |
| L30026 |
| PER26 |
| Z32 |
| C8031 |
| SO1321 |
| 2311201 |
| PF27 |
| 624 |
| 92581 |
| 451104005 |
| 8014H |
| 9457280140 |
| 170200 |
| 3I1617 |
| FP1524998 |
| 152499 |
| 892575 |
| 892575A |
| 741195 |
| PL632 |
| AZL058 |
| LSF5055 |
| PM351 |
| 423 |
| WD423 |
| 4041959 |
| 6437852 |
| FOE173 |
| 9576P550188 |
| FO1002 |
| P351 |
| HD0188 |
| KW632B |
| AW41 |
| 6685819910 |
| VC8813 |
| BC8813 |
| AP3233A |
| PHM37 |
| 103841 |
| 1046Z72 |
| PL198 |
| 6005019770 |
| 92818417 |
| CV337 |
| SRP499 |
| LF550188 |
| 818511 |
| S265CP |
| WGL632 |
| DN P550188 |
| DN P550188 |
| 2191-P550188 |
| 253243 |
| BM75654 |
| CL632B |
| FF2001EC |
| 3I-1617 |
| 6437664 |
| 6437854 |
| PH20A |
| PH20 |
| PF1284 |
| LF129OBS |
| SDF22 |
