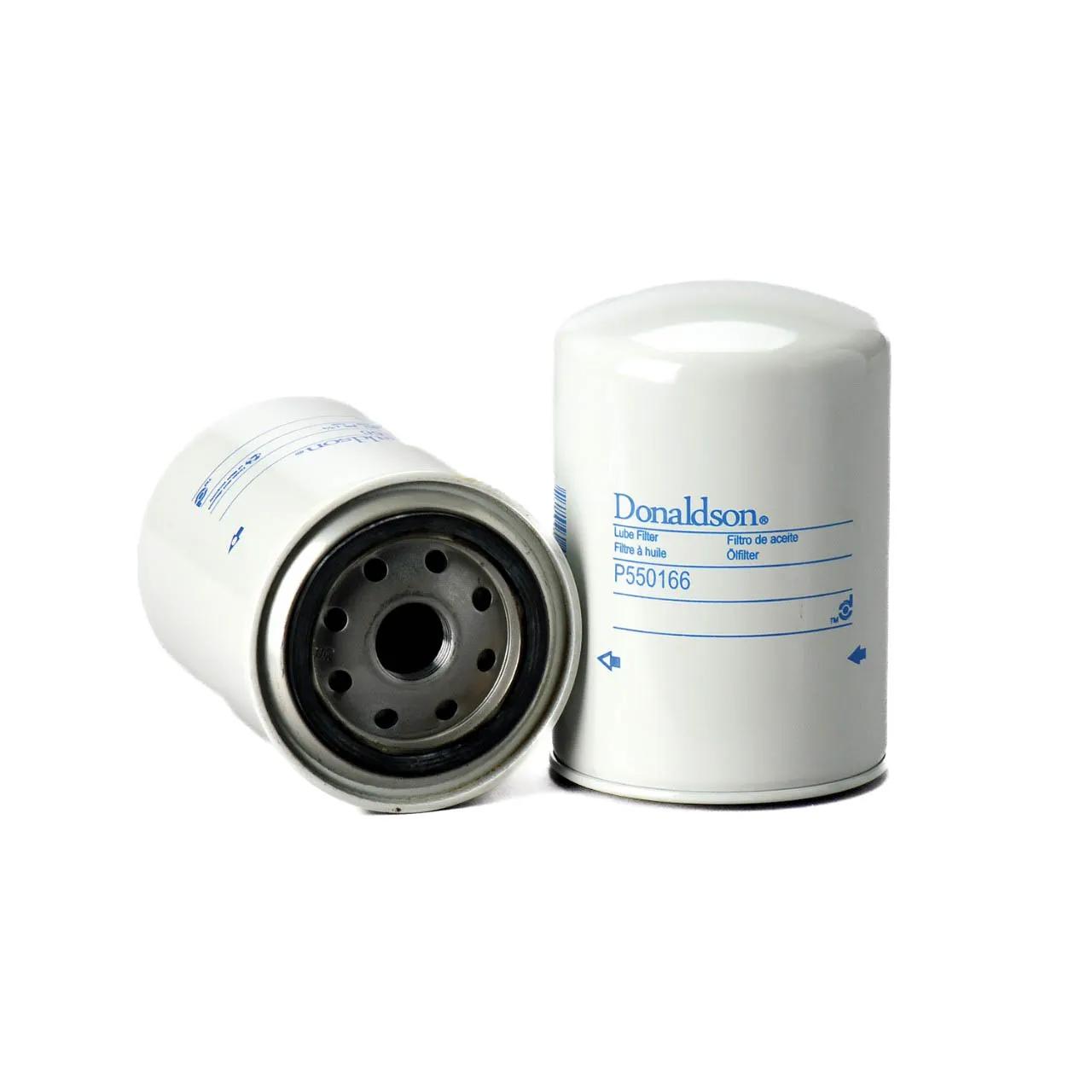

Engine Oil Filter, Spin-On L: 5,44 in, Thread : M22 x 1,5 , OD: 3,66 in
#DONP550166
Product Overview
LUBE FILTER, SPIN-ON FULL FLOW
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 1.5 bar |
| Bypass Valve Setting LR | 1.2 bar |
| Diameter Range | 3 to 3.99 in |
| Efficiency 99% | 45 Micron |
| Efficiency Test Std | SAE J1858 |
| Gasket ID | 2.44 in (62 mm) |
| Gasket OD | 2.83 in (71.9 mm) |
| Length | 5.44 in (138.2 mm) |
| Outer Diameter | 3.66 in (92.97 mm) |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | M22 x 1.5 |
| Type | Full-Flow |
| Vehicle Make | Onan |
Interchanges & Equivalent parts:
| B281 |
| 85592 |
| LFP2267 |
| 622 |
| LF3473 |
| LFR83315 |
| LFR83473 |
| BCH218 |
| CH218PL |
| PH2975 |
| PH3616 |
| PH4510 |
| LF444 |
| P444 |
| H17W23 |
| KL295014 |
| L133 |
| L133S |
| LFP8507 |
| W94037 |
| MH389 |
| AFL252 |
| FL796 |
| 1592 |
| 88295A |
| A432 |
| L30238 |
| PER238 |
| SPH9694 |
| SFO0252 |
| 51592 |
| PF2156 |
| 730390201 |
| 795 |
| 92087 |
| 92592 |
| AP218 |
| SP445 |
| 3I1604 |
| DO259 |
| AZL129 |
| AZL134 |
| LSF5092 |
| Z146 |
| 9338 |
| 1220550 |
| 531112 |
| FT4662A |
| FF391EC |
| FOE195 |
| 1582036 |
| 1582037 |
| 1582038 |
| 783F6L625AA3A |
| 783F6L625AAA |
| 78SF6714AA3A |
| 9576P550166 |
| 962S |
| Z141 |
| 3260017 |
| 32600117 |
| 102448 |
| PEK102448 |
| OC88 |
| 1245424H1 |
| 20M6031230 |
| 8627334 |
| E012207046 |
| 32811500 |
| AP3543 |
| LK1163 |
| LK3543 |
| PM218 |
| 5040550005 |
| 901201142 |
| 507407 |
| 1220582 |
| BC1079 |
| LS813 |
| 92096317 |
| 407025 |
| CV512 |
| 2265782081 |
| 3918206 |
| 7105190 |
| 688332 |
| LF550166 |
| 1115016 |
| 41150030 |
| 41150030A |
| 4115030 |
| 27073658 |
| WGL3315 |
| WGL3473 |
| DN P550166 |
| DN P550166 |
| 027073658 |
| 0916758 |
| 68935703032 |
| 122-0582 |
| 20M-603-1230 |
| 2191-P550166 |
| 328115 |
| 85087 |
| PF2156F |
| R34 |
| ABU8783 |
