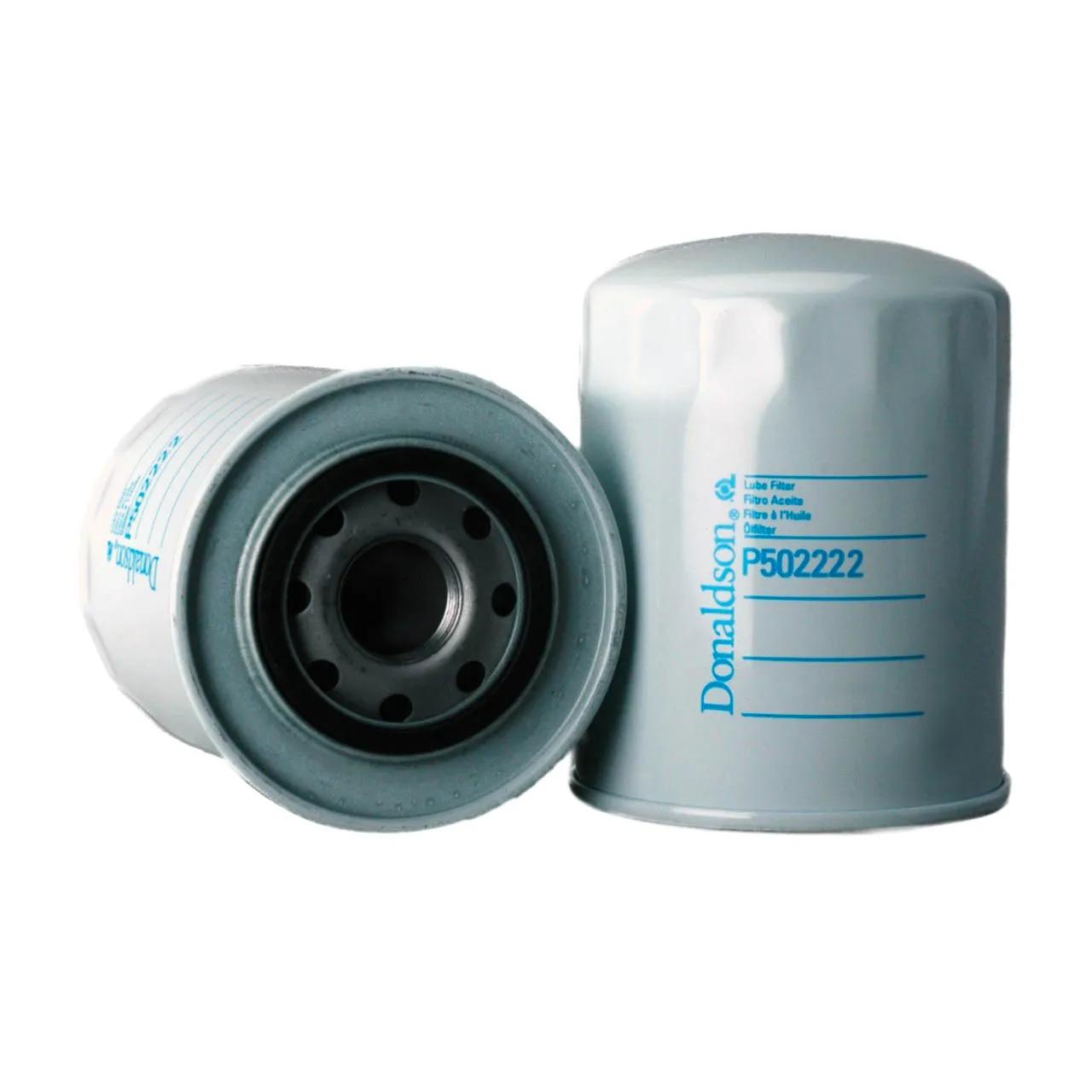

Engine Oil Filter, Spin-On L: 5,63 in, Thread : M30 x 2 , OD: 4,26 in
#DONP502222
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
Specifications
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 2.1 bar |
| Bypass Valve Setting LR | 24.66 psi |
| Diameter Range | 4 to 4.99 in |
| Efficiency 50% | 16 Micron |
| Efficiency Test Std | JIS D 1611 |
| Gasket ID | 2.4 in |
| Gasket OD | 2.83 in (71.9 mm) |
| Length | 5.63 in |
| Outer Diameter | 4.26 in (108 mm) |
| Length Range | 5 to 5.99 in |
| Style | Spin-On |
| Thread Size | M30 x 2 |
| Type | Full-Flow |
Interchanges & Equivalent parts:
| P502222 |
| H208W02 |
| C7006 |
| SFO0208 |
| 4741274 |
| 1450128 |
| 330560280 |
| LF502222 |
| 190 7578 |
| 190 7818 |
| DN P502222 |
| 11907818 |
| 1902197 |
| 2191-P502222 |
| 4741272 |
| 1410041 |
| 1907578 |
| 1907818 |
| 74741272 |
| DONP502222 |
| SO307 |
| W11405 |
