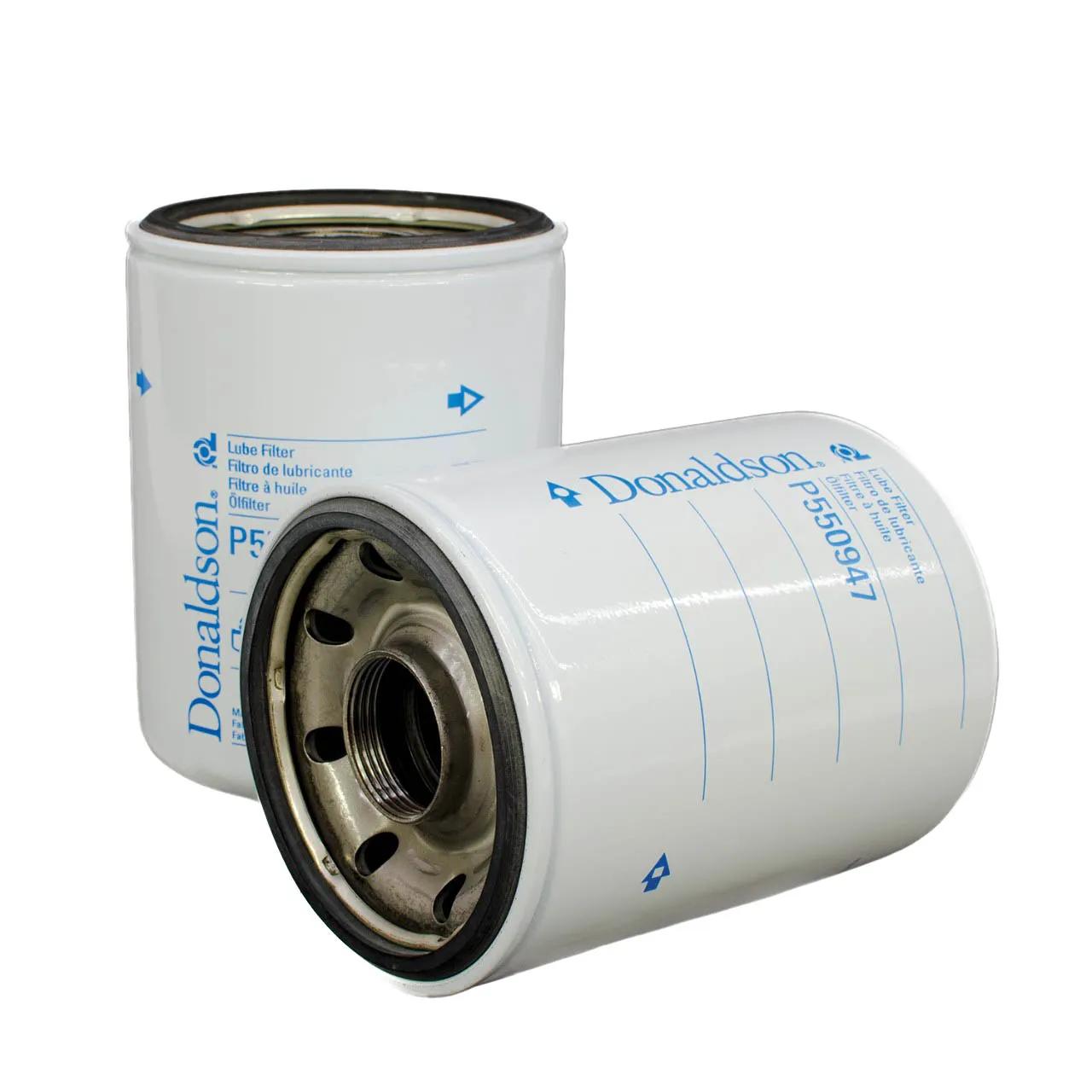

Engine Oil Filter, Spin-On L: 6,3 in, Thread : 1 1/2-12 UN , OD: 4,69 in
#DONP550947
Product Overview
Why Choose Donaldson Lube Filters?
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
Specifications
| Diameter Range | 4 to 4.99 in |
| Efficiency 99% | 21 Micron |
| Efficiency Test Std | SAE J1858 |
| Engine Manufacturer | Detroit Diesel |
| Gasket ID | 3.86 in (98.1 mm) |
| Gasket OD | 4.34 in (110.3 mm) |
| Length | 6.3 in (160.1 mm) |
| Outer Diameter | 4.69 in (119 mm) |
| Length Range | 6 to 6.99 in |
| Style | Spin-On |
| Thread Size | 1 1/2-12 UN |
| Type | Full-Flow |
Interchanges & Equivalent parts:
| PL3333SC |
| B105 |
| B404 |
| 84810 |
| 85810 |
| HO514 |
| LFP947 |
| J8610590 |
| J8610947 |

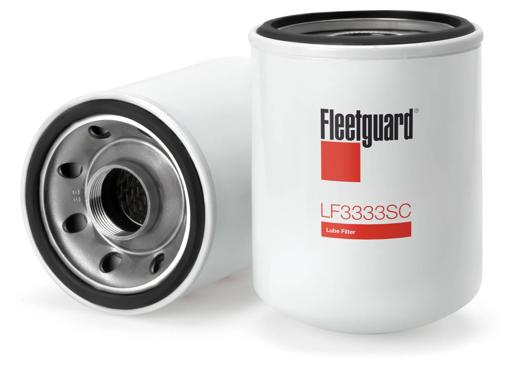

| LF3333SC |
| LF3363SC |
| LF3541 |
| LFR83333SC |
| LFR83541 |
| HPH3690 |
| PF3690 |
| PH3690 |
| PH5136 |
| LF273 |
| P273 |
| SO3333SC |
| L212 |
| L212U |
| LFP2535 |
| T2200 |
| FL790 |
| 20A2713 |
| 1810 |
| 7810 |
| A105 |
| 6754189 |
| L30279 |
| PER279 |
| PER279DD |
| HDZ239 |
| HDZ303 |
| Z303 |
| C1309 |
| C6508 |
| SFO0947 |
| C601 |
| 51810 |
| 57810 |
| 59216 |
| PF947 |
| PF947L |
| 95631283 |
| HO634 |
| 2175 |
| 92810 |
| 634K |
| 91810 |
| 538233 |
| 9Y4473 |
| 3I0740 |
| 3I1223 |
| 27851 |
| 1992247 |
| LSF5051 |
| 23518667 |
| 23518525 |
| 23530409 |
| 25011106 |
| 25014214 |
| D2NP550947 |
| 15607334 |
| 14640029 |
| 14640040 |
| 74508845 |
| 3A11544 |
| 9576P550947 |
| 1505770 |
| DNP550947 |
| 25010854 |
| 25010855 |
| 25010856 |
| 156071590 |
| 156071670 |
| 156071671 |
| 156071750 |
| 156071750A |
| 156071780 |
| 156071840 |
| 156071841 |
| S156071841 |
| 59651257 |
| FB105 |
| 6427114 |
| T2195 |
| TJ841127400 |
| 9Y4465 |
| 136281 |
| 411274 |
| 8411274 |
| 841127400 |
| 688616 |
| 67634001 |
| LF550947 |
| 83471255DIE |
| WGL3333SC |
| WGL3541 |
| ABP N03 L50947 |
| DN P550947 |
| DN P550947 |
| 15607-1840 |
| 2KZR6 |
| H490625M25 |
| PF947F |
| PH3690341 |
