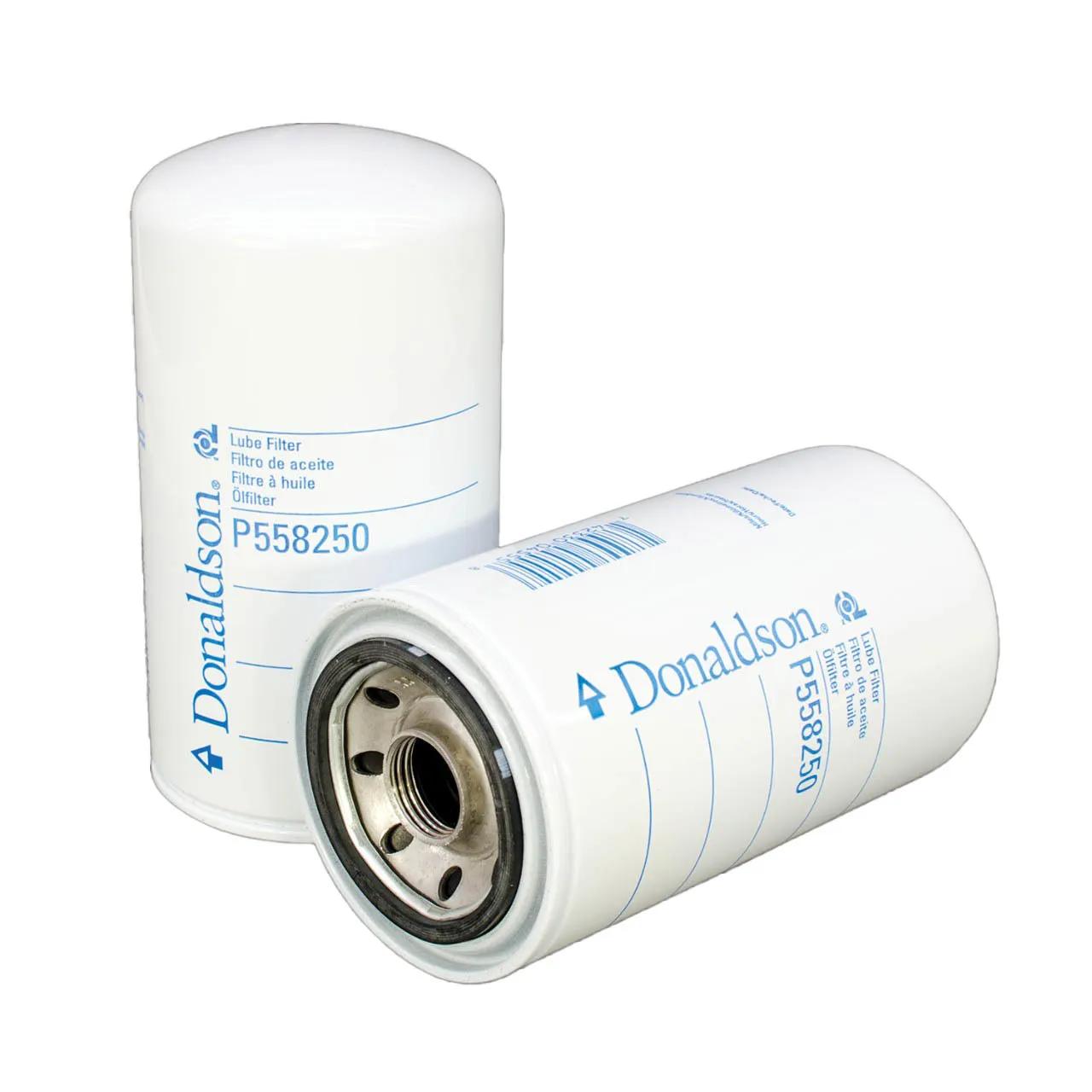

Engine Oil Filter, Spin-On L: 6,78 in, Thread : 1-12 UN , OD: 3,66 in
#DONP558250
Product Overview
Why Choose Donaldson Lube Filters?
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
Specifications
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 1.2 bar |
| Bypass Valve Setting LR | 0.8 bar |
| Diameter Range | 3 to 3.99 in |
| Efficiency 99% | 40 Micron |
| Efficiency Test Std | ISO 4548-12 |
| Gasket ID | 2.4 in (61 mm) |
| Gasket OD | 2.8 in (71.2 mm) |
| Length | 6.78 in (172.3 mm) |
| Outer Diameter | 3.66 in (92.97 mm) |
| Length Range | 6 to 6.99 in |
| Style | Spin-On |
| Thread Size | 1-12 UN |
| Type | Full-Flow |
| Vehicle Make | Case/Case IH |
Interchanges & Equivalent parts:
| AL33 |
| ABPN10GLF690 |
| B167 |
| B7215 |
| B975 |
| BT342 |
| 85053 |
| 85158 |
| 85298 |
| HO509 |
| LFP54 |
| LFP880 |
| PH690 |
| PH933 |
| J8613950 |
| ML40048 |
| ML40127 |
| 2062 |
| 619 |
| 9330 |
| 10M2630 |
| 10R2630 |
| 1OR2630 |

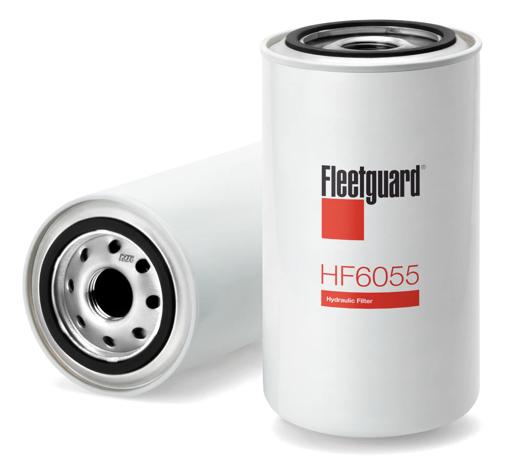

| HF6055 |

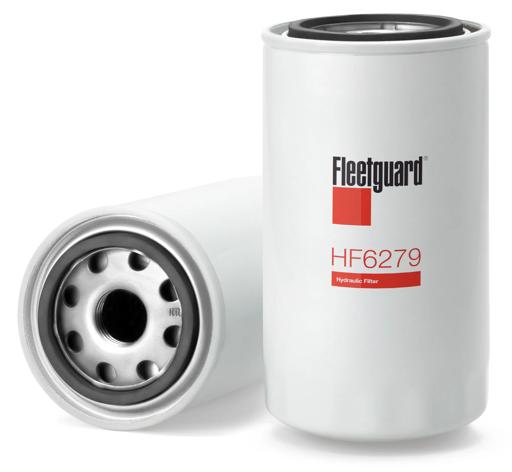

| HF6279 |
| HF6280 |

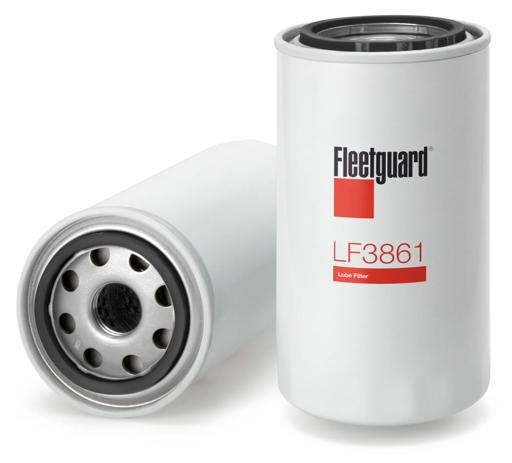

| LF3861 |

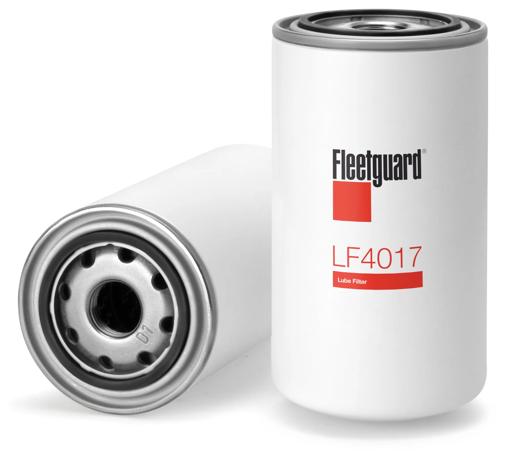

| LF4017 |
| LF673 |
| LF690 |
| HFR86055 |
| HFR86279 |
| HFR86280 |
| LFR83382 |
| LFR83861 |
| LFR84017 |
| LFR8673 |
| LFR8690 |
| PH2829 |
| PH2836 |
| PH2887 |
| PH3306A |
| PH38 |
| GP10 |
| GP10M |
| GP3403 |
| GP66M |
| HF930 |
| LF261 |
| A15001 |
| H19W07 |
| SO4017 |
| SO673 |
| SO694 |
| KL169 |
| L169 |
| L176 |
| LFP2234 |
| LP2234 |
| W95017 |
| W93015 |
| W9501 |
| W95014 |
| WF9622 |
| MH321 |
| MH351P |
| MH355P |
| EFL215 |
| FL265 |
| FT75 |
| 1053 |
| 1158 |
| 1298 |
| A48 |
| A48SP |
| A342 |
| L37211 |
| L40048 |
| L42168 |
| MF60900 |
| MF60900A |
| MF67600A |
| OC30 |
| PC211 |
| C6210 |
| C8017 |
| SP4375 |
| SFO9501 |
| PSL418 |
| 2310600 |
| 2315200 |
| 2320320 |
| 2320520 |
| 2787200 |
| 872 |
| 51053 |
| 51298 |
| PF2048 |
| PF38 |
| PF856TKNG |
| PF880 |
| NO225 |
| 720309 |
| 12615 |
| SP811 |
| SP822 |
| 1400318 |
| SFO0071 |
| 2035 |
| 831 |
| 92053 |
| 92158 |
| 92275 |
| 92298 |
| 92797 |
| O931806 |
| 225K |
| 9709000735 |
| 1836107 |
| E6742 |
| 451203002 |
| 451203102 |
| 451203226 |
| 9457282160 |
| FJSJ16U23Z |
| P3002 |
| P3226 |
| OF3306 |
| 70000011 |
| 300030300 |
| 300030300P12 |
| 7000011 |
| 103853 |
| 43-644 |
| LFH4967 |
| QS3306A |
| 51820 |
| PF912 |
| HG50027 |
| 85797 |
| PF2207 |
| 3408-305 |
| 221046Z46 |
| PF1638 |
| 85797MP |
| PF912F |
| 5802872619 |
| 896 |
