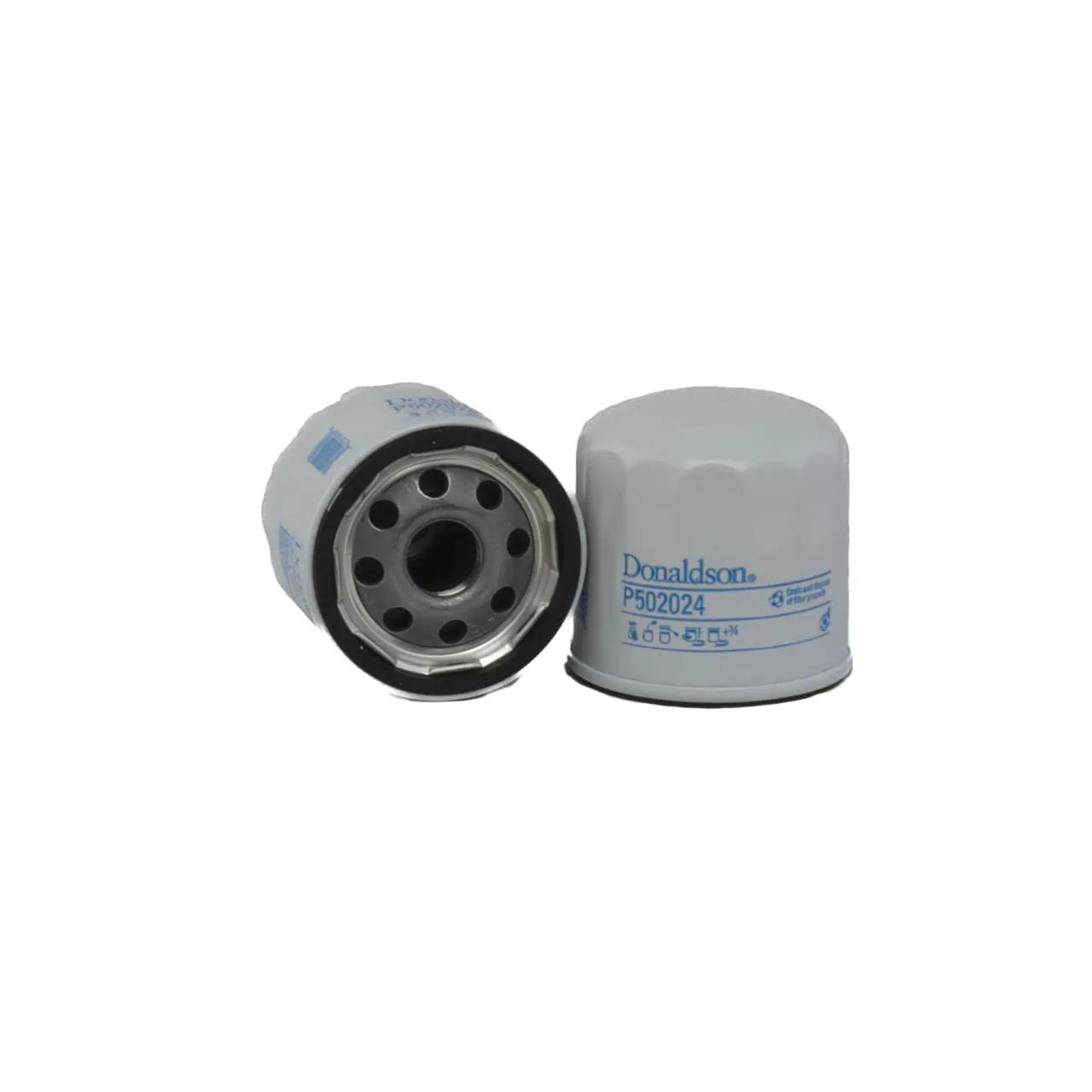

Engine Oil Filters, Spin-On L: 2,56 in, OD: 2,68 in
Product Overview
Features & Benefits
- Donaldson has the technical expertise, superior customer support and vast network of locations around the world to meet your toughest needs - from initial system design through replacement products.
Specifications
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 1 bar |
| Bypass Valve Setting LR | 0,8 bar |
| Diameter Range | 2 to 3 in |
| Efficiency 50% | 20 Micron |
| Efficiency Test Std | JIS D 1611 |
| Gasket ID | 2.2 in (55.9 mm) |
| Gasket OD | 2.56 in (65.1 mm) |
| Length | 2.56 in (65.1 mm) |
| Outer Diameter | 2.68 in (68.08 mm) |
| Standard Length | 2 to 3 in |
| Style | Spin-On |
| Type | Full-Flow |
Interchanges & Equivalent parts:
351P, 51065, AM125424, B7165, CH2874, LF3848, PH2874A, PH3656, PH4386, PH4967, PH4997, PH8170, 1056, 1590632090, 2191-P502024, 492932, 51360, 85056, 85056MP, AM107423, DN P502024, DN P502024, DONP502024, FIL1056, LF503, 7035, 092325540, 1180815, 1249932430, 1560187204000, 1560187703, 1560187703000, 1560187705000, 1560187706, 1651082701, 1650187204, 1651081400, 1651082700, 2006H, 2325500, 292311820, 41152001A, 450652071, 490652075, 490652076, 50302800, 50408400, 5410502, 67149850, 7700629215, 84035, 842921, 85065, 8922002004, 8922002010, 8922002011, 909152002, 92065, 92325540, 92394, 9350614, ADD62104E, AM107432, AP1090, AP3104A, AW32, AY0114300A, C11093, C11094, C1204, C241, C631, C930, C932, DO723, FB5300, FC603, FMS2109, FO1037, FO1039, GFE210, H97W04, H97W13, J1316004, L4, L4967, LK1090, LO502, LS896, OC10050, OC17030, OC215, OF2016, PF2127, PF2128, PH2840, PL10241, PZ39, S3255R, S880, SFO0477, SO912, 1560187204, MO4967, PH2841, T501, V4476, VFL114, W672, W6781, W683, WGL9033, Z107, Z443, ZZS114302, 2099, 659, PH4967, PH3656, B7165, PH4997, 351P, LF3848, PH8170, AM125424, PH2874A, CH2874, 51065, PH4386, 1560187706, 1249932430, 1560187703000, 1560187204000, 092325540, 1180815, 1560187703, 92065, AP1090, ADD62104E, H97W04, C631, PF2127, L4967, C932, C1204, FMS2109, DO723, AM107432, PZ39, OC10050, AP3104A, 842921, FO1037, GFE210, 50408400, FB5300, FO1039, LO502, S3255R, 92325540, LK1090, PH2840, AW32, 2006H, 8922002011, 2325500, 85065, C930, 1650187204, 41152001A, S880, LS896, 8922002010, C11093, 1651082700, L4, 84035, AY0114300A, 1651081400, J1316004, 909152002, OC17030, SO912, 5410502, 50302800, 9350614, C11094, C241, 8922002004, 450652071, SFO0477, PF2128, 92394, 1651082701, OC215, 490652076, FC603, 7700629215, H97W13, 67149850, 292311820, 490652075, OF2016, PL10241, 1560187705000, W6781, W672, ZZS114302, V4476, 1560187204, T501, PH2841, Z107, VFL114, Z443, MO4967, WGL9033, W683, 2191-P502024, 85056MP, AM107423, 1590632090, 1056, FIL1056, DN P502024, 85056, DN P502024, DONP502024, 51360, 492932, LF503, 2099, 659, 7035, DOF2301, 7035MP, 1360, 1065, SP4070, 36563, 57035MP, 57035, SP898, PO4967, FD8247, 514000027, FT5164, 944S, Z212, 490650721, 490657007, 1520878525, 120483, 120485, 120985, LF502024
