Engine Oil Filters, Spin-On L: 3,54 in, OD: 2,56 in

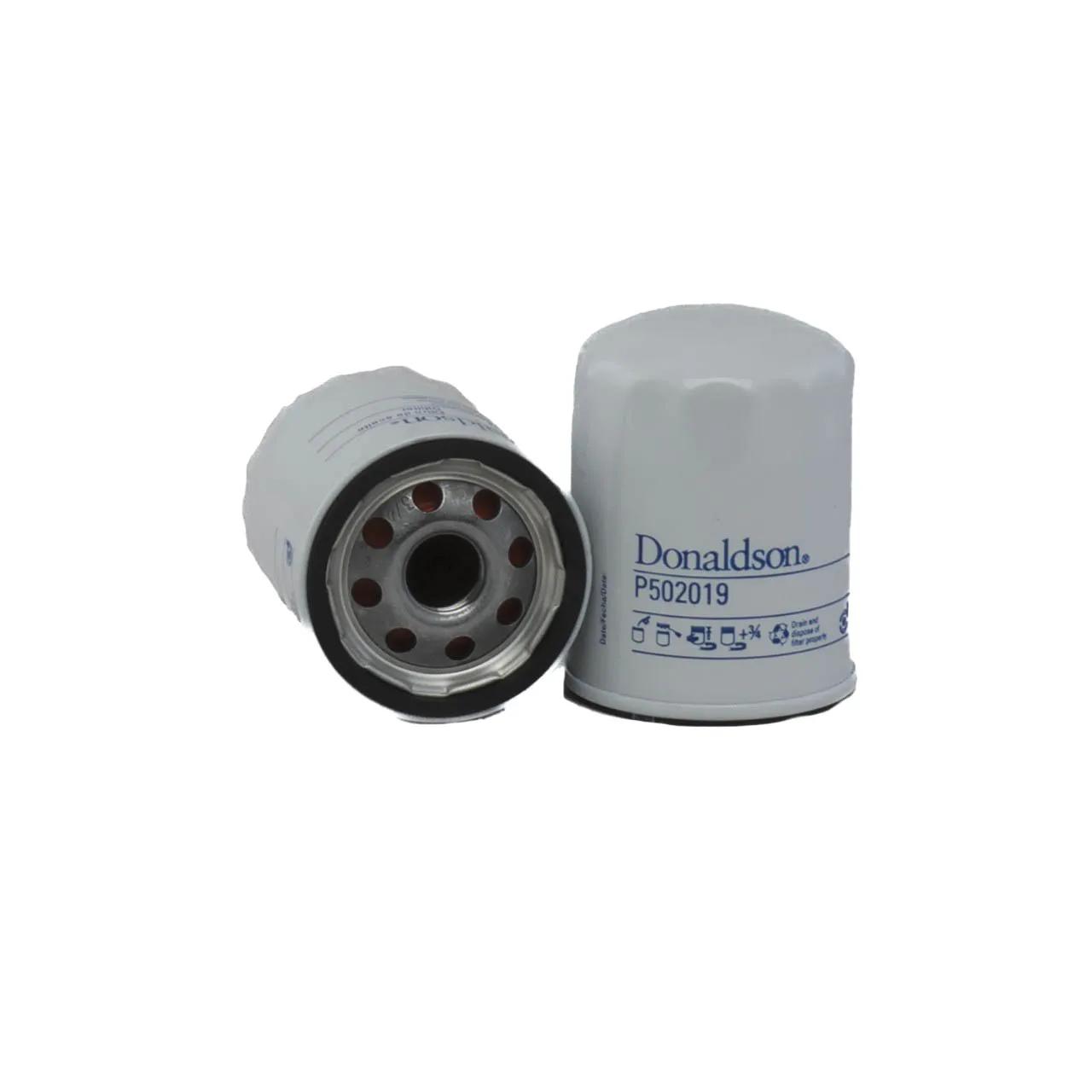

#DONP502019
Product Overview
LUBE FILTER, SPIN-ON FULL FLOW
Features & Benefits
- Donaldson lube filters are designed to keep today's engine lube systems functioning at peak performance
- Keep oil clean by capturing contaminants that cause engine damage
- Include heavy duty components that are built to perform, built to last
Specifications
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 1.17 bar |
| Bypass Valve Setting LR | 0.76 bar |
| Diameter Range | 2 to 2.99 in |
| Efficiency 50% | 20 Micron |
| Efficiency Test Std | JIS D 1611 |
| Gasket ID | 2.17 in (55.2 mm) |
| Gasket OD | 2.47 in (62.8 mm) |
| Length | 3.54 in (90 mm) |
| Outer Diameter | 2.56 in (65.03 mm) |
| Length Range | 3 to 3.99 in |
| Style | Spin-On |
| Type | Full-Flow |
| Vehicle Make | Toyota |
Interchanges & Equivalent parts:
| B1406 |
| B1416 |
| B37 |
| 84145 |
| 85315 |
| 85396 |
| DOF5705 |
| DOF8105 |
| L2841 |
| OP621 |

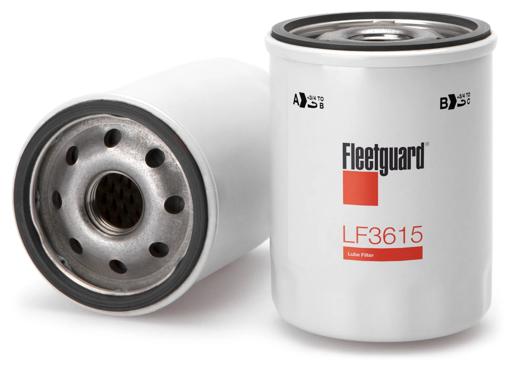

| LF3615 |
| LFR83948 |
| PH5166 |
| PZ38 |
| PH8316 |
| GP128 |
| GP156 |
| LF413 |
| LF483 |
| H97W01 |
| T1639 |
| L1396 |
| L315 |
| PH2005 |
| PH2823 |
| W61080 |
| W61083 |
| W6104 |
| W6101 |
| ML1022 |
| W6109 |
| PH2841 |
| MO4386 |
| MO8316 |
| FL2005 |
| 1315 |
| 1396 |
| 7145 |
| 131214 |
| 131604 |
| A1406 |
| A1406PLUS |
| L14477 |
| PER4477 |
| Z432 |
| Z442 |
| C1113 |
| C11131 |
| C11132 |
| C11133 |
| C11135 |
| C18141 |
| C8044 |
| C1814 |
| OF4477 |
| OF5230 |
| SP5203 |
| S8316 |
| STP2841 |
| SFO3004B |
| SFO4478 |
| OC217 |
| 92326640 |
| 2325100 |
| 2326600 |
| 51315 |
| 51396 |
| 551396 |
| 57145 |
| WL7177 |
| PF1220 |
| PF1234 |
| PF2221 |
| PF2228 |
| 88905890 |
| ACO46 |
| DO722 |
| L4386 |
| NO235 |
| OC16110 |
| OC16200 |
| OC18130 |
| OF2011 |
| SFO4477 |
| SP40201 |
| T3153 |
| EAO10 |
| F85 |
| CF483AP |
| 92315 |
| 92396 |
| 72167 |
| B4477 |
| C4477 |
| C5230 |
| OF4386 |
| C216 |
| CF308 |
| CF483 |
| CO2841 |
| PO4386 |
| Z1042 |
| Z1044 |
| Z1047 |
| 2100 |
| 2117 |
| 1560187202 |
| 9091510002 |
| D369 |
| 519100016 |
| OF83 |
| PH4477 |
| E4477 |
| L25230 |
| SL14477 |
| SL25230 |
| FMS2022 |
| LF413F |
| LF483F |
| FT5209 |
| FT5286 |
| TF4477 |
| 86546623 |
| F8 |
| 83282 |
| FF4386 |
| PPG4476 |
| 3325 |
| 72167WS |
| PG4476BF |
| 57145XP |
| R84145 |
| 85395 |
| PO-38 |
| MPH4386 |
| PH2840 |
| CAS4386 |
| R84145MP |
| SDF10 |
| M1-103A |
| SO-1003 |
| 10-2840 |
| HPZ-38 |
| PG4477 |
| FS4386 |
| 343604 |
| FD4386 |
| LF410F |
| CPH4386 |
| PG4476 |
| CL4967 |
| B33 |
| M1-103 |
