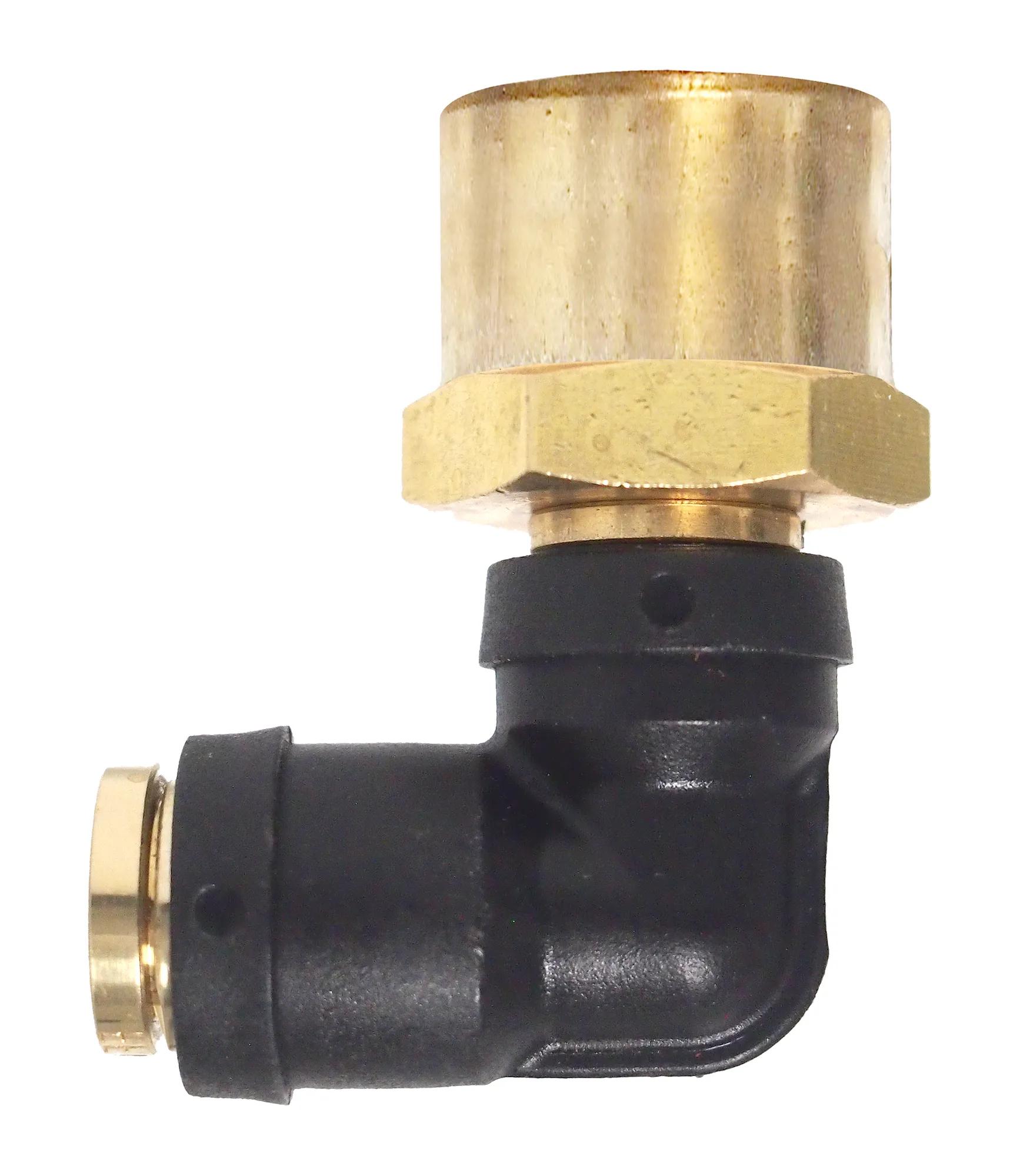

Fairview DOT PTC 90 deg Composite Swivel Elbow, 3/8 in Tube x 3/8 in MPT
#FAICPC1470SW-6C
Product Overview
Fairview's 90 deg Female Pipe Swivel Elbows Feature A Labor Saving Full Flow Design That Requires No Tools
Features & Benefits
- Buna N O-ring
- Brass Tube Support
- Compact and Impact Resistant (Polypropylene)
- Brass Collet
- PTC Fitting is a composite push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T truck and trailer applications, PTC fittings reduce assembly time versuscompression style fittings
- Meets SAE J844
- Composite Body – Strong, Lightweight,
- Plug-in configurations
- MPT Thread: Red Loctite Thread Sealant
- Meets D.O.T. FMVSS 571.106
Specifications
| Angle | 90 deg |
| Application | Freins pneumatiques, Réservoirs d'air, Suspension pneumatique, Glissières, Gonflage des pneus, Commandes de cabine |
| Type de raccords | Coude |
| Type pivotant ou fixé | Pivotant |
| Recommandations pour le tuyau | Tuyauterie de frein pneumatique 1485 |
| Diamètre intérieur | 3/8 po |
| Matériel | Composite |
| Joint torique | Buna N |
| Pipe Size | 3/8 po |
| Pressure | 250 psi |
| Standard | SAE J844 Type A & B nylon tubing |
| Temperature | Utilisation d'un joint torique Buna basse température : -55 °C à 120 °C |
| Thread Type | MPT |
| Tube Size | 3/8 po |
| Standards | Tuyauterie en nylon SAE J844 Type A et B, D.O.T. FMVSS 571.106 |
| Manufacturer Part Number | CPC1470SW-6C |
| Product Category | Coude de tuyau |
Interchanges & Equivalent parts:
| CPC1470SW-6C |
