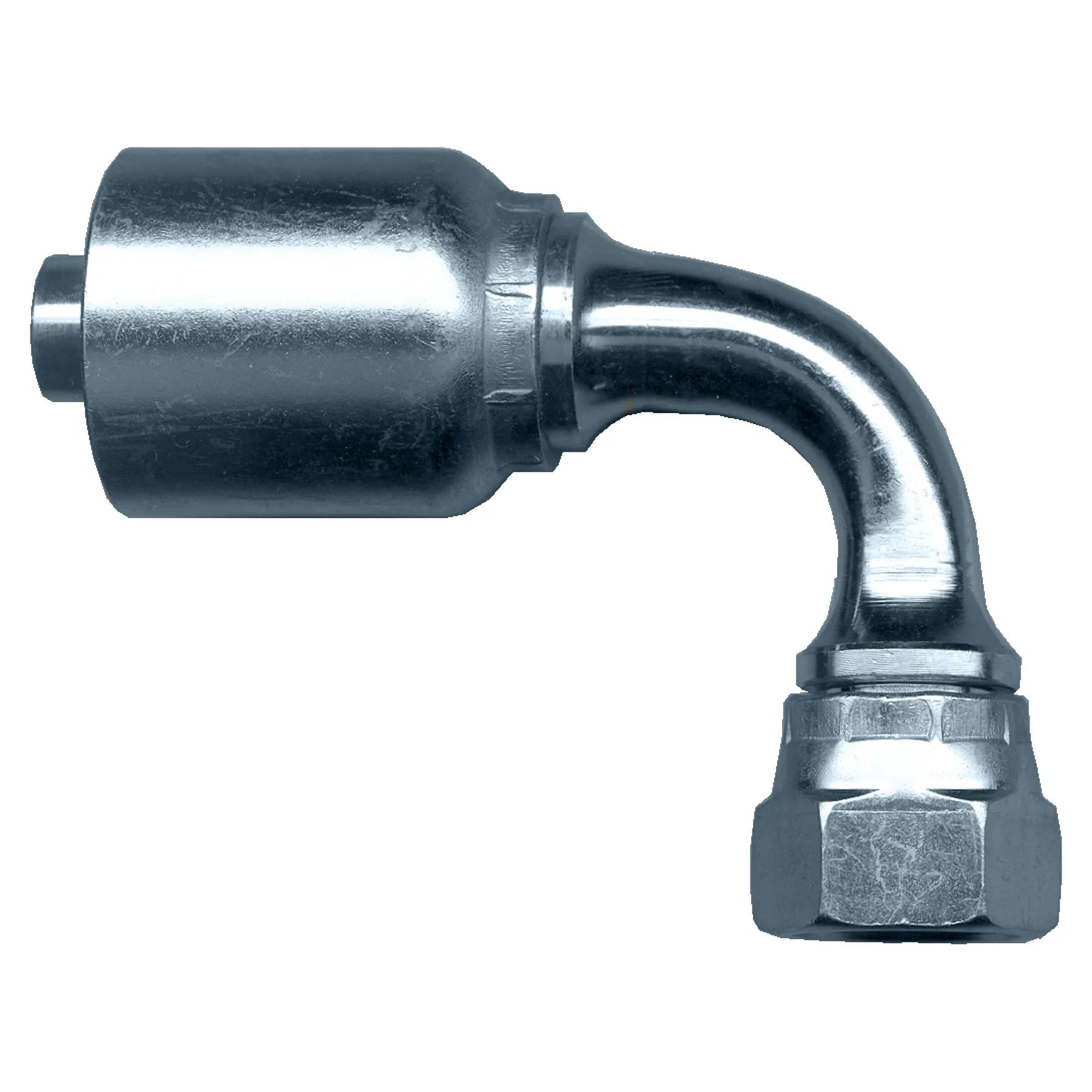

Fairview Elbow, Metric, 90 deg Angle, (Light) SAE Female (Swivel) Connection, Steel, 1/2 in Hose x 15 mm Tube Nominal, M36 x 2.0 Thread, -40 to 250 °F
#FAISC939LM-8-22
Product Overview
Fairview's hydraulic bite-wire hose crimp ends are equivalent to the Parker 43 series (for use with SAE R1, R2, T1SN, T2SN, R17 and R16 hoses).Elbow, Metric, 90 deg Angle, (Light) SAE Female (Swivel) Connection, Steel, 1/2 in Hose x 15 mm Tube Nominal, M36 x 2.0 Thread, -40 to 250 °F, For Use with S.A.E. 100R1-AT, 100R2-AT, T1SN, T2SN, 100R3, 100R4, 100R16 and 100R17 Hose
Specifications
| Angle | 90 deg |
| Application | Use with S.A.E. 100R1-AT, 100R2-AT, T1SN, T2SN, 100R3, 100R4, 100R16 and 100R17 Hose |
| Material | Steel |
| Type | Metric |
| Connection Type | (Light) SAE Female (Swivel) |
| Nominal Size | 1/2 in Hose x 15 mm Tube |
| Temperature Range | -40 to 250 °F |
| Manufacturer Part Number | SC939LM-8-22 |
| Product Category | Elbow |
