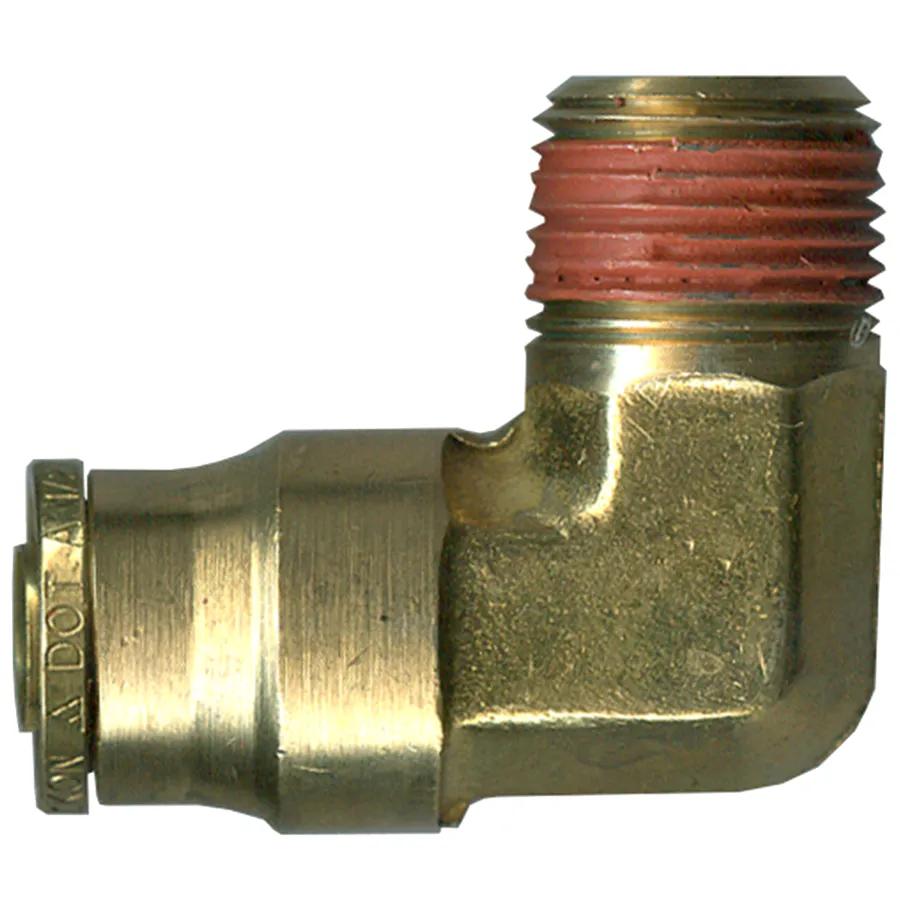

Fairview Push-to-Connect Air Brake Pipe Elbow, Brass, 90 deg, Male, 5/8 in Tube x 1/2 in Pipe, D.O.T.
#FAIPC1469-10D
Product Overview
Pipe Elbow, Push-to-Connect, Male, Brass, 10 Dash, 5/8 x 1/2 in, 225 psi Pressure, Temperature Rating: -40 to 225 °F, 0.092 in Wall Thickness, For Use with J844D Nylon Air Brake Tube, For Air Brake Systems, Meets SAE J844D & D.O.T. Standards
Features & Benefits
- Use with J844D Nylon Air Brake Tube
Specifications
| Angle | 90 deg |
| Application | Air Brake Systems |
| Dash Size | 10 |
| Finish | Brass |
| Fitting Size | 5/8 x 1/2 in |
| Fitting Type | Male |
| Material | Brass |
| Pipe Size | 1/2 in |
| Pressure | 225 psi, 240 psi |
| Series | D.O.T. |
| Temperature | -40 °F to +225 °F (-40 °C to +107 °C) |
| Tube | 5/8 in |
| Type | Push-to-Connect |
| Wall Thickness | 3/32 in |
| For Use With | J844D Nylon Air Brake Tube |
| Pressure Rating | 225 psi |
| Standards | SAE J844D & D.O.T. |
| Temperature Rating | -40°F to 225°F (-40°C to 107.2°C) |
| Manufacturer Part Number | PC1469-10D |
| Product Category | Pipe Elbow |
Interchanges & Equivalent parts:
| 1869X10 |
| PC1469-10D |
| U34PC146910D |
| G31104-1008 |
| 4485-PC146910D |
| FV PC146910D |
| APTC6910D |
| PC146910D |
| PC1469-10DPX1 |
