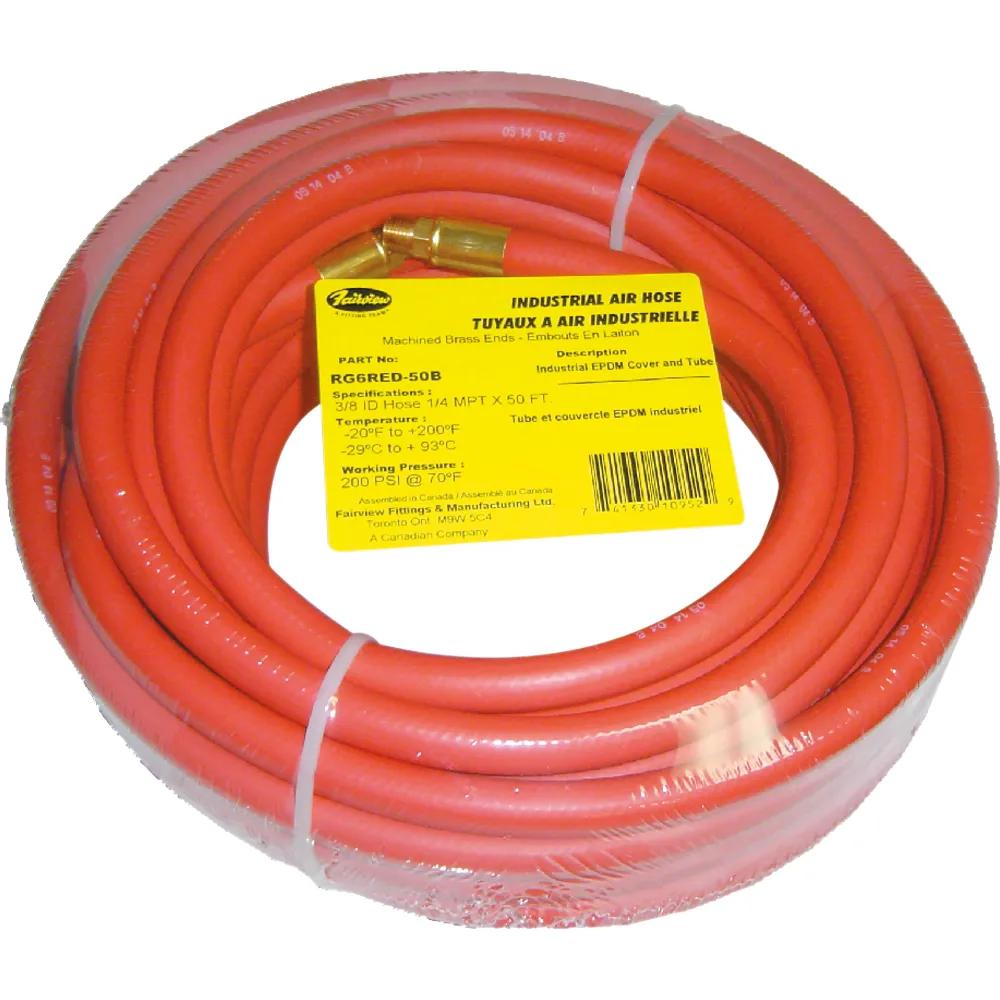

Fairview RG Series Hose Assembly, 3/8 in ID, 1/4 in NPT Ends, 50 ft, 200 psi, Red EPDM, For Air Lines
#FAIRG6RED-50B
Product Overview
Fairview RG Series Hose Assembly with 3/8 in inside diameter and 1/4 in outside diameter, featuring NPT inlet and outlet fittings. Constructed from durable red EPDM material, rated for 200 psi pressure and 50 ft length. Suitable for air line applications, operating temperature range from -22 °F to 167 °F (-30 °C to 75 °C).
Features & Benefits
- Standard lengths are -25, 50, 75 or 100ft.
- All assemblies have factory crimped ends with either B - 1/4”, C - 3/8” or D - 1/2” brass male pipe ends.
- The RG Series of assemblies is constructed with RGP hose.
Specifications
| Applications | For Air Lines |
| Color | Red |
| Inside Diameter | 3/8 in |
| Length | 50 ft |
| Material | EPDM |
| Packaging | Individually shrink wrapped with bar coded label |
| Working Temperature | -22 °F to 167 °F (-30 °C to 75 °C) |
| Inlet Type | NPT |
| Outside Diameter | 1/4 in |
| Outside Type | NPT |
| Pressure Rating | 200 psi |
| Manufacturer Part Number | RG6RED-50B |
| Product Category | Hose Assembly |
Interchanges & Equivalent parts:
| 49.1656 |
| 491656 |
| RG6RED-50B |
| U34RG6RED50B |
| 4485-RG6RED50B |
| FV RG6RED50B |
| RG6RED50B |
