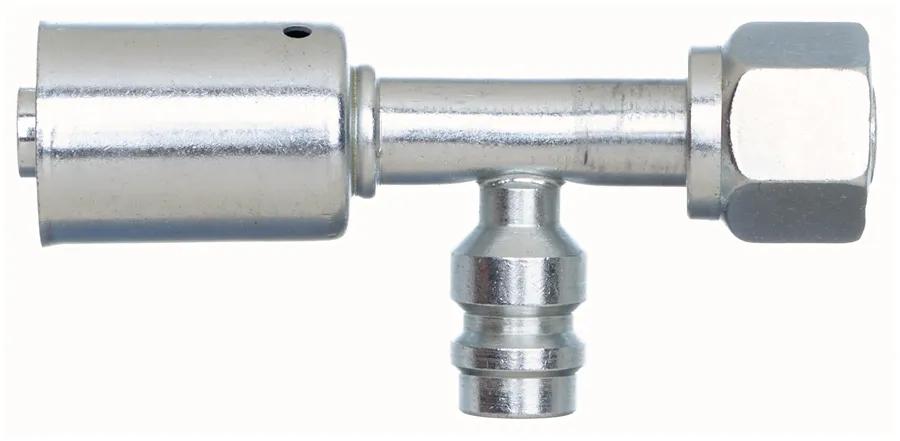

Female SAE Tube O-Ring Nut Swivel-R134a Service Port-Aluminum (PolarSeal ACA)
#GATG45588-1210
Product Overview
PolarSeal ACA Couplings Are For Use w/ Gates PolarSeal Air Conditioning Hose.
Features & Benefits
- Available in Various Bend Angles & Common Stem Sizes -6, -8, -10 & -12.
- O-Ring Not Included. Must Be Ordered Separately.
- Offered in Many of the Most Popular Styles of Aluminum Couplings w/ Select Styles Available in Zinc-Plated Steel.
- Utilize Gates PolarSeal Portable Crimper, or One of Gates Bench Top Crimpers, to Make Crimped AC Assemblies Using ACA Couplings & PolarSeal Hose.
Specifications
| Coupling Description | PolarSeal ACA Female SAE Tube O-Ring Nut Swivel w/ R134a Service Port - Aluminum |
| Cut Off (in) – C | 2-1/2 in (6.35 cm) |
| Hose Recommendation | Gates PolarSeal Refrigerant Hose |
| Industrial Description | 12ACA-10FTON134SP |
| Inside Diameter | 1-1/2 in (3.81 cm) |
| Length | 3-3/4 in (9.53 cm) |
| Series | PolarSeal ACA Female SAE Tube O-Ring Nut Swivel w/ R134a Service Port - Aluminum |
| Type | PolarSeal ACA Female SAE Tube O-Ring Nut Swivel w/ R134a Service Port - Aluminum |
Interchanges & Equivalent parts:
| 50660-1210 |
| 506601210 |
| GYH50660-1210 |
| G45588-1210 |
| 733200585 |
