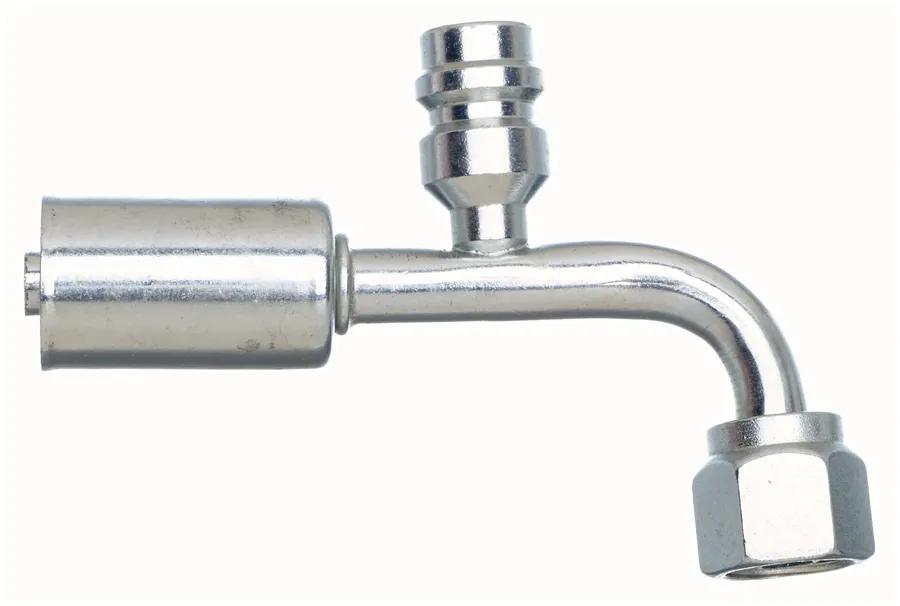

Female SAE Tube O-Ring Nut Swivel-R134a Svc Port-90 Bent Tube-Alum PolarSeal ACA
#GATG45589-1010
Product Overview
PolarSeal ACA Couplings Are For Use w/ Gates PolarSeal Air Conditioning Hose.
Features & Benefits
- Available in Various Bend Angles & Common Stem Sizes -6, -8, -10 & -12.
- O-Ring Not Included. Must Be Ordered Separately.
- Offered in Many of the Most Popular Styles of Aluminum Couplings w/ Select Styles Available in Zinc-Plated Steel.
- Utilize Gates PolarSeal Portable Crimper, or One of Gates Bench Top Crimpers, to Make Crimped AC Assemblies Using ACA Couplings & PolarSeal Hose.
Specifications
| Coupling Description | PolarSeal ACA Female SAE Tube O-Ring Nut Swivel w/ R134a Service Port - Aluminum |
| Cut Off (in) – C | 2-5/8 po (6,68 cm) |
| Drop (in.) | 1-1/2 po (3,81 cm) |
| Hose Recommendation | Tuyau de réfrigérant Gates PolarSeal |
| Industrial Description | 10ACA-10FTON134SP90 |
| Inside Diameter | 1-1/2 po (3,81 cm) |
| Length | 3-7/8 po (9,85 cm) |
| Series | PolarSeal ACA Female SAE Tube O-Ring Nut Swivel w/ R134a Service Port - 90 deg Bent Tube - Steel |
| Type | Femelle |
Interchanges & Equivalent parts:
| 506651010 |
| GYH50665-1010 |
| G45589-1010 |
| 733200615 |
