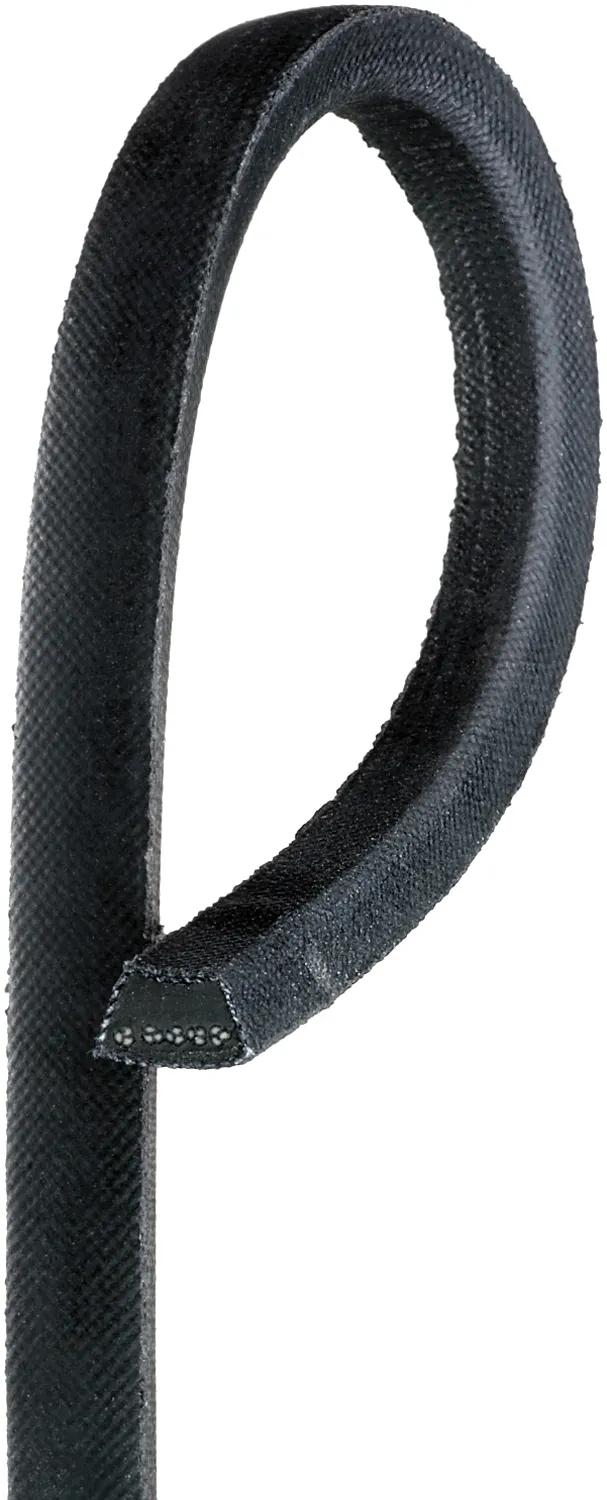

FHP Low Horse-Power V-Belt, L: 36.68 in, W: 3/8 in
Product Overview
MINIMUM OUTPUT. MAXIMUM PERFORMANCE.: Whether you're driving auxiliary automotive applications like electric windows, windshield wipers, and central locking systems, or you're powering drive pumps, power tools, and domestic appliance applications, your FHP motors and light-duty applications still demand the superior performance, reliability, and quality that you'll only find with Gates. ENGINEERED WITH YOUR LIGHT-DUTY APPLICATION IN MIND.: We've engineered the Gates Truflex belt with all the qualities of a great belt, including flexibility, durability, and resistance to contaminants. It includes a thin profile, designed for small-diameter sheaves, and a lower cord positioning to improve belt performance on light-duty belt drives and in your backside idler applications.
Features & Benefits
- Meets RMA oil and heat-resistant standards and static conductivity requirements
- Runs with smooth, quiet operation
- The Flex-Weave Cover is constructed for longer cover life, providing the belt’s core with extended protection from oil, dirt, and heat
- Flex-bonded cords are strongly secured to the belt’s body for equal load distribution and absorption of bending stress without cord deterioration
- Gates Curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear, and increased belt life
- Note: Truflex belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3)
- Truflex belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3).
- Suitable for all industrial light duty applications, usually using fractional horsepower (FHP) motors.BELT / SPROCKET SPECIFICATIONS
Specifications
| Angle | 38 deg |
| Belt Top Width | 3/8 to 1/2 in (0.97 to 1.27 cm) |
| Construction | Wrapped |
| Length | 37 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Recommended Sheaves | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Section | 3L |
| Length Range | 35 to 39.99 in |
| Type | FHP Low Horse-Power V-Belt |
| Weight | 0.12 lb (0.05 kg) |
| Width | 3/8 in (0.97 cm) |
Interchanges & Equivalent parts:
| 3L370 |
| 0355 |
| 0370 |
| 051056 |
| 1008304 |
| 108172 |
| 13677 |
| 1637852 |
| 17520 |
| 18377 |
| 286072 |
| 44386 |
| 59798 |
| 600124 |
| 639904 |
| 74257 |
| 79477 |
| 904024 |
| 904033 |
| 90782 |
| 109-027 |
| 12-5020 |
| 1370A |
| 1370T709 |
| 231X32 |
| 2622C337 |
| 3030005284461 |
| 34421D8 |
| 3L37 |
| 42699A |
| 4928024 |
| 6X366 |
| 6X369 |
| 6X370 |
| 6X371 |
| 75-637 |
| 754-04202 |
| 954-04202 |
| 9R940 |
| A50880A |
| C3492 |
| C4A60 |
| DB3L370 |
| FO37 |
| K5705475AF21 |
| KK5705475AR21 |
| L21P21290 |
| LG38370 |
| MS392413L370 |
| P81201 |
| T709 |
| TY4362 |
| 0M037 |
| 84001370 |
