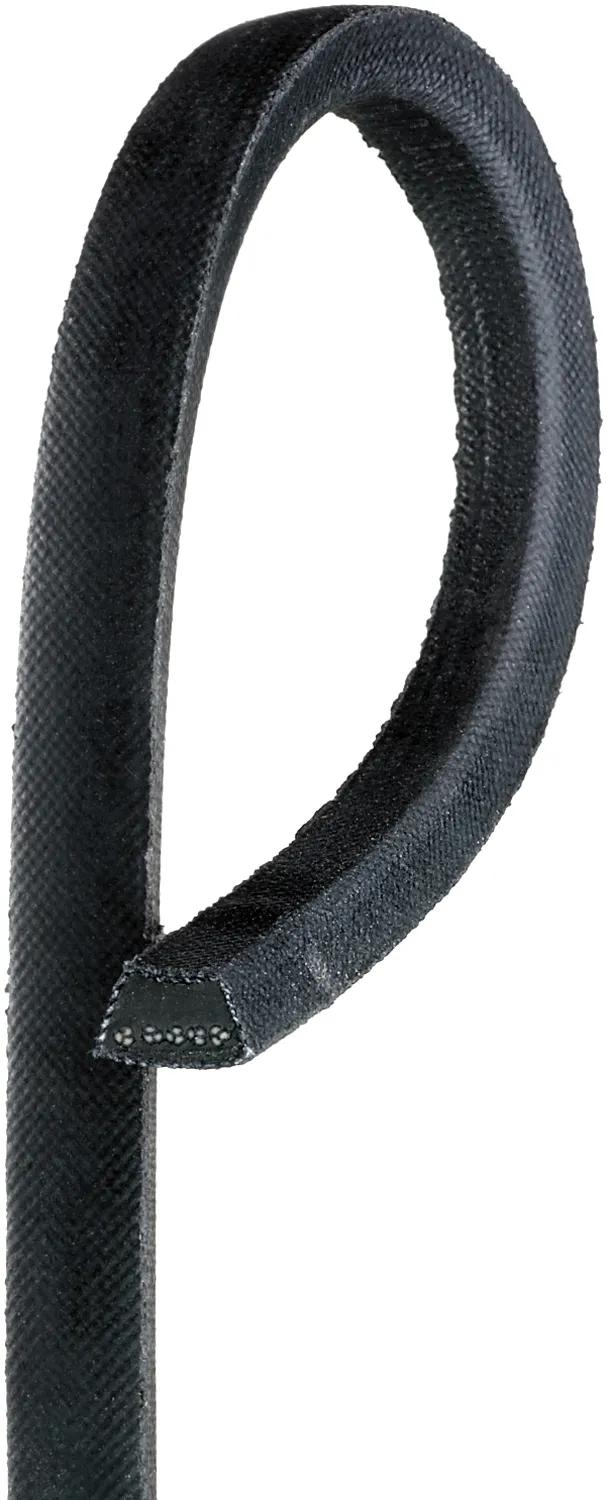

FHP Low Horse-Power V-Belt, L: 37.96 in, W: 1/2 in

#GAT2380

Product Overview


MINIMUM OUTPUT. MAXIMUM PERFORMANCE.: Whether you're driving auxiliary automotive applications like electric windows, windshield wipers, and central locking systems, or you're powering drive pumps, power tools, and domestic appliance applications, your FHP motors and light-duty applications still demand the superior performance, reliability, and quality that you'll only find with Gates ENGINEERED WITH YOUR LIGHT-DUTY APPLICATION IN MIND.: We've engineered the Gates Truflex belt with all the qualities of a great belt, including flexibility, durability, and resistance to contaminants. It includes a thin profile, designed for small-diameter sheaves, and a lower cord positioning to improve belt performance on light-duty belt drives and in your backside idler applications.

See More
See Less

Features & Benefits


  • Meets RMA oil and heat-resistant standards and static conductivity requirements
  • Runs with smooth, quiet operation
  • The Flex-Weave Cover is constructed for longer cover life, providing the belt’s core with extended protection from oil, dirt, and heat
  • Flex-bonded cords are strongly secured to the belt’s body for equal load distribution and absorption of bending stress without cord deterioration
  • Gates Curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear, and increased belt life
  • Note: Truflex belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3)
  • Truflex belts are offered in cross sections 2L (0), 3L (1), 4L (2), 5L (3).

Specifications


Angle 37 deg
Belt Top Width 1/2 to 5/8 in (1.27 to 1.6 cm)
Construction Wrapped
Length 38 in
Material Polyester
Notched No
# of Grooves 1
Section 4L
Length Range 35 to 39.99 in
Type FHP Low Horse-Power V-Belt
Weight 0.2 lb (0.09 kg)
Width 1/2 in (1.27 cm)

Interchanges & Equivalent parts:


007354
015310
02016
02032177
06034
1008137
102761
123421
13648
139970
145179
15072
15911
1968
2001046
202038
2100060
2116053
23761
245019
00406
0387104
081138
101008
108022
13245
133520
165114
165118
1852
198143
205038
24387
26022
0510003052
0651377707
06589660
065S89660
10100800
1081A4
109-094
10A2351
11A35
12-5071
13R960
159426C1
159A19
1668K
1CD66
1M038
20001046
2125A
271104
27141
27182
27421P
286086
286087
286089
2873
2889
2E15
301604
3030005284634
304380
308388
320272204
3203
32406C
35138
361
371G101
38445
3A7
4166283
41838
42889
44157
447R21
5597H
560122
5908A11
5927120
5H57964A380
60011A
6077119
634095
63A68
64533
66201D2
6A125185
6L141
7073B
72026266
733918
74380
75-738
75138
76FF12
776A2471
816053
84601
8C202
8X378
8X379
8X380
8X381
8X487
90720
94025
9973380
A-4L380
A1451712
A21604
A80347
AB160
AC10790
AP23761
B157A
B20081
B4280630
B4868
B4L-380
BD30F
BT0038
BT38
C00589
C2602
C4A149
C4A168
C4A185
D2873
DB4L380
E11A
E337B
F238
FA38
FHP136
HB3
K5705475AD14
K5705475AD15
84002380
