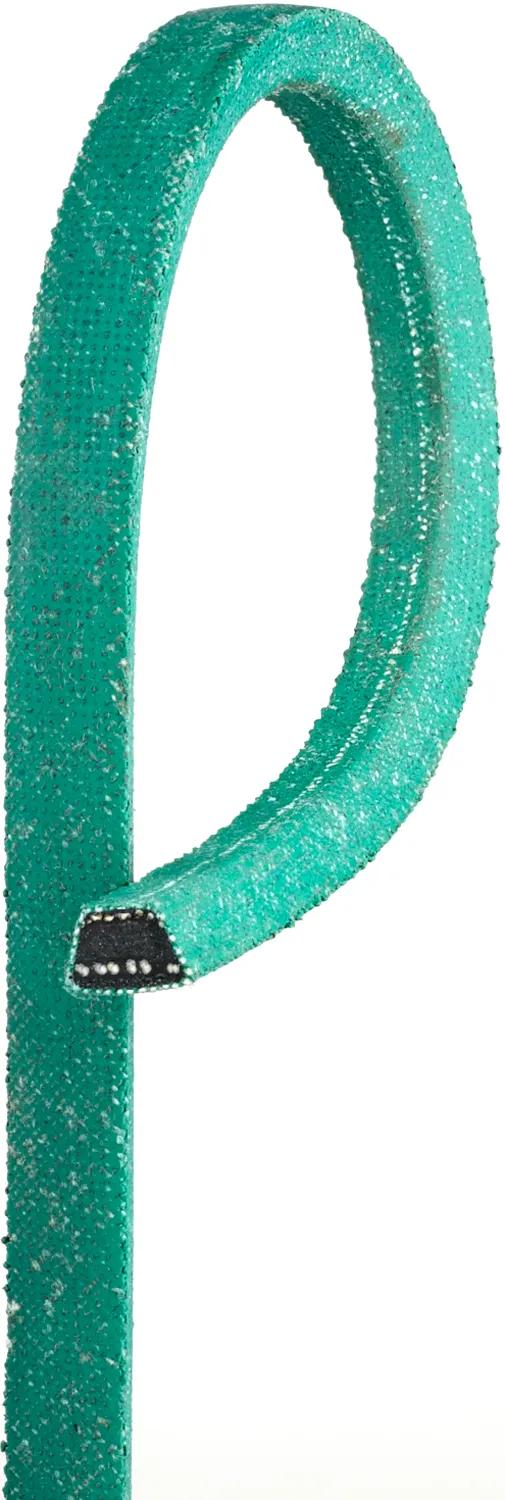

FHP Medium Horse-Power V-Belt, L: 24.9 in, W: 3/8 in
#GAT6725
Product Overview
GROW YOUR V-BELT SALES: Gates does more than just provide durable, OE-equivalent lawn and garden and light-duty application aftermarket parts. We provide our partners and distributors with the support, resources, and tools required to grow a business. Our PoweRated V-Belts provide self-service to customers, helping them select the right belt for the job, featuring 70 of our top-selling sizes, and making maximum use of your available floor space. And when you purchase the full assortment, we'll send you the display for free.
Features & Benefits
- Designed with bareback construction for smooth clutching on shock loaded, backside-idler-driven equipment
- Distinct green color bareback low friction wrapping provide smooth clutching operation
- Low cord positioning in thin profile gives extreme flexibility
- Fabric reinforcement on the bottom ensures high crack resistance if back idler is used
- Aramid Tensile Cords combine limited stretch with extraordinary strength and durability
- PoweRated V-Belts can be substituted for equivalent sizes of Gates Truflex V-Belts
- Meets RMA oil and heat-resistant standards, but not for static conductivity
- PoweRated belts do not meet RMA requirements for static conductivity.
Specifications
| Angle | 37 deg |
| Belt Top Width | 3/8 to 1/2 in (0.97 to 1.27 cm) |
| Construction | Wrapped |
| Length | 25 in |
| Material | Aramid |
| Notched | No |
| # of Grooves | 1 |
| Section | 3L |
| Length Range | 25 to 29.99 in |
| Temperature Range | -22°F to 140°F (-30°C to 60°C) |
| Type | FHP Medium Horse-Power V-Belt |
| Width | 3/8 in (0.97 cm) |
Interchanges & Equivalent parts:
| 013254 |
| 09363 |
| 0M025 |
| 1009266 |
| 10100114 |
| 103345 |
| 108160 |
| 109-012 |
| 109-702 |
| 11951 |
| 12-5008 |
| 12-7430 |
| 1250T702 |
| 1250T702060 |
| 13667 |
| 142695 |
| 14403 |
| 15650622 |
| 15650662 |
| 1597 |
| 1715611 |
| 1719269 |
| 208525 |
| 238-025 |
| 27157 |
| 2768866 |
| 287105 |
| 3006906 |
| 310725 |
| 313254 |
| 34382 |
| 38-250 |
| 38X250 |
| 3H250 |
| 3L250 |
| 3L250P |
| 3L250W |
| 3LK250 |
| 4166284 |
| 600154 |
| 6077159 |
| 6X250 |
| 7-3H250 |
| 7032 |
| 74630 |
| 75-325 |
| 75-625 |
| 8107 |
| 83245 |
| 83250 |
| 954-05090 |
| 9R635 |
| 9RL635 |
| B3L-250 |
| D3 |
| DB3L250 |
| FB5 |
| FO25 |
| H142695 |
| H820 |
| K5705475AF9 |
| KK5705475AR9 |
| L325 |
| LG38250 |
| M6127 |
| MH122 |
| P325 |
| STD303250 |
| TY4351 |
| W00664 |
| XDV38-250 |
| 0235 |
| 84236725 |
