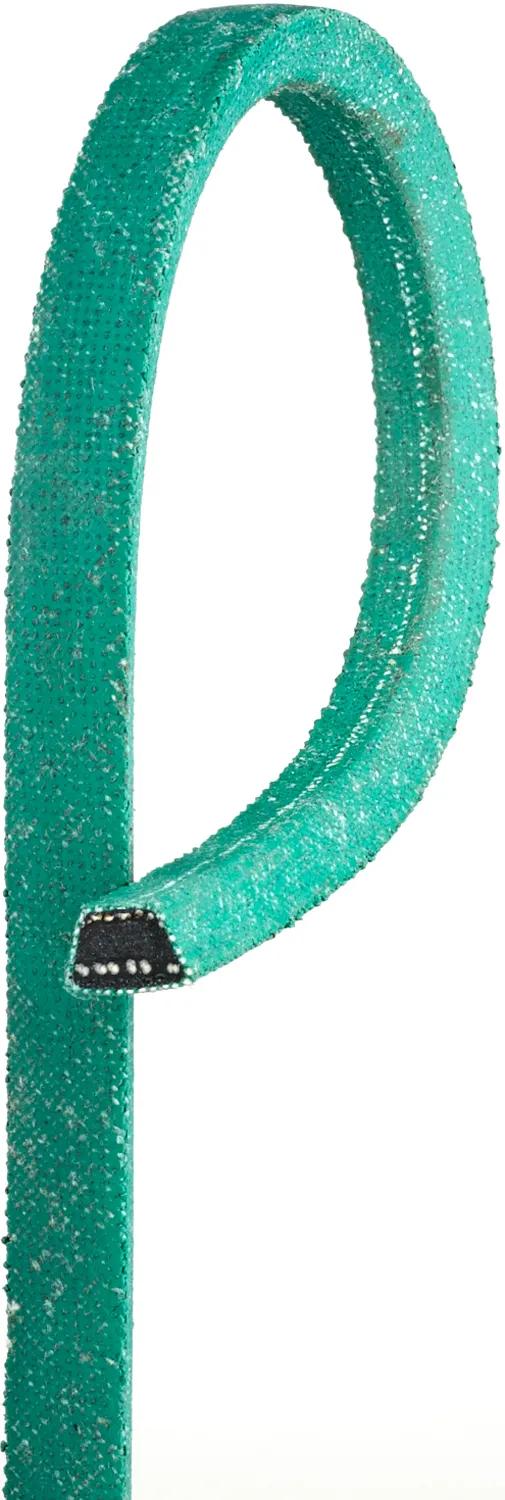

FHP Medium Horse-Power V-Belt, L: 36.13 in, W: 21/32 in
#GAT6936
Product Overview
GROW YOUR V-BELT SALES: Gates does more than just provide durable, OE-equivalent lawn and garden and light-duty application aftermarket parts. We provide our partners and distributors with the support, resources, and tools required to grow a business. Our PoweRated V-Belts provide self-service to customers, helping them select the right belt for the job, featuring 70 of our top-selling sizes, and making maximum use of your available floor space. And when you purchase the full assortment, we'll send you the display for free.
Features & Benefits
- Designed with bareback construction for smooth clutching on shock loaded, backside-idler-driven equipment
- Distinct green color bareback low friction wrapping provide smooth clutching operation
- Low cord positioning in thin profile gives extreme flexibility
- Fabric reinforcement on the bottom ensures high crack resistance if back idler is used
- Aramid Tensile Cords combine limited stretch with extraordinary strength and durability
- PoweRated V-Belts can be substituted for equivalent sizes of Gates Truflex V-Belts
- Meets RMA oil and heat-resistant standards, but not for static conductivity
- PoweRated belts do not meet RMA requirements for static conductivity.
Specifications
| Angle | 35 deg |
| Belt Top Width | 5/8 to 3/4 in (1.6 to 1.91 cm) |
| Construction | Wrapped |
| Length | 36 in |
| Material | Aramid |
| Notched | No |
| # of Grooves | 1 |
| Section | 5L |
| Length Range | 35 to 39.99 in |
| Temperature Range | -22°F to 140°F (-30°C to 60°C) |
| Type | FHP Medium Horse-Power V-Belt |
| Weight | 0.35 lb (0.16 kg) |
| Width | 21/32 in (1.68 cm) |
Interchanges & Equivalent parts:
| 1-413096 |
| 000355 |
| 010336 |
| 010339 |
| 0339 |
| 0399 |
| 047765 |
| 072045 |
| 050440 |
| 1013853 |
| 103032 |
| 103647 |
| 106181 |
| 106649 |
| 108092 |
| 109-174 |
| 109226 |
| 10X359 |
| 11290 |
| 11984 |
| 11AC936A |
| 12-5163 |
| 12-7581 |
| 123829 |
| 12904 |
| 14041 |
| 15077 |
| 15153360 |
| 16R915 |
| 16RL915 |
| 1712912 |
| 188H |
| 20002144 |
| 2036 |
| 2160083 |
| 224301723771 |
| 22431723671 |
| 22431723771 |
| 22431731671 |
| 22432738C31 |
| 22432V03000 |
| 258-036 |
| 265-257 |
| 265-842 |
| 265-859 |
| 29100749 |
| 2J78 |
| 2M036 |
| 30206 |
| 3030005284519 |
| 303078 |
| 308458 |
| 310538 |
| 3405503 |
| 34X102 |
| 350116 |
| 399 |
| 3S4027 |
| 413096 |
| 41878 |
| 4360 |
| 58-360 |
| 58X360 |
| 5932 |
| 5957 |
| 5H360 |
| 5L360 |
| 5L360P |
| 5L360W |
| 5LK360 |
| 6077035 |
| 61TR182 |
| 62411 |
| 7-078069 |
| 7-5H360 |
| 72045 |
| 75-231 |
| 75-536 |
| 75-675 |
| 75-836 |
| 7540199 |
| 76498 |
| 8138 |
| 81B033 |
| 8297S |
| 85360 |
| 857763 |
| 8807 |
| 90790 |
| 92126 |
| 9540453 |
| A-5L360 |
| A2030 |
| A430880 |
| A5932 |
| B5L-360 |
| BD30B |
| C4A11 |
| C4A2 |
| 339 |
| DB5L360 |
| EA103682 |
| ES391 |
| FB36 |
| K5705475AE5 |
| L536 |
| LG58360 |
| M42226 |
| MS392435L360 |
| MV470 |
| SB35 |
| UB1500 |
| UB1500ATC |
| VB1500 |
| VB1500ATC |
| XDV58-360 |
| 71178 |
| R1086 |
| TY4424 |
| U5932 |
| V20157 |
| V2513 |
| ZBK360 |
| 336 |
| 5070A27 |
| 84236936 |
