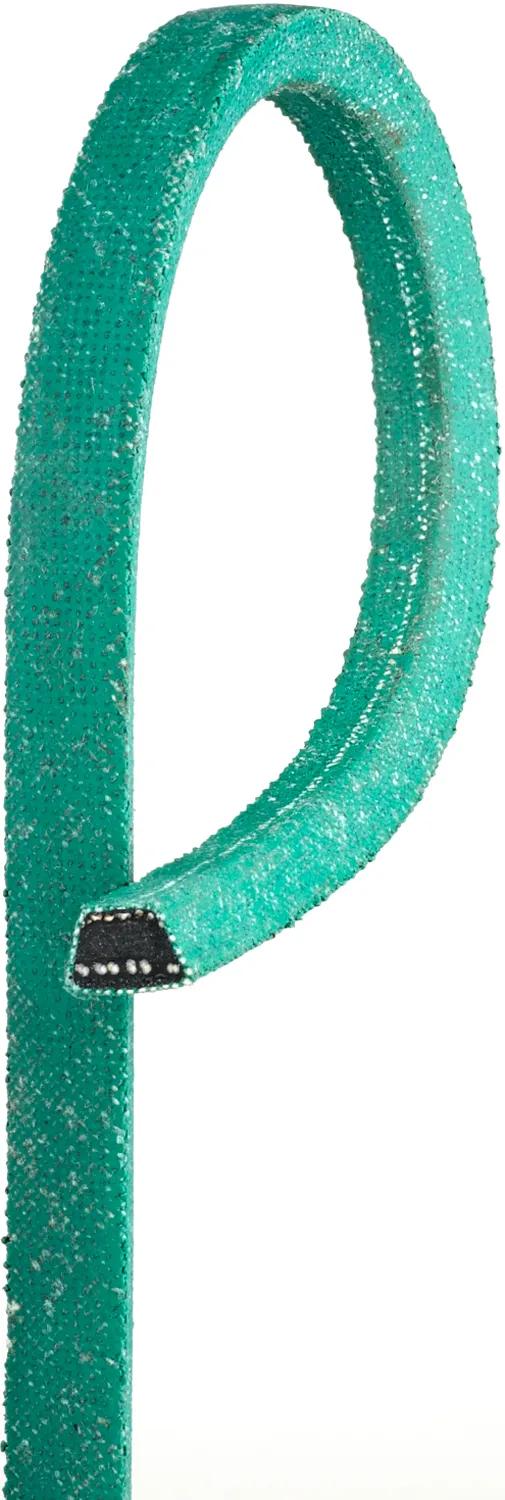

FHP Medium Horse-Power V-Belt, L: 62.15 in, W: 21/32 in
Product Overview
GROW YOUR V-BELT SALES: Gates does more than just provide durable, OE-equivalent lawn and garden and light-duty application aftermarket parts. We provide our partners and distributors with the support, resources, and tools required to grow a business. Our PoweRated V-Belts provide self-service to customers, helping them select the right belt for the job, featuring 70 of our top-selling sizes, and making maximum use of your available floor space. And when you purchase the full assortment, we'll send you the display for free. OE-EQUIVALENT FOR OUTDOOR EQUIPMENT: From the largest agricultural seed planters to the smallest backyard leaf blowers, we've developed OE parts and equipment components with top brands in the outdoor equipment industry from around the world. When you equip your lawn and garden tools with Gates, you can trust your aftermarket solutions to have the same quality, function, and performance as the OEM assembly line.
Features & Benefits
- Designed with bareback construction for smooth clutching on shock loaded, backside-idler-driven equipment
- Distinct green color bareback low friction wrapping provide smooth clutching operation
- Low cord positioning in thin profile gives extreme flexibility
- Fabric reinforcement on the bottom ensures high crack resistance if back idler is used
- Aramid Tensile Cords combine limited stretch with extraordinary strength and durability
- PoweRated V-Belts can be substituted for equivalent sizes of Gates Truflex V-Belts
- Meets RMA oil and heat-resistant standards, but not for static conductivity
- PoweRated belts do not meet RMA requirements for static conductivity.
- PoweRated belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used.
Specifications
| Angle | 37 deg |
| Belt Top Width | 5/8 to 3/4 in (1.6 to 1.91 cm) |
| Construction | Wrapped |
| Length | 62 in |
| Material | Aramid |
| Notched | No |
| # of Grooves | 1 |
| Recommended Sheaves | Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch |
| Section | 5L |
| Length Range | 60 to 64.99 in |
| Temperature Range | -22°F to 140°F (-30°C to 60°C) |
| Type | FHP Medium Horse-Power V-Belt |
| Weight | 0.59 lb (0.27 kg) |
| Width | 21/32 in (1.68 cm) |
Interchanges & Equivalent parts:
| 061852 |
| 1023886M1 |
| 1034684 |
| 1034686 |
| 107120 |
| 108118 |
| 109-200 |
| 12-5189 |
| 12-7607 |
| 12034 |
| 123855 |
| 16R1575 |
| 16RL1575 |
| 20599 |
| 20936 |
| 20939 |
| 22431C |
| 254157 |
| 258-062 |
| 284360 |
| 2M062 |
| 2T25 |
| 3030005284641 |
| 325620 |
| 333719 |
| 45846 |
| 520104 |
| 523B869P6 |
| 5880013 |
| 5880050 |
| 58X620 |
| 5H57965A620 |
| 5H620 |
| 5L620 |
| 5L620P |
| 5L620W |
| 5LK620 |
| 603067 |
| 616007 |
| 7-078019 |
| 7-5H620 |
| 700718720 |
| 75-131 |
| 75-862 |
| 7540166 |
| 7540228 |
| 754166 |
| 754228 |
| 8915 |
| 9540228 |
| 97148 |
| A-5L620 |
| A70226 |
| BT0052 |
| BT122 |
| BT52 |
| C4A18 |
| C4A26 |
| C4A34 |
| C4A55 |
| DB5L620 |
| DW62 |
| EC5184 |
| FB62 |
| KR20BC062 |
| L562 |
| LB620B |
| LG58620 |
| MS392435L620 |
| R10841 |
| R4003 |
| S863529 |
| S863820 |
| STD325620 |
| WL6X46 |
| XDV58-620 |
| B5L-620 |
| 84236962 |
