2 POINTS
Raccord 10C5-10Rfjsx90L
#GATG34213-1010
Sommaire du produit

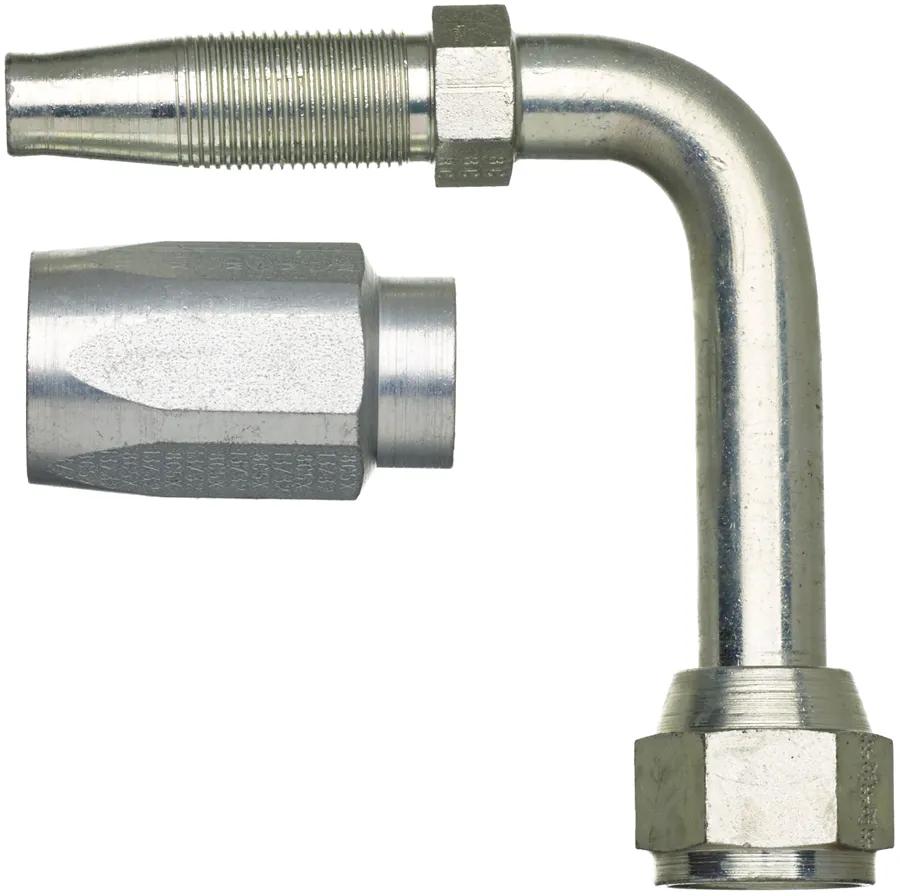

Field Attachable Style Couplings for Making Assemblies Using Gates C5C, C5CXH, C5D, & C5M Hoses w/o a Crimper.
Caractéristiques et avantages
- Acier au carbone plaqué zinc conforme à la norme DOT FMVSS 106-74 Type AII.
Spécifications
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Dual Seat Female JIC 37/SAE 45 Flare Swivel - 90 Bent Tube - Steel |
| Cut Off (in) – C | 2-1/8 in |
| Drop (in.) | 2-9/16 in |
| Hose Recommendation | Gates C5C; C5D; C5CHX; C5M |
| Industrial Description | 10C5-10RFJSX90L |
| Inside Diameter | 1/2 in |
| Length | 3-13/32 in |
| Material | Steel |
| Écrou hexagonal (po) – H2 | 1/32 in |
| Dimension de la clé d'écrou | 1 in |
| Tige hexagonale (po) | 3/4 in |
| Type | Field Attach C5CXH; C5C; C5D; C5M Dual Seat Female JIC 37/SAE 45 Flare Swivel - 90 deg Bent Tube |
Interchanges et pièces équivalentes:
| 18440-1010 |
| 184401010 |
| GYH18440-1010 |
| 190295-10S |
| G34213-1010 |
| 723520235 |
