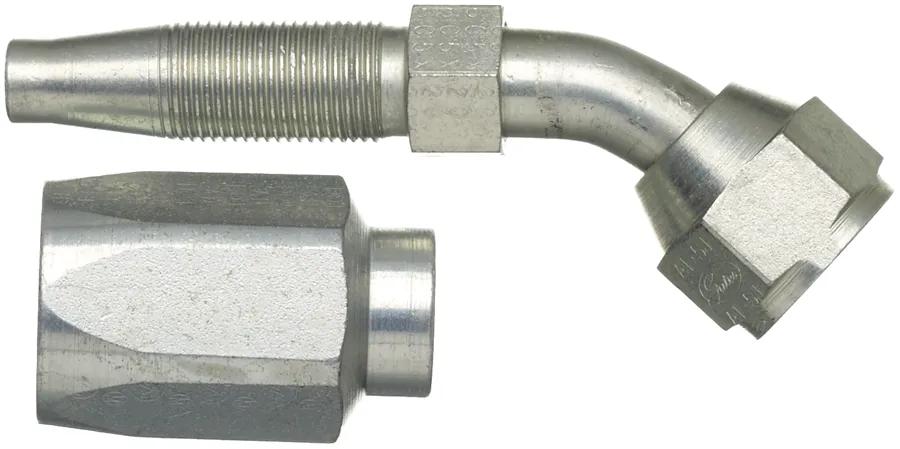

Field Attach. Coupling C5CXH; C5C; C5D; C5M, 12C5X-12RFJX45S
#GATG34175-1212
Product Overview
Field Attachable Style Couplings for Making Assemblies Using Gates C5C, C5CXH, C5D, & C5M Hoses w/o a Crimper.
Features & Benefits
- Zinc Plated Carbon Steel That Meets DOT FMVSS 106-74 Type AII.
Specifications
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Female JIC 37 Flare Swivel - 45 Bent Tube - Steel |
| Cut Off (in) – C | 2-45/64 in (6.86 cm) |
| Drop (in.) | 25/32 in (1.98 cm) |
| Hose Recommendation | Gates C5C; C5D; C5CHX; C5M |
| Industrial Description | 12C5X-12RFJX45S |
| Inside Diameter | 5/8 in (1.6 cm) |
| Length | 4-17/64 in (10.85 cm) |
| Material | Steel |
| Nut Hex (in) – H2 | 3/64 in (0.13 cm) |
| Nut Hex Size | 1-1/4 in (3.18 cm) |
| Stem Hex (in.) | 7/8 in (2.24 cm) |
| Thread | 1-1/16 in-12 |
| Type | Field Attach C5CXH; C5C; C5D; C5M Female JIC 37 Flare Swivel - 45 deg Bent Tube |
Interchanges & Equivalent parts:
| 18420-1212 |
| 184201212 |
| GYH18420-1212 |
| 190265-12S |
| G34175-1212 |
| 723700535 |
