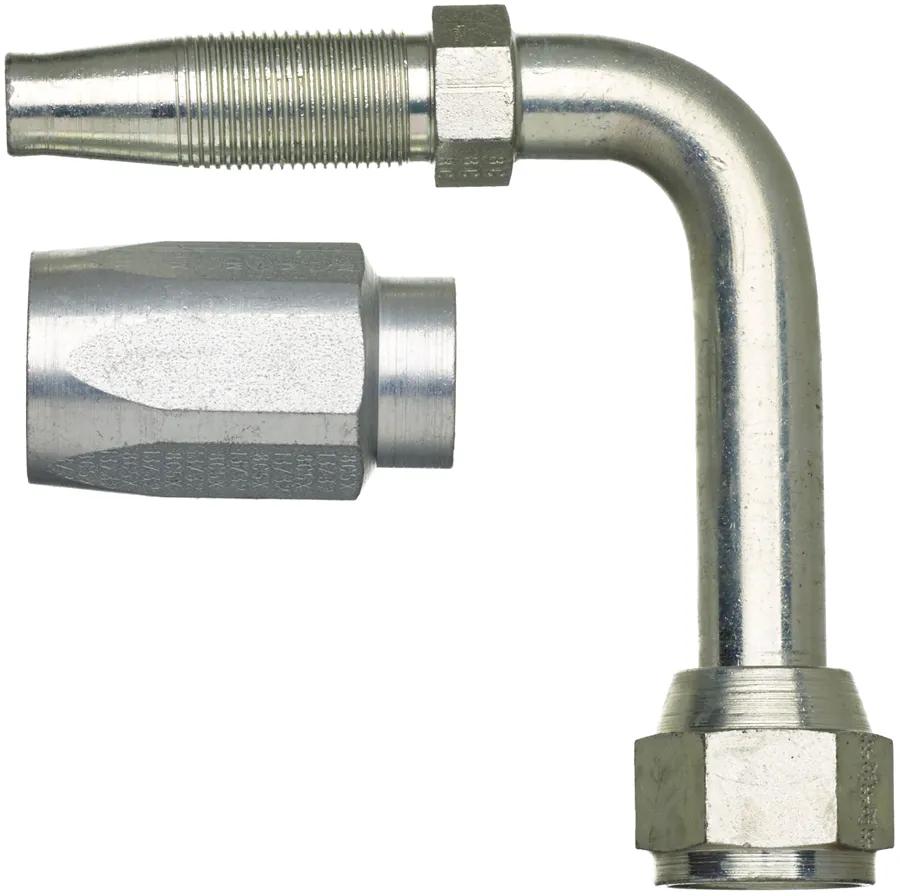

Field Attach. Coupling C5CXH; C5C; C5D; C5M, 12C5X-12RFJX90L
#GATG34181-1212
Product Overview
Field Attachable Style Couplings for Making Assemblies Using Gates C5C, C5CXH, C5D, & C5M Hoses w/o a Crimper.
Features & Benefits
- Zinc Plated Carbon Steel That Meets DOT FMVSS 106-74 Type AII.
Specifications
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Female JIC 37 Flare Swivel - 90 Bent Tube - Steel |
| Cut Off (in) – C | 2-21/32 in (6.76 cm) |
| Drop (in.) | 3-3/4 in (9.53 cm) |
| Hose Recommendation | Gates C5C; C5D; C5CHX; C5M |
| Industrial Description | 12C5X-12RFJX90L |
| Inside Diameter | 5/8 in (1.6 cm) |
| Length | 4-7/32 in (10.72 cm) |
| Material | Steel |
| Nut Hex (in) – H2 | 3/64 in (0.13 cm) |
| Nut Hex Size | 1-1/4 in (3.18 cm) |
| Stem Hex (in.) | 7/8 in (2.24 cm) |
| Thread | 1-1/16 in-12 |
| Type | Field Attach C5CXH; C5C; C5D; C5M Female JIC 37 Flare Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| 18440-1212 |
| 184401212 |
| GYH18440-1212 |
| 190260-12S |
| G34181-1212 |
| 723700555 |
