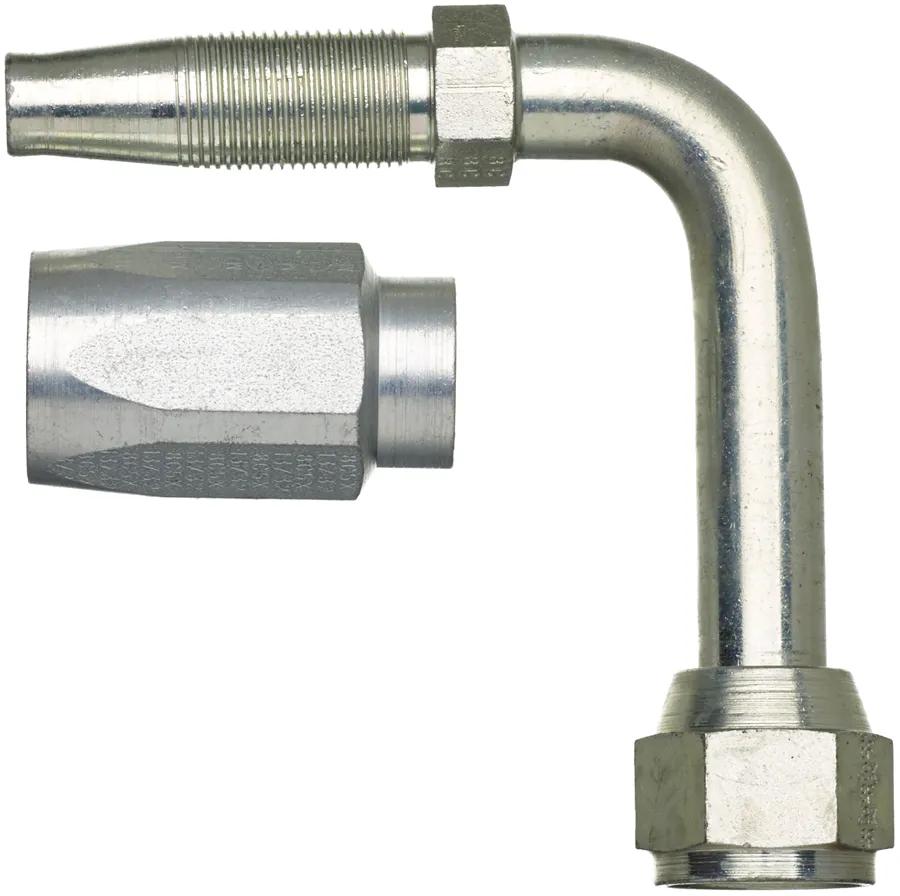

Field Attach. Coupling C5CXH; C5C; C5D; C5M, 16C5-16RFJX90
#GATG34180-1616
Product Overview
Field Attachable Style Couplings for Making Assemblies Using Gates C5C, C5CXH, C5D, & C5M Hoses w/o a Crimper.
Features & Benefits
- Zinc Plated Carbon Steel That Meets DOT FMVSS 106-74 Type AII.
Specifications
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Female JIC 37 Flare Swivel - 90 Bent Tube - Steel |
| Cut Off (in) – C | 2-49/64 in (7.04 cm) |
| Drop (in.) | 2-5/32 in (5.49 cm) |
| Hose Recommendation | Gates C5C; C5D; C5CHX; C5M |
| Industrial Description | 16C5-16RFJX90 |
| Inside Diameter | 7/8 in (2.24 cm) |
| Length | 3-61/64 in (10.03 cm) |
| Material | Steel |
| Nut Hex (in) – H2 | 1/16 in (0.15 cm) |
| Nut Hex Size | 1-1/2 in (3.81 cm) |
| Thread | 1-5/16 in-12 |
| Type | Field Attach C5CXH; C5C; C5D; C5M Female JIC 37 Flare Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| 18425-1616 |
| 184251616 |
| GYH18425-1616 |
| 190261-16S |
| G34180-1616 |
| 723586475 |
