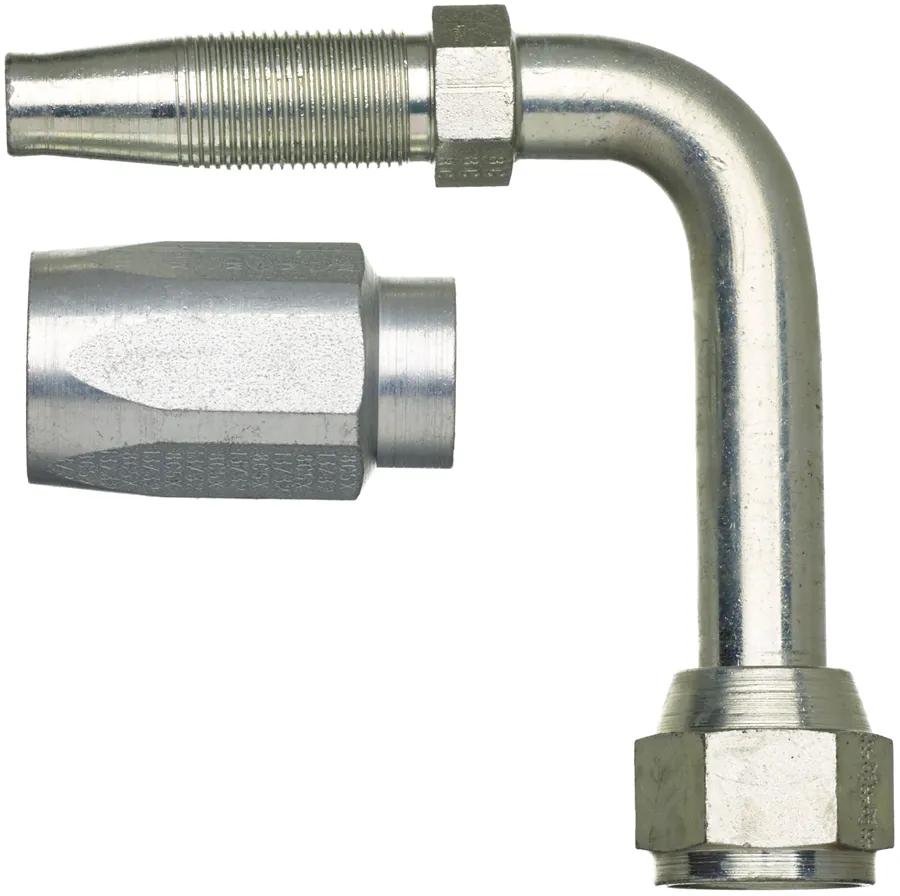

Field Attach. Coupling C5CXH; C5C; C5D; C5M, 16C5-16RFJX90L
#GATG34181-1616
Product Overview
Field Attachable Style Couplings for Making Assemblies Using Gates C5C, C5CXH, C5D, & C5M Hoses w/o a Crimper.
Features & Benefits
- Zinc Plated Carbon Steel That Meets DOT FMVSS 106-74 Type AII.
Specifications
| Description d'accouplement | Field Attach C5CXH, C5C, C5D, C5M Female JIC 37 Flare Swivel - 90 Bent Tube - Steel |
| Coupure (po) – C | 2-49/64 po (7,04 cm) |
| Chute (po.) | 4-11/32 po (11,02 cm) |
| Recommandations pour le tuyau | GatesC5C ; C5D ; C5CHX; C5M |
| Description industrielle | 16C5-16RFJX90L |
| Diamètre intérieur | 7/8 po (2,24 cm) |
| Longueur | 3-61/64 po (10,03 cm) |
| Matériel | Acier |
| Écrou hexagonal (po) – H2 | 1/16 po (0,15 cm) |
| Dimension de la clé d'écrou | 1-1/2 po (3,81 cm) |
| Filetage | 1-5/16 po-12 |
| Type | Raccord de terrain C5CXH ; C5C ; C5D ; C5M Raccord pivotant femelle JIC 37 Flare - Tube coudé à 90 degrés - Acier |
Interchanges & Equivalent parts:
| 18440-1616 |
| 184401616 |
| GYH18440-1616 |
| 190260-16S |
| G34181-1616 |
| 723586482 |
