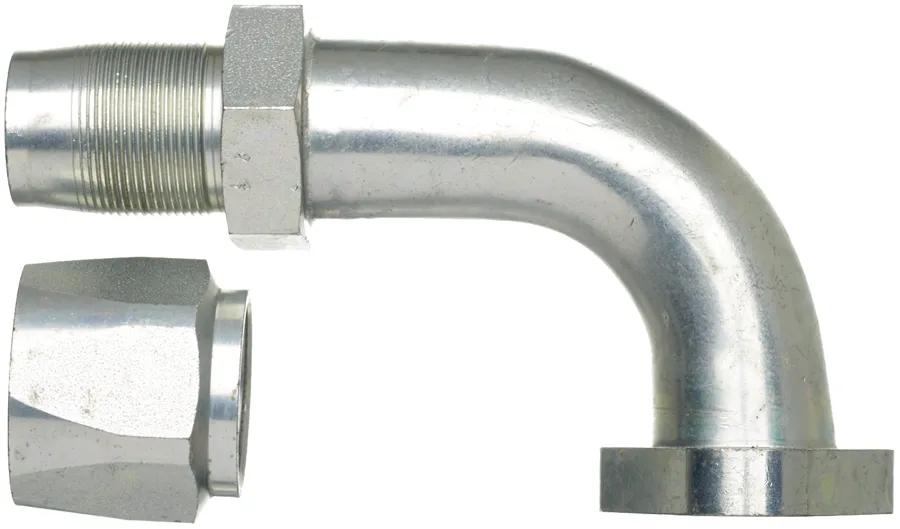

Field Attach. Coupling C5CXH; C5C; C5D; C5M, 20C5-20RFL90S
#GATG34342-2020
Product Overview
Field Attachable Style Couplings for Making Assemblies Using Gates C5C, C5CXH, C5D, & C5M Hoses w/o a Crimper.
Features & Benefits
- Zinc Plated Carbon Steel That Meets DOT FMVSS 106-74 Type AII.
Specifications
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Special Flange - 90 - Engine Oil Connection (Code 61-2 Bolt) |
| Cut Off (in) – C | 3-61/64 in (10.03 cm) |
| Drop (in.) | 2-1/2 in (6.35 cm) |
| Hose Recommendation | Gates C5C; C5D; C5CHX; C5M |
| Industrial Description | 20C5-20RFL90S |
| Inside Diameter | 1-1/8 in (2.87 cm) |
| Length | 4-61/64 in (12.57 cm) |
| Material | Steel |
| Stem Hex (in.) | 1-9/16 in (3.96 cm) |
| Type | Field Attach C5CXH; C5C; C5D; C5M Female Flat-Face Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| G34342-2020 |
