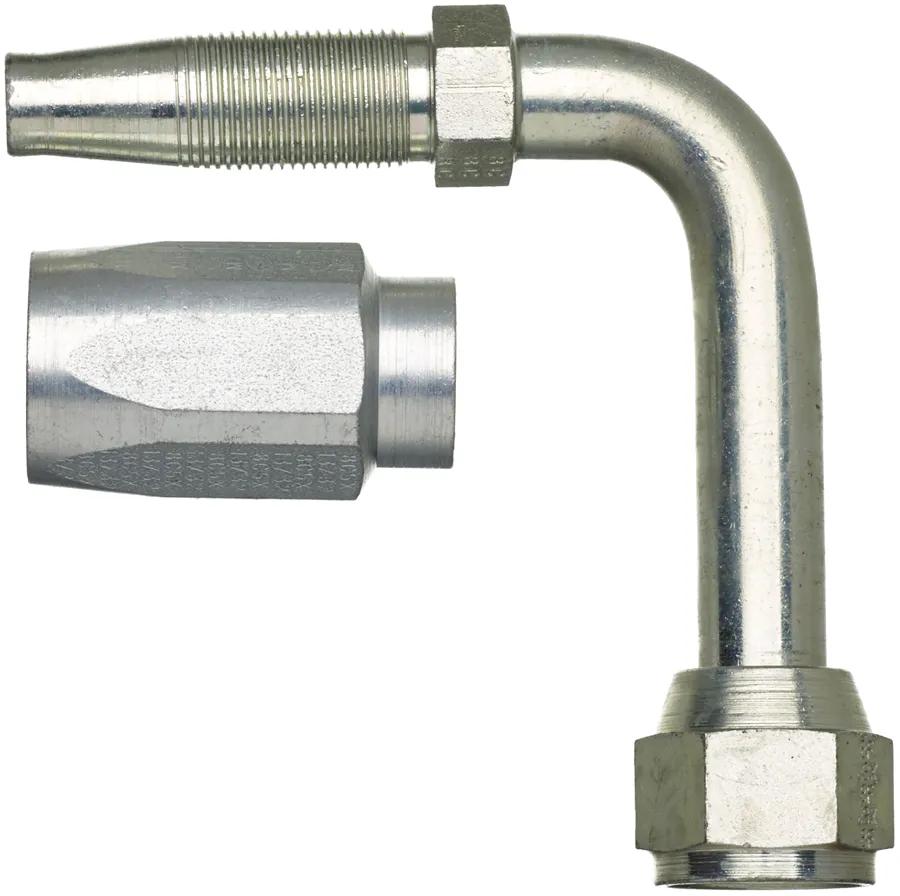

Field Attach. Coupling C5CXH; C5C; C5D; C5M, 4C5-4RFJSX90L
#GATG34213-0404
Product Overview
Field Attachable Style Couplings for Making Assemblies Using Gates C5C, C5CXH, C5D, & C5M Hoses w/o a Crimper.
Features & Benefits
- Zinc Plated Carbon Steel That Meets DOT FMVSS 106-74 Type AII.
Specifications
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Dual Seat Female JIC 37/SAE 45 Flare Swivel - 90 Bent Tube - Steel |
| Cut Off (in) – C | 1-5/64 in (2.74 cm) |
| Drop (in.) | 1-13/16 in (4.6 cm) |
| Hose Recommendation | Gates C5C; C5D; C5CHX; C5M |
| Industrial Description | 4C5-4RFJSX90L |
| Inside Diameter | 3/16 in (0.48 cm) |
| Length | 1-25/32 in (4.52 cm) |
| Material | Steel |
| Nut Hex (in) – H2 | 1/64 in (0.05 cm) |
| Nut Hex Size | 9/16 in (1.42 cm) |
| Stem Hex (in.) | 7/16 in (1.12 cm) |
| Type | Field Attach C5CXH; C5C; C5D; C5M Dual Seat Female JIC 37/SAE 45 Flare Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| 18440-0404 |
| 184400404 |
| GYH18440-0404 |
| 190295-4S |
| G34213-0404 |
| 723520205 |
