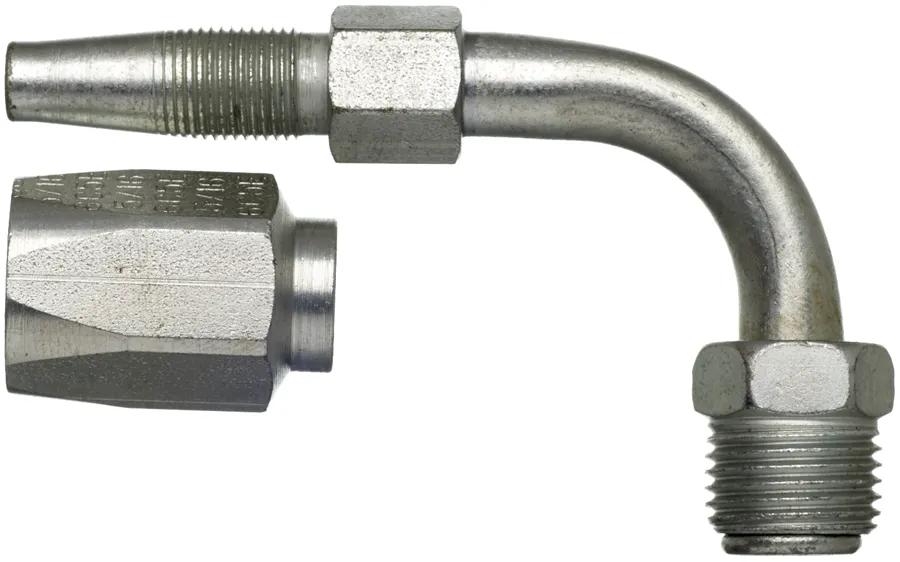

Field Attach. Coupling C5CXH; C5C; C5D; C5M, 5C5X-5RMIX90-042
#GATG34504-0505
Product Overview
Field Attachable Style Couplings for Making Assemblies Using Gates C5C, C5CXH, C5D, & C5M Hoses w/o a Crimper.
Features & Benefits
- Zinc Plated Carbon Steel That Meets DOT FMVSS 106-74 Type AII.
Specifications
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Male SAE 45 Flare Inverted Swivel - 90 Bent Tube - Steel |
| Cut Off (in) – C | 1-21/32 in (4.22 cm) |
| Drop (in.) | 1-21/32 in (4.22 cm) |
| Hose Recommendation | Gates C5C; C5D; C5CHX; C5M |
| Industrial Description | 5C5X-5RMIX90-042 |
| Inside Diameter | 1/4 in (0.64 cm) |
| Length | 2-7/16 in (6.2 cm) |
| Material | Steel |
| Nut Hex (in) – H2 | 1/64 in (0.05 cm) |
| Nut Hex Size | 1/2 in (1.27 cm) |
| Stem Hex (in.) | 7/16 in (1.12 cm) |
| Type | Field Attach C5CXH; C5C; C5D; C5M Male SAE 45 Flare Inverted Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| 190235-5S |
| G34504-0505 |
| 723701265 |
