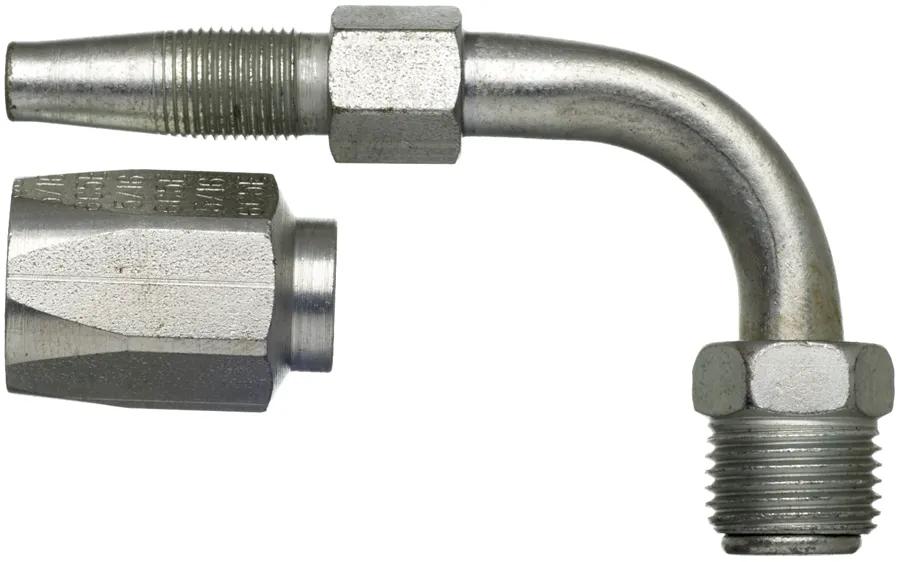

Field Attach. Coupling C5CXH; C5C; C5D; C5M, 8C5X-8RMIX90-045
#GATG34504-0808
Product Overview
Field Attachable Style Couplings for Making Assemblies Using Gates C5C, C5CXH, C5D, & C5M Hoses w/o a Crimper.
Features & Benefits
- Zinc Plated Carbon Steel That Meets DOT FMVSS 106-74 Type AII.
Specifications
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Male SAE 45 Flare Inverted Swivel - 90 Bent Tube - Steel |
| Cut Off (in) – C | 1-25/32 in (4.52 cm) |
| Drop (in.) | 1-25/32 in (4.52 cm) |
| Hose Recommendation | Gates C5C; C5D; C5CHX; C5M |
| Industrial Description | 8C5X-8RMIX90-045 |
| Inside Diameter | 13/32 in (1.04 cm) |
| Length | 2-29/32 in (7.39 cm) |
| Material | Steel |
| Nut Hex (in) – H2 | 1/32 in (0.08 cm) |
| Nut Hex Size | 3/4 in (1.91 cm) |
| Stem Hex (in.) | 5/8 in (1.6 cm) |
| Type | Field Attach C5CXH; C5C; C5D; C5M Male SAE 45 Flare Inverted Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| 190235-8S |
| G34504-0808 |
| 723701305 |
