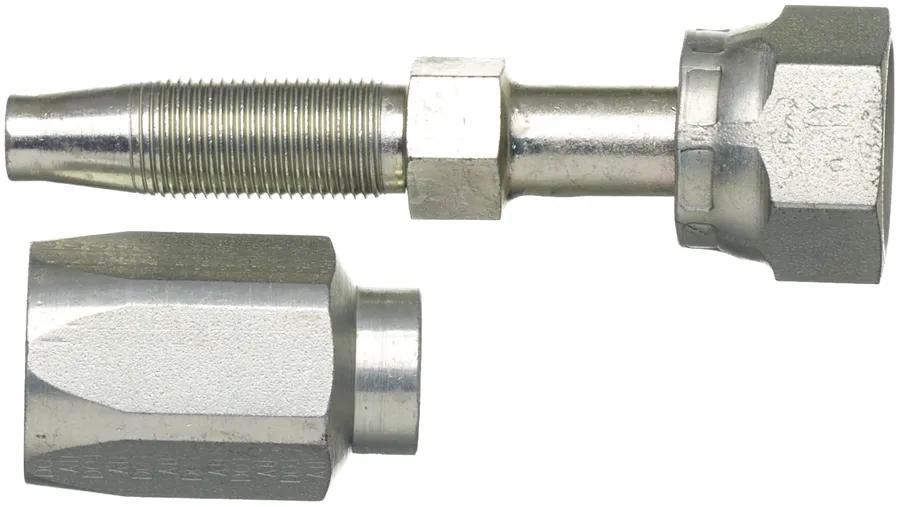

Field Attach. Coupling C5CXH; C5C; C5D; C5M, 90*, 4C5-4RFFORX
#GATG34230-0404
Product Overview
Field Attachable Style Couplings for Making Assemblies Using Gates C5C, C5CXH, C5D, & C5M Hoses w/o a Crimper.
Features & Benefits
- Zinc Plated Carbon Steel That Meets DOT FMVSS 106-74 Type AII.
- SAE J1453 O-Ring Face Seal.
Specifications
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Female Flat-Face Swivel - Steel |
| Cut Off (in) – C | 1-5/16 in (3.33 cm) |
| Hose Recommendation | Gates C5C; C5D; C5CHX; C5M |
| Industrial Description | 4C5-4RFFORX |
| Inside Diameter | 3/16 in (0.48 cm) |
| Length | 2-1/16 in (5.23 cm) |
| Material | Steel |
| Nut Hex (in) – H2 | 1/32 in (0.08 cm) |
| Nut Hex Size | 11/16 in (1.75 cm) |
| Stem Hex (in.) | 9/16 in (1.42 cm) |
| Type | Field Attach C5CXH; C5C; C5D; C5M Dual Seat Female JIC 37/SAE 45 Flare Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| G34230-0404 |
| 723801505 |
