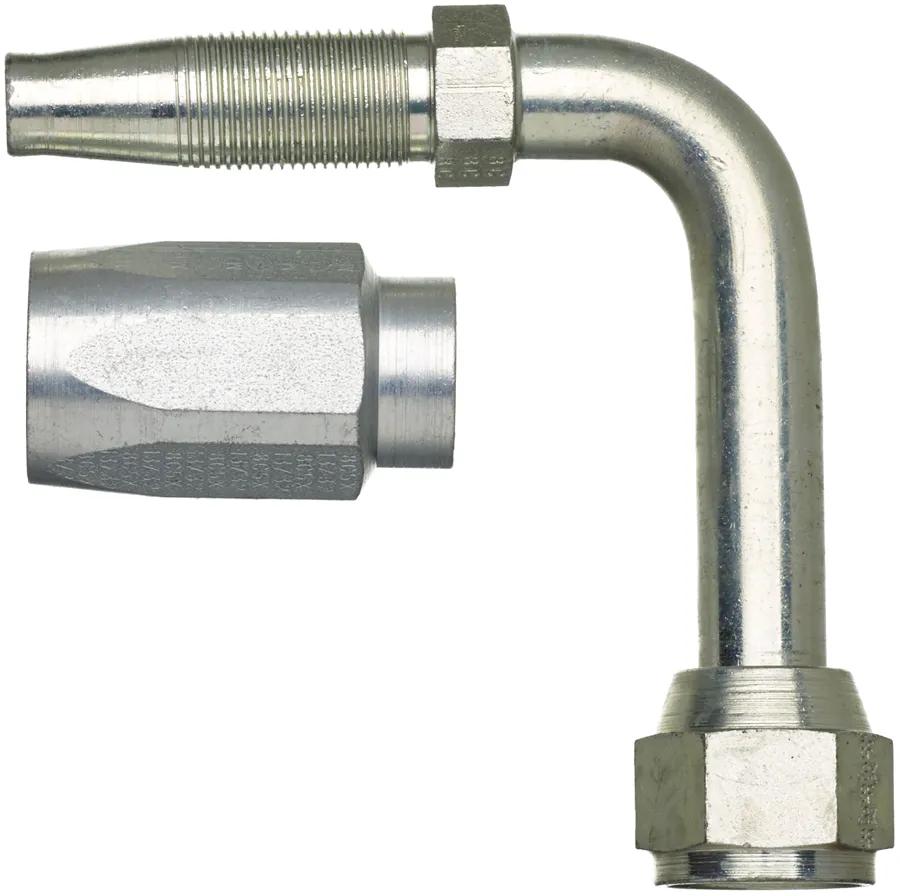

Field Attach. Coupling C5CXH; C5C; C5D; C5M, 90*, 6C5-6RFSX90L
#GATG34206-0606
Product Overview
Field Attachable Style Couplings for Making Assemblies Using Gates C5C, C5CXH, C5D, & C5M Hoses w/o a Crimper.
Features & Benefits
- Zinc Plated Carbon Steel That Meets DOT FMVSS 106-74 Type AII.
Specifications
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Female SAE 45 Flare Swivel - 90 Bent Tube - Steel |
| Cut Off (in) – C | 1-7/32 in (3.1 cm) |
| Drop (in.) | 2-3/16 in (5.56 cm) |
| Hose Recommendation | Gates C5C; C5D; C5CHX; C5M |
| Industrial Description | 6C5-6RFSX90L |
| Inside Diameter | 5/16 in (0.79 cm) |
| Length | 2-9/32 in (5.79 cm) |
| Material | Steel |
| Nut Hex (in) – H2 | 1/32 in (0.08 cm) |
| Nut Hex Size | 3/4 in (1.91 cm) |
| Stem Hex (in.) | 1/2 in (1.27 cm) |
| Type | Field Attach C5CXH; C5C; C5D; C5M Female SAE 45 Flare Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| 190301-6S |
| G34206-0606 |
| 723586497 |
