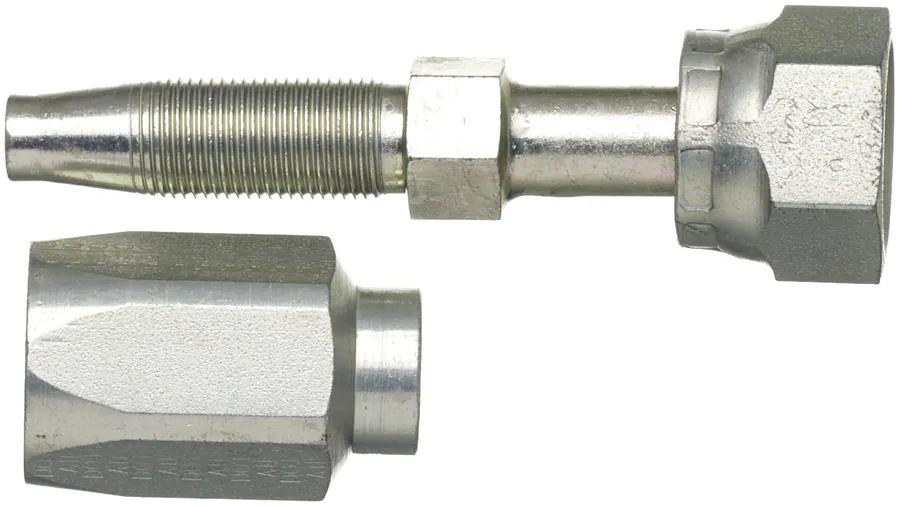

Field Attachable Coupling C5CXH; C5C; C5D; C5M, 10C5-10RFFORX
#GATG34230-1010
Product Overview
Field Attachable Style Couplings for Making Assemblies Using Gates C5C, C5CXH, C5D, & C5M Hoses w/o a Crimper.
Features & Benefits
- Zinc Plated Carbon Steel That Meets DOT FMVSS 106-74 Type AII.
- SAE J1453 O-Ring Face Seal.
Specifications
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Female Flat-Face Swivel - Steel |
| Cut Off (in) – C | 1-15/16 in (4.93 cm) |
| Hose Recommendation | Gates C5C; C5D; C5CHX; C5M |
| Industrial Description | 10C5-10RFFORX |
| Inside Diameter | 1/2 in (1.27 cm) |
| Length | 3-15/64 in (8.2 cm) |
| Material | Steel |
| Nut Hex (in) – H2 | 3/64 in (0.13 cm) |
| Nut Hex Size | 1-1/8 in (2.87 cm) |
| Stem Hex (in.) | 15/16 in (2.39 cm) |
| Type | Field Attach C5CXH; C5C; C5D; C5M Female Flat-Face Swivel |
Interchanges & Equivalent parts:
| G34230-1010 |
| 723801545 |
