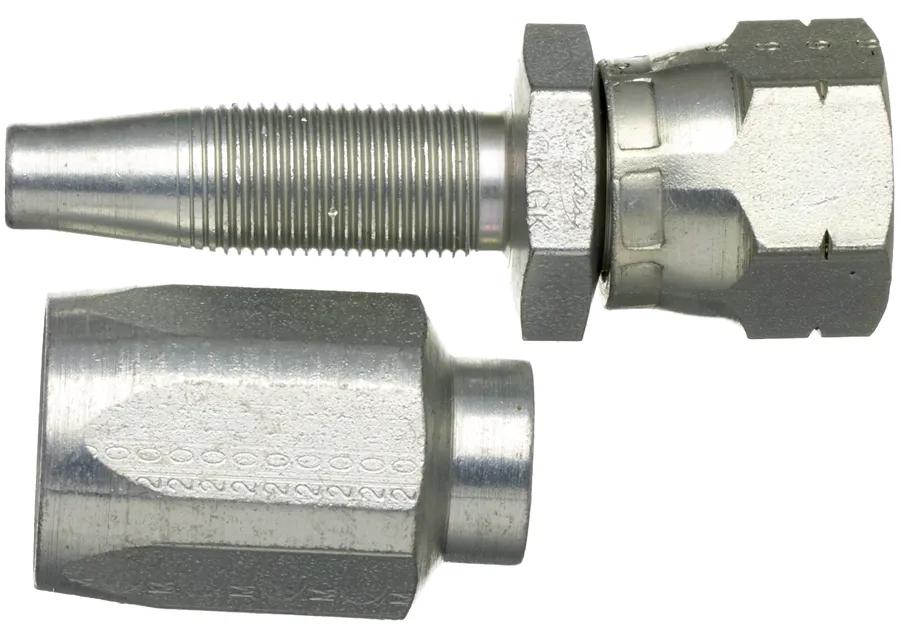

Field Attachable Coupling C5CXH; C5C; C5D; C5M, 10C5-12RFSX
#GATG34200-1012
Product Overview
Field Attachable Style Couplings for Making Assemblies Using Gates C5C, C5CXH, C5D, & C5M Hoses w/o a Crimper.
Features & Benefits
- Zinc Plated Carbon Steel That Meets DOT FMVSS 106-74 Type AII.
Specifications
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Female SAE 45 Flare Swivel - Steel |
| Cut Off (in) – C | 1-15/16 in (4.93 cm) |
| Hose Recommendation | Gates C5C; C5D; C5CHX; C5M |
| Industrial Description | 10C5-12RFSX |
| Inside Diameter | 1/2 in (1.27 cm) |
| Length | 3-7/32 in (8.18 cm) |
| Material | Brass |
| Nut Hex (in) – H2 | 3/64 in (0.13 cm) |
| Nut Hex Size | 1-1/4 in (3.18 cm) |
| Stem Hex (in.) | 1-1/4 in (3.18 cm) |
| Thread | 1-1/16 in-14 |
| Type | Field Attach C5CXH; C5C; C5D; C5M Female SAE 45 Flare Swivel |
Interchanges & Equivalent parts:
| G34200-1012 |
| 723804335 |
