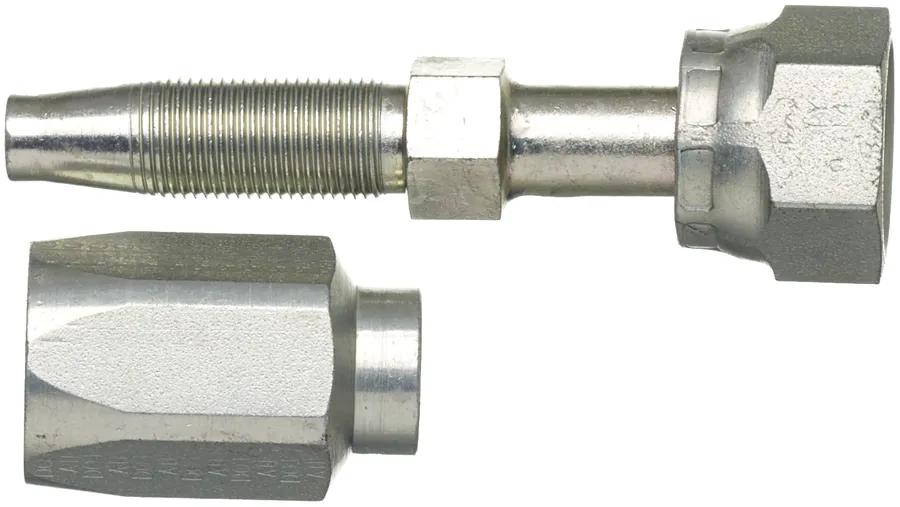

Field Attachable Coupling C5CXH; C5C; C5D; C5M, 12C5X-12RFFORX
#GATG34230-1212
Product Overview
Field Attachable Style Couplings for Making Assemblies Using Gates C5C, C5CXH, C5D, & C5M Hoses w/o a Crimper.
Features & Benefits
- Zinc Plated Carbon Steel That Meets DOT FMVSS 106-74 Type AII.
- SAE J1453 O-Ring Face Seal.
Specifications
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Female Flat-Face Swivel - Steel |
| Cut Off (in) – C | 2-1/8 in (5.41 cm) |
| Hose Recommendation | Gates C5C; C5D; C5CHX; C5M |
| Industrial Description | 12C5X-12RFFORX |
| Inside Diameter | 5/8 in (1.6 cm) |
| Length | 3-45/64 in (9.4 cm) |
| Material | Steel |
| Nut Hex (in) – H2 | 3/64 in (0.13 cm) |
| Nut Hex Size | 1-3/8 in (3.51 cm) |
| Stem Hex (in.) | 7/8 in (2.24 cm) |
| Thread | 1-3/16 in-12 |
| Type | Field Attach C5CXH; C5C; C5D; C5M Female Flat-Face Swivel |
Interchanges & Equivalent parts:
| G34230-1212 |
| 723701105 |
