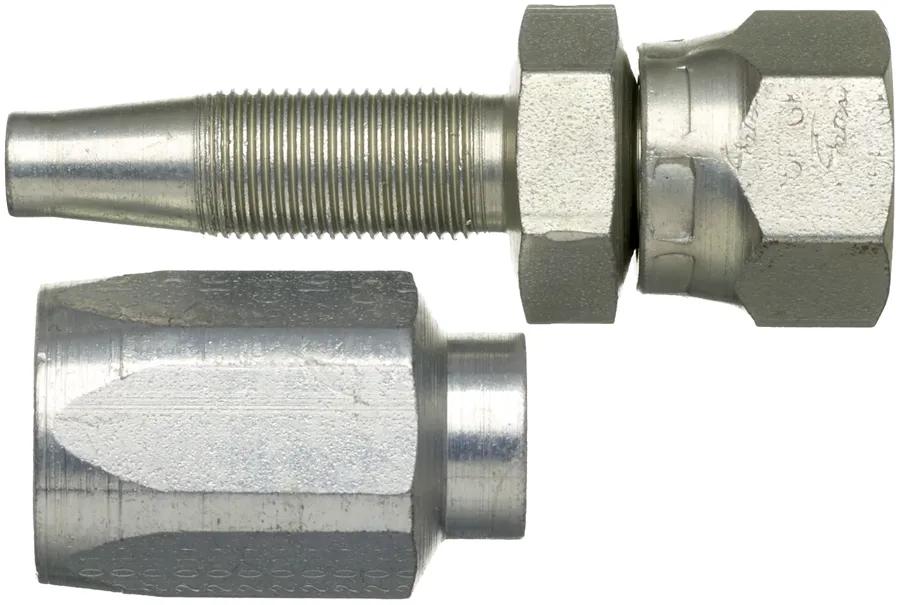

Field Attachable Coupling C5CXH; C5C; C5D; C5M, 24C5-24RFJX
#GATG34170-2424
Product Overview
Field Attachable Style Couplings for Making Assemblies Using Gates C5C, C5CXH, C5D, & C5M Hoses w/o a Crimper.
Features & Benefits
- Zinc Plated Carbon Steel That Meets DOT FMVSS 106-74 Type AII.
Specifications
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Female JIC 37 Flare Swivel - Steel |
| Cut Off (in) – C | 2-3/8 in (6.05 cm) |
| Hose Recommendation | Gates C5C; C5D; C5CHX; C5M |
| Industrial Description | 24C5-24RFJX |
| Inside Diameter | 1-3/8 in (3.51 cm) |
| Length | 3-51/64 in (9.65 cm) |
| Material | Brass |
| Nut Hex (in) – H2 | 3/32 in (0.23 cm) |
| Nut Hex Size | 2-1/4 in (5.72 cm) |
| Stem Hex (in.) | 2-1/4 in (5.72 cm) |
| Thread | 1-7/8 in-12 |
| Type | Field Attach C5CXH; C5C; C5D; C5M Female JIC 37 Flare Swivel |
Interchanges & Equivalent parts:
| 411-24S |
| 4411-24S |
| G34170-2424 |
| 723886395 |
