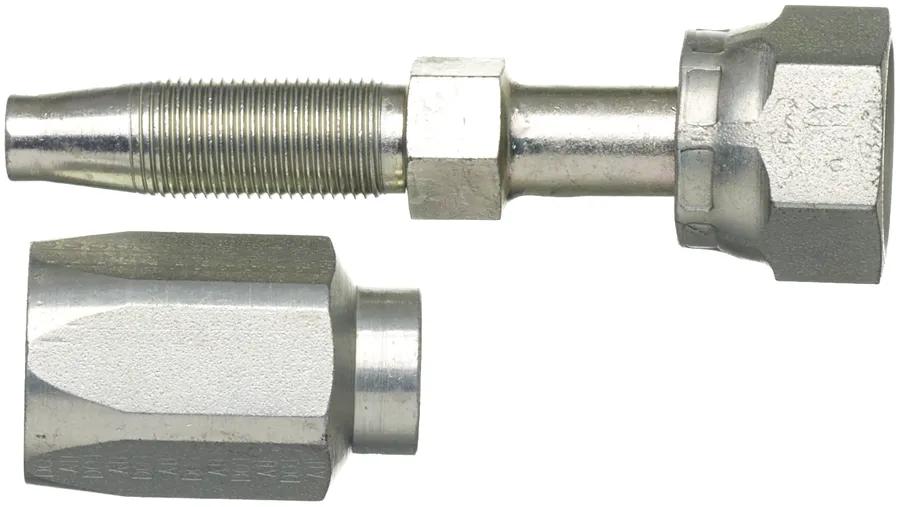

Field Attachable Coupling C5CXH; C5C; C5D; C5M, 8C5X-8RFFORX
#GATG34230-0808
Product Overview
Field Attachable Style Couplings for Making Assemblies Using Gates C5C, C5CXH, C5D, & C5M Hoses w/o a Crimper.
Features & Benefits
- Zinc Plated Carbon Steel That Meets DOT FMVSS 106-74 Type AII.
- SAE J1453 O-Ring Face Seal.
Specifications
| Coupling Description | Field Attach C5CXH, C5C, C5D, C5M Female Flat-Face Swivel - Steel |
| Cut Off (in) – C | 1-49/64 in (4.5 cm) |
| Hose Recommendation | Gates C5C; C5D; C5CHX; C5M |
| Industrial Description | 8C5X-8RFFORX |
| Inside Diameter | 13/32 in (1.04 cm) |
| Length | 2-59/64 in (7.42 cm) |
| Material | Steel |
| Nut Hex (in) – H2 | 1/32 in (0.08 cm) |
| Nut Hex Size | 15/16 in (2.39 cm) |
| Stem Hex (in.) | 13/16 in (2.06 cm) |
| Thread | 13/16 in-16 |
| Type | Field Attach C5CXH; C5C; C5D; C5M Female Flat-Face Swivel |
Interchanges & Equivalent parts:
| G34230-0808 |
| 723701085 |
