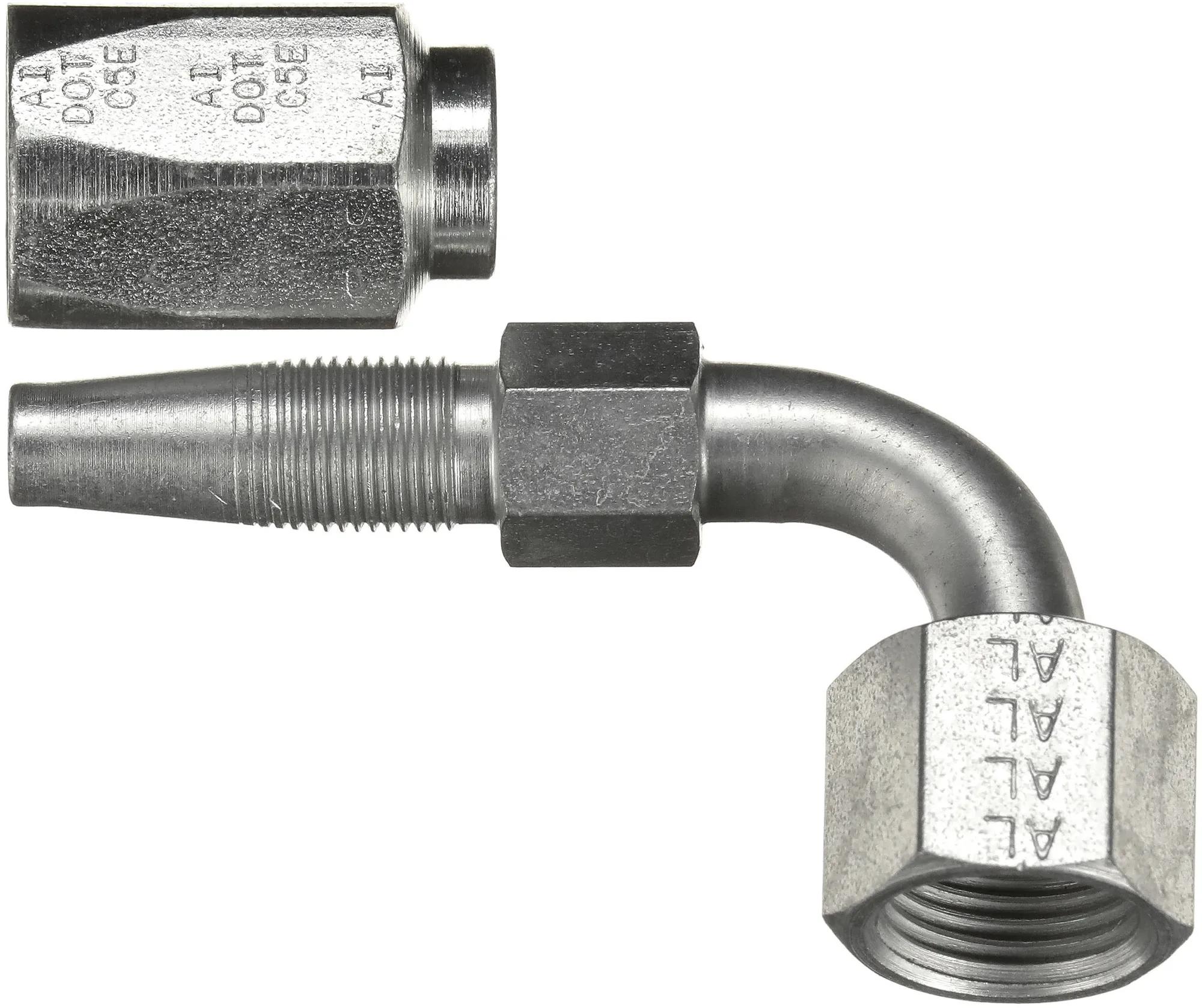

Field Attachable Coupling C5E, 90*, 6C5E-6RFSX90
#GATG35205-0606
Product Overview
Gates Field Attachable C5E Couplings Are Designed to Perform w/ Gates C5E High-Temp Flexline Hose.
Features & Benefits
- Meets DOT FMVSS 106-74 Type A1. No Mandrel Required.
- Manufactured in Zinc-Plated Carbon Steel, These Couplings Are Available in 16 Different Thread Configurations & Are Available in Sizes 1/4 in. to 1 1/4 in. O.D. Sizes.
Specifications
| Coupling Description | Field Attach C5E Female SAE 45 Flare Swivel - 90 Bent Tube - Steel |
| Cut Off (in) – C | 1-23/64 in (3.45 cm) |
| Drop (in.) | 27/32 in (2.13 cm) |
| Hose Recommendation | Gates C5E |
| Industrial Description | 6C5E-6RFSX90 |
| Inside Diameter | 5/16 in (0.79 cm) |
| Length | 2-13/64 in (5.59 cm) |
| Material | Steel |
| Nut Hex (in) – H2 | 1/32 in (0.08 cm) |
| Nut Hex Size | 3/4 in (1.91 cm) |
| Stem Hex (in.) | 1/2 in (1.27 cm) |
| Type | Field Attach C5E Female JIC 37 Flare Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| G35205-0606 |
| 723500315 |
