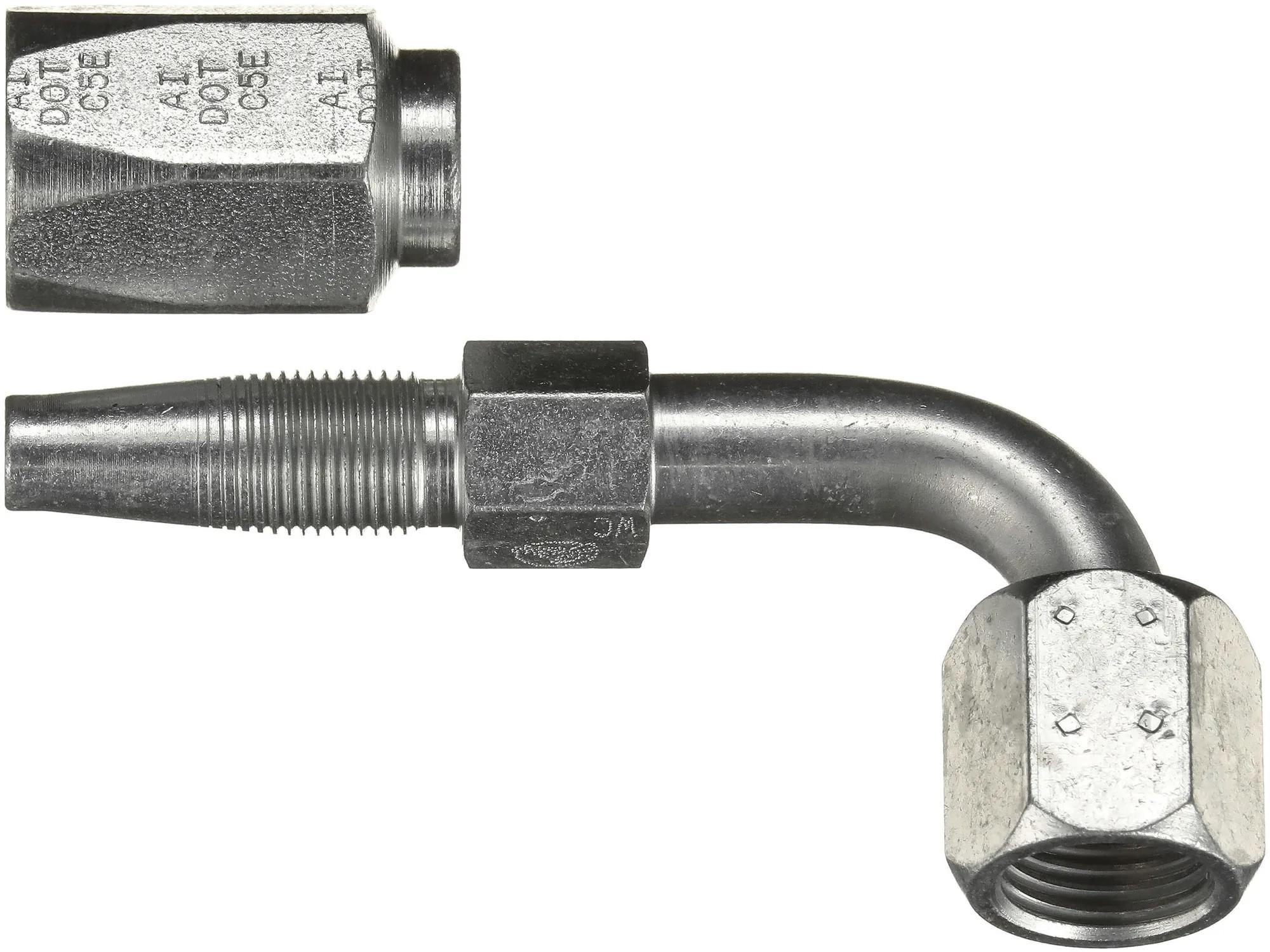

Field Attachable Coupling C5E Flare Swivel, 12C5E-12RFJX90
#GATG35180-1212
Product Overview
Gates Field Attachable C5E Couplings Are Designed to Perform w/ Gates C5E High-Temp Flexline Hose.
Features & Benefits
- Meets DOT FMVSS 106-74 Type A1. No Mandrel Required.
- Manufactured in Zinc-Plated Carbon Steel, These Couplings Are Available in 16 Different Thread Configurations & Are Available in Sizes 1/4 in. to 1 1/4 in. O.D. Sizes.
Specifications
| Coupling Description | Field Attach C5E Female JIC 37 Flare Swivel - 90 Bent Tube - Steel |
| Cut Off (in) – C | 2-7/16 in (6.2 cm) |
| Drop (in.) | 1-13/16 in (4.6 cm) |
| Hose Recommendation | Gates C5E |
| Industrial Description | 12C5E-12RFJX90 |
| Inside Diameter | 5/8 in (1.6 cm) |
| Length | 3-37/64 in (9.09 cm) |
| Material | Steel |
| Nut Hex (in) – H2 | 3/64 in (0.13 cm) |
| Nut Hex Size | 1-1/4 in (3.18 cm) |
| Stem Hex (in.) | 7/8 in (2.24 cm) |
| Thread | 1-1/16 in-12 |
| Type | Field Attach C5E Female JIC 37 Flare Swivel |
Interchanges & Equivalent parts:
| G35180-1212 |
| 723500265 |
