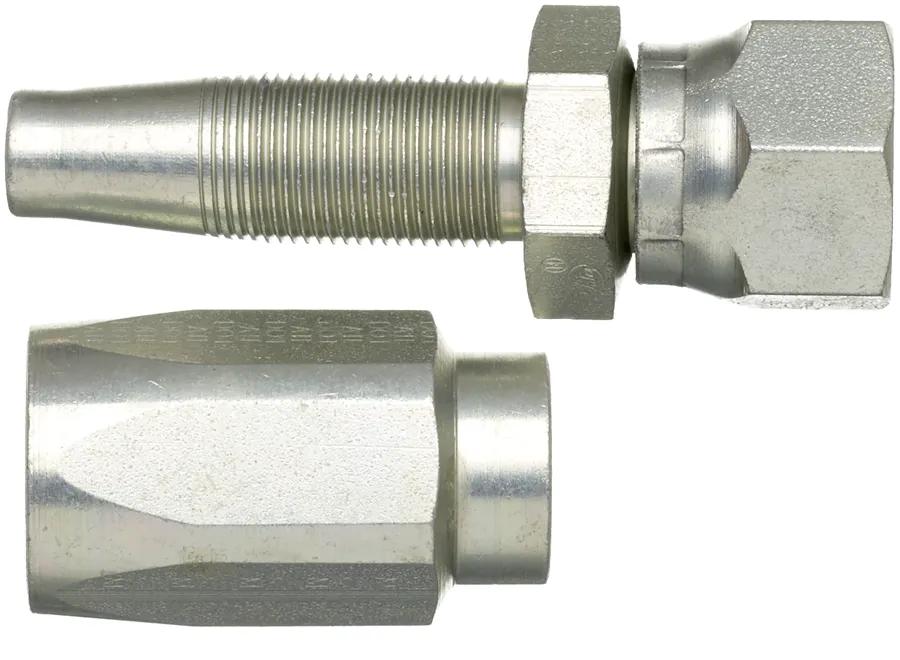

Field Attachable Coupling, Dual Seat Female JIC 37°/SAE 45° Flare Swivel, Steel, 1/2 in Nominal Size

#GATG34210-1010

Product Overview

Field Attachable Style Couplings for making assemblies using Gates C5C, C5CXH, C5D, & C5M hoses without a crimper. These DOT Type A1/AII couplings work with Gates C5E hose to allow easy fabrication of air brake, power steering, transmission oil cooler, and hot oil lines.Field Attachable Coupling, Dual Seat Female JIC 37 deg/SAE 45 deg Flare Swivel, Steel, 0.5 in Nominal, For Air Brake, Power Steering, Transmission Oil Cooler, and Hot Oil Lines without the Need for a Crimper, 3.098 in L

Features & Benefits

Zinc Plated Carbon Steel That Meets DOT FMVSS 106-74 Type AII.

Specifications

Application	Air Brake, Power Steering, Transmission Oil Cooler, and Hot Oil Lines without the Need for a Crimper
Coupling Description	Field Attach C5CXH, C5C, C5D, C5M Dual Seat Female JIC 37/SAE 45 Flare Swivel - Brass
Cut Off (in) – C	1-13/16 in
Finish	Zinc Plated Carbon Steel That Meets DOT FMVSS 106-74 Type AII
Hose Recommendation	Gates C5C; C5D; C5CHX; C5M
Industrial Description	10C5-10RFJSXB
Length	3-3/32 in
Material	Steel
Nut Hex (in) – H2	3/64 in
Nut Hex Size	1-1/16 in
Product Number	723804255
Stem Hex (in.)	1-1/16 in
Type	Field Attach C5CXH; C5C; C5D; C5M Dual Seat Female JIC 37/SAE 45 Flare Swivel
UPC	072053169508
Connection Type	Dual Seat Female JIC 37 deg/SAE 45 deg Flare Swivel
Nominal Size	0.5 in
Product Category	Field Attachable Coupling
Weight	0.44 lb

Interchanges & Equivalent parts:

184001010
18775-1010
187751010
GYH18775-1010
GYH18400-1010
411-10S
4401-10S
4411-10S
G34210-1010
723804255
