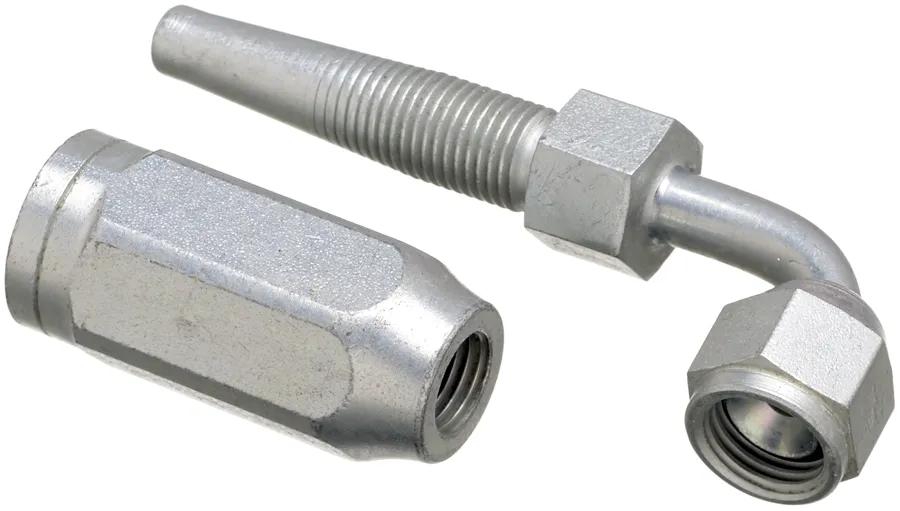

Field Attachable Coupling, Type: T for G1 1, 6C1T-6RFJX90
#GATG27180-0606
Product Overview
Need to Fix a Hydraulic Assembly in a Remote Location w/o Electricity?
Features & Benefits
- Be Sure to Clean the Hose & Finished Assembly as Needed to Avoid System Contamination.
- Field Attachable Type T Couplings for G1 (1-Wire) & G2 (2-Wire) Hose Are a Solution When Crimping is Not an Option.
- A Square Cut on the End of the Hose, Some Oil, a Vice & an Adjustable Wrench Are All ThatÆs Needed for Field Attachable Coupling Installation.
Specifications
| Coupling Description | Field Attachable Type T for G1 1- Wire Hose Female JIC 37 Flare Swivel - 90 Bent Tube |
| Cut Off (in) – C | 2 in (5.08 cm) |
| Drop (in.) | 27/32 in (2.13 cm) |
| Hose Recommendation | Gates G1 1-Wire Braid Medium Pressure Hose |
| Industrial Description | 6C1T-6RFJX90 |
| Inside Diameter | 3/8 in (0.97 cm) |
| Length | 3-9/32 in (8.33 cm) |
| Nut Hex (in) – H2 | 1/32 in (0.08 cm) |
| Nut Hex Size | 11/16 in (1.75 cm) |
| Stem Hex (in.) | 1/2 in (1.27 cm) |
| Type | Field Attachable Coupling, Type: T for G1 1 |
Interchanges & Equivalent parts:
| G27180-0606 |
| 723122665 |
