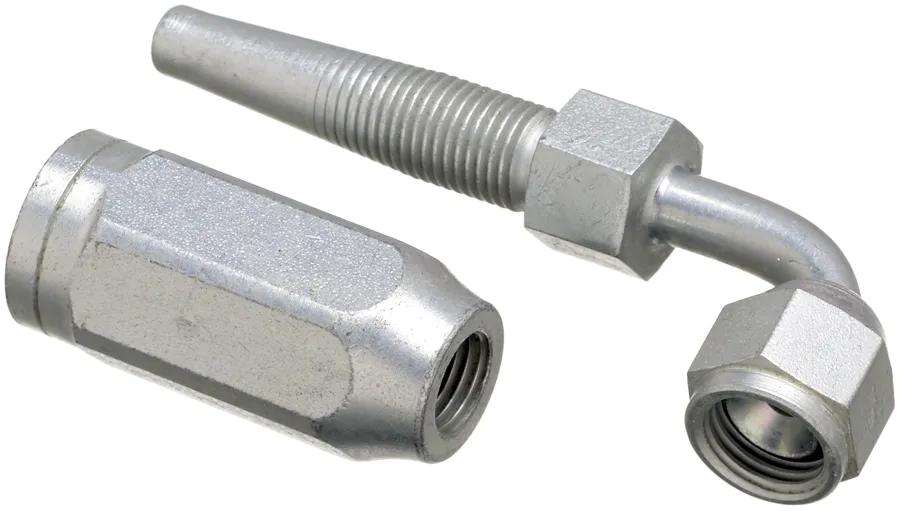

Field Attachable Coupling, Type: T for G1 1, 8C1T-10RFJX90
#GATG27180-0810
Product Overview
Need to Fix a Hydraulic Assembly in a Remote Location w/o Electricity?
Features & Benefits
- Be Sure to Clean the Hose & Finished Assembly as Needed to Avoid System Contamination.
- Field Attachable Type T Couplings for G1 (1-Wire) & G2 (2-Wire) Hose Are a Solution When Crimping is Not an Option.
- A Square Cut on the End of the Hose, Some Oil, a Vice & an Adjustable Wrench Are All ThatÆs Needed for Field Attachable Coupling Installation.
Specifications
| Coupling Description | Field Attachable Type T for G1 1- Wire Hose Female JIC 37 Flare Swivel - 90 Bent Tube |
| Cut Off (in) – C | 2-19/32 in (6.58 cm) |
| Drop (in.) | 1-15/64 in (3.12 cm) |
| Hose Recommendation | Gates G1 1-Wire Braid Medium Pressure Hose |
| Industrial Description | 8C1T-10RFJX90 |
| Inside Diameter | 1/2 in (1.27 cm) |
| Length | 3-59/64 in (9.96 cm) |
| Nut Hex (in) – H2 | 1/32 in (0.08 cm) |
| Nut Hex Size | 1 in (2.54 cm) |
| Stem Hex (in.) | 3/4 in (1.91 cm) |
| Type | Field Attachable Coupling, Type: T for G1 1 |
Interchanges & Equivalent parts:
| G27180-0810 |
| 723122695 |
