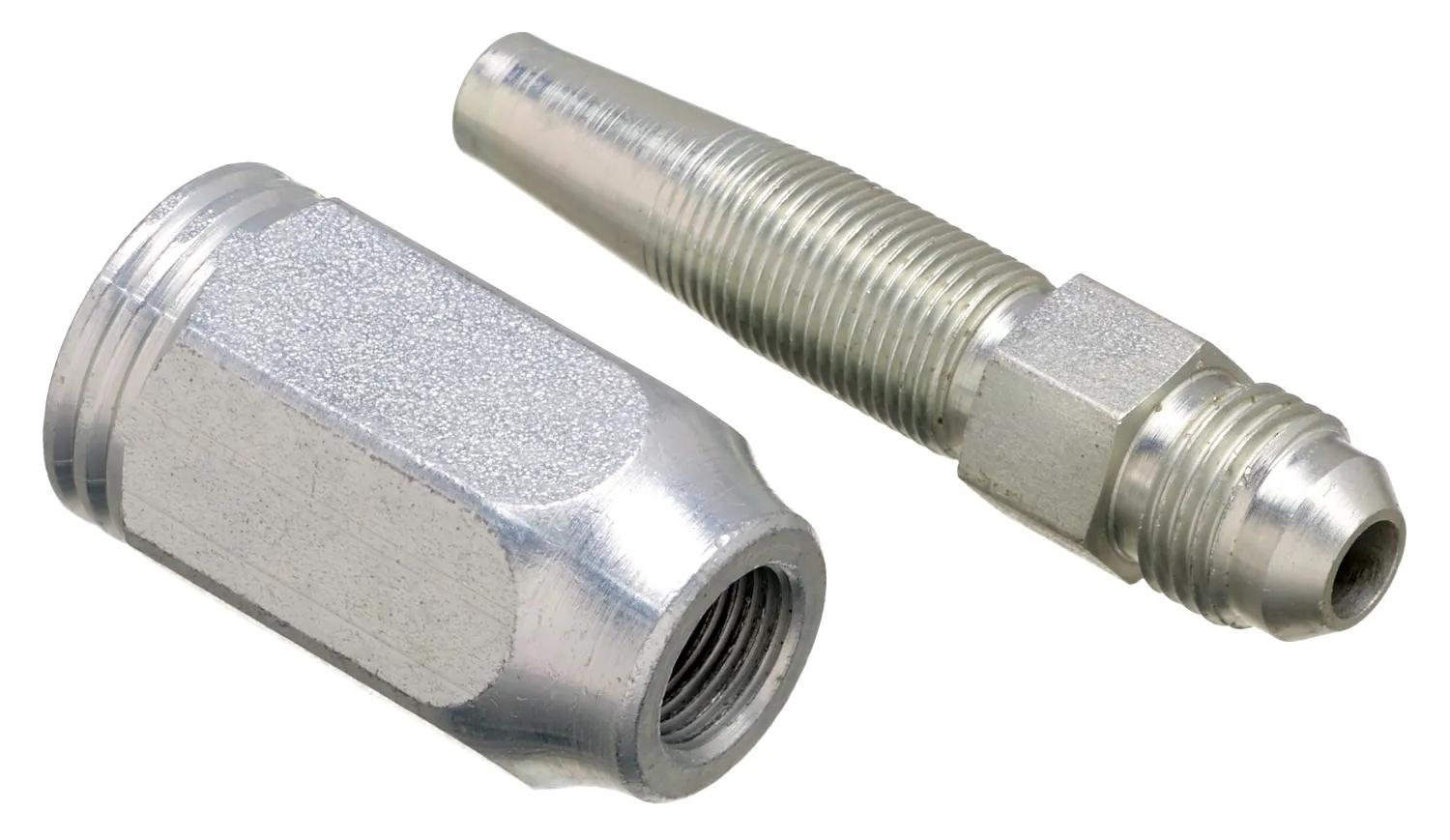

Field Attachable Coupling, Type: T for G2 2, 12C2AT-12RMJ
#GATG28165-1212
Product Overview
Need to Fix a Hydraulic Assembly in a Remote Location w/o Electricity?
Features & Benefits
- Be Sure to Clean the Hose & Finished Assembly as Needed to Avoid System Contamination.
- Available in common threads for 4G2 through 20G2H/24G2H
- A Square Cut on the End of the Hose, Some Oil, a Vice & an Adjustable Wrench Are All ThatÆs Needed for Field Attachable Coupling Installation.
Specifications
| Coupling Description | Field Attachable Type T for G2 2-Wire Hose Male JIC 37 Flare |
| Cut Off (in) – C | 1-63/64 in (5.03 cm) |
| Hose Recommendation | Gates 2-Wire - Global G2; Global G2L PolarFlex (-4 through -24); Hot Oiler |
| Industrial Description | 12C2AT-12RMJ |
| Inside Diameter | 3/4 in (1.91 cm) |
| Length | 3-33/64 in (8.94 cm) |
| Product Number | 723122065 |
| Stem Hex (in.) | 1-1/16 in (2.69 cm) |
| Thread | 1-1/16 in-12 |
| Type | Field Attachable Coupling, Type: T for G2 2 |
Interchanges & Equivalent parts:
| G28165-1212 |
| 723122065 |
