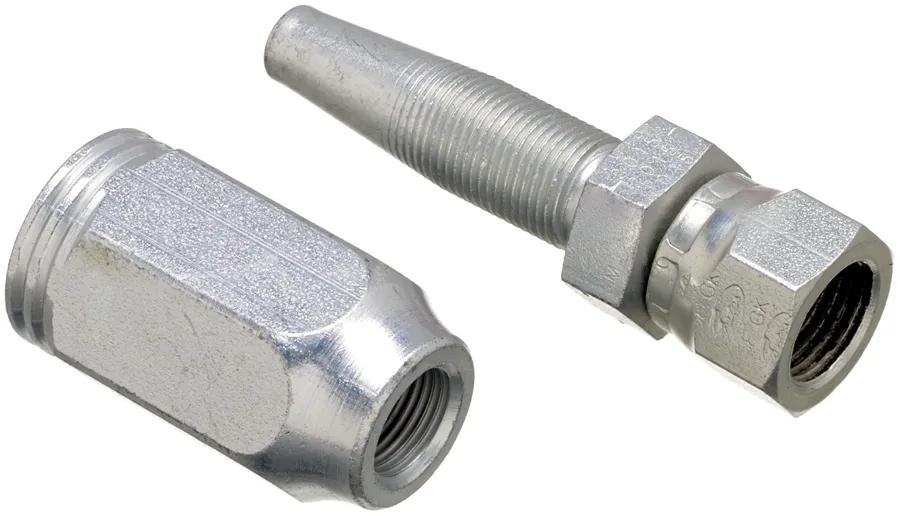

Field Attachable Coupling, Type: T for G2 2, 16C2AT-16RFJX
#GATG28170-1616
Product Overview
Need to Fix a Hydraulic Assembly in a Remote Location w/o Electricity?
Features & Benefits
- Be Sure to Clean the Hose & Finished Assembly as Needed to Avoid System Contamination.
- Field Attachable Type T Couplings for G1 (1-Wire) & G2 (2-Wire) Hose Are a Solution When Crimping is Not an Option.
- A Square Cut on the End of the Hose, Some Oil, a Vice & an Adjustable Wrench Are All ThatÆs Needed for Field Attachable Coupling Installation.
Specifications
| Coupling Description | Field Attachable Type T for G2 2-Wire Hose Female JIC 37 Flare Swivel |
| Cut Off (in) – C | 2-5/32 in (5.49 cm) |
| Hose Recommendation | Gates 2-Wire - Global G2; Global G2L PolarFlex (-4 through -24); Hot Oiler |
| Industrial Description | 16C2AT-16RFJX |
| Inside Diameter | 1 in (2.54 cm) |
| Length | 3-29/32 in (9.93 cm) |
| Nut Hex (in) – H2 | 1/16 in (0.15 cm) |
| Nut Hex Size | 1-1/2 in (3.81 cm) |
| Stem Hex (in.) | 1-3/8 in (3.51 cm) |
| Thread | 1-5/16 in-12 |
| Type | Field Attachable Coupling, Type: T for G2 2 |
Interchanges & Equivalent parts:
| G28170-1616 |
| 723181236 |
