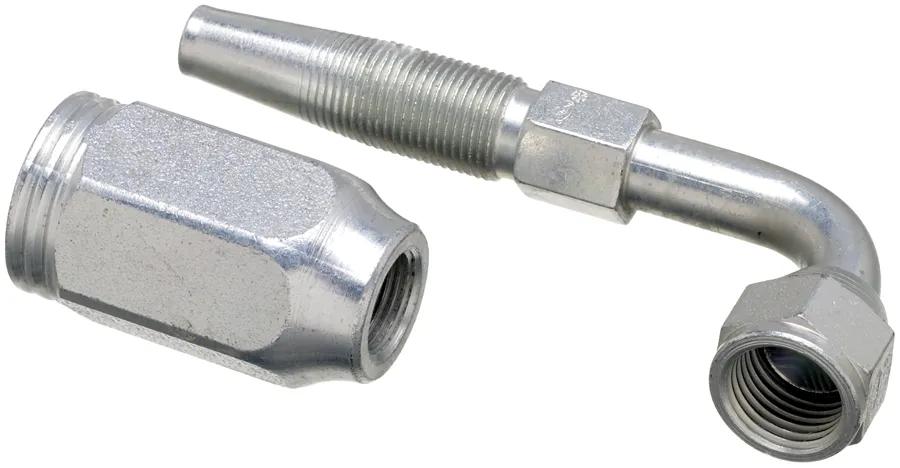

Field Attachable Coupling, Type: T for G2 2, 4C2AT-4RFJX90
#GATG28180-0404
Product Overview
Need to Fix a Hydraulic Assembly in a Remote Location w/o Electricity?
Features & Benefits
- Be Sure to Clean the Hose & Finished Assembly as Needed to Avoid System Contamination.
- Field Attachable Type T Couplings for G1 (1-Wire) & G2 (2-Wire) Hose Are a Solution When Crimping is Not an Option.
- A Square Cut on the End of the Hose, Some Oil, a Vice & an Adjustable Wrench Are All ThatÆs Needed for Field Attachable Coupling Installation.
Specifications
| Coupling Description | Field Attachable Type T for G2 2-Wire Hose Female JIC 37 Flare Swivel - 90 Bent Tube |
| Cut Off (in) – C | 1-5/8 in (4.14 cm) |
| Drop (in.) | 11/16 in (1.75 cm) |
| Hose Recommendation | Gates 2-Wire - Global G2; Global G2L PolarFlex (-4 through -24); Hot Oiler |
| Industrial Description | 4C2AT-4RFJX90 |
| Inside Diameter | 1/4 in (0.64 cm) |
| Length | 2-11/16 in (6.83 cm) |
| Nut Hex (in) – H2 | 1/64 in (0.05 cm) |
| Nut Hex Size | 9/16 in (1.42 cm) |
| Stem Hex (in.) | 3/8 in (0.97 cm) |
| Type | Field Attachable Coupling, Type: T for G2 2 |
Interchanges & Equivalent parts:
| G28180-0404 |
| 723122755 |
